Cluster
PSZ2G002.82+39.23
Emission Measure Profiles

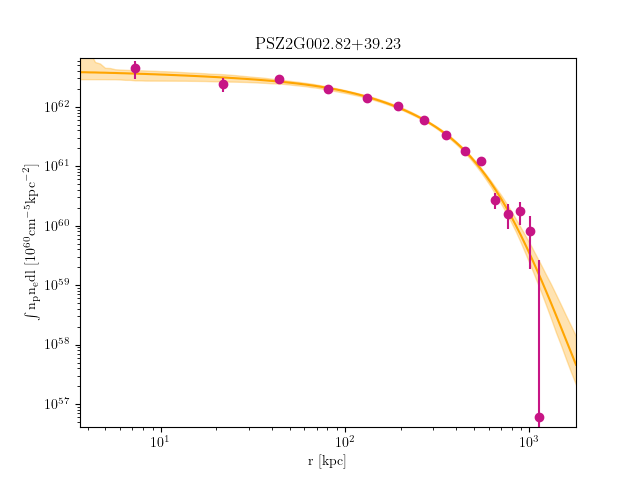

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G002.82+39.23_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.095216043864214 | 10.32959477 | 0.2517464475 | 6.102822220000268e-05 | 4.302349675000188e-05 | 8.327704365000365e-05 |
| 11.095216043864214 | 22.051700248357456 | 10.32959477 | 0.2517464475 | 9.627391381000261e-05 | 7.299531952000198e-05 | 0.00012378392750000337 |
| 22.051700248357456 | 44.653143075177454 | 10.32959477 | 0.2517464475 | 0.0004911307135000271 | 0.00043615260980002415 | 0.0005503902152000304 |
| 44.653143075177454 | 78.03879779398169 | 10.3580243 | 0.2514579283 | 0.0009128443034000628 | 0.0008361868630000574 | 0.0009937801623000682 |
| 78.03879779398169 | 121.34791767442765 | 11.2984745 | 0.225176509 | 0.001368353764000078 | 0.0012729451470000724 | 0.0014680630370000835 |
| 121.34791767442765 | 173.71975598617266 | 11.55846206 | 0.1981502126 | 0.0017512867497966442 | 0.0016407595410786627 | 0.0018661797571708836 |
| 173.71975598617266 | 234.29356599887433 | 11.43632813 | 0.1619944819 | 0.0016153307924613141 | 0.0014955663030000396 | 0.001740369483924022 |
| 234.29356599887433 | 302.20860098219 | 11.08124402 | 0.09199722879 | 0.0013468103031209857 | 0.0012338482711157248 | 0.001464970435498949 |
| 302.20860098219 | 376.604114205777 | 10.57341094 | 0.03550770185 | 0.0010261053092431168 | 0.0009188482612579052 | 0.0011388029051764826 |
| 376.604114205777 | 456.61935893929325 | 9.971814059 | 0.006709441499 | 0.0009217775586064186 | 0.0008099112659579784 | 0.0010396120269568208 |
| 456.61935893929325 | 541.3935884523958 | 9.326966411 | 1 | 0.0002532684927590161 | 0.00017965267872598674 | 0.0003318648489359779 |
| 541.3935884523958 | 630.0660560147419 | 8.922947583 | 1 | 0.00018376334080790542 | 0.00010537832942299041 | 0.0002675417112602391 |
| 630.0660560147419 | 721.7760148959895 | 8.922947583 | 1 | 0.00023919672056135804 | 0.00014524637294252064 | 0.0003394076588790044 |
| 721.7760148959895 | 815.6627183657963 | 8.922947583 | 1 | 0.0001291244355795552 | 3.3214299252421424e-05 | 0.00023175531167602393 |
| 815.6627183657963 | 910.8654196938187 | 8.922947583 | 1 | 1.1169662059362981e-07 | 0.0 | 9.464751031812618e-05 |
Temperature Profiles

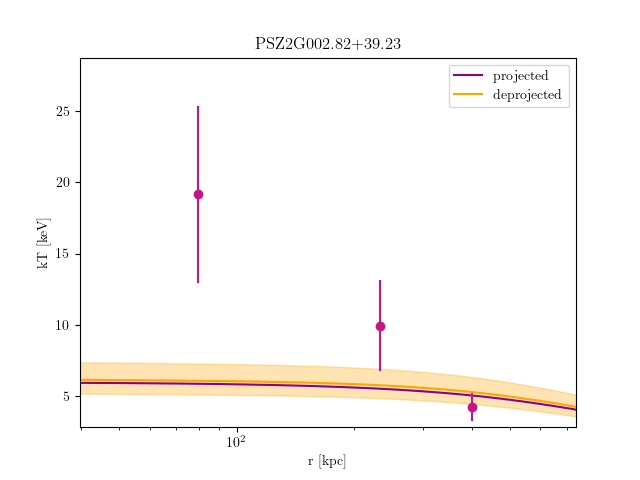

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G002.82+39.23_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 121.34791767442469 | 19.16095339 | 12.33173447 | 0 | 0.1348618999 | 0 | 0.7927172369 | 0.003043641283 | 0.002759005067 | 0.003307581958 |
| 121.34791767442469 | 234.29356599886862 | 9.951111469 | 7.643509712 | 13.88071172 | 0.265243725 | 0 | 0.6311750152 | 0.003354430815 | 0.003092324909 | 0.003609502147 |
| 234.29356599886862 | 376.60411420576787 | 4.256377592 | 3.697504294 | 5.080655849 | 0.0002445674975 | 0 | 0.1043473554 | 0.00290099363 | 0.002585735449 | 0.003105940299 |
