Cluster
PSZ2G003.91-42.03
Emission Measure Profiles

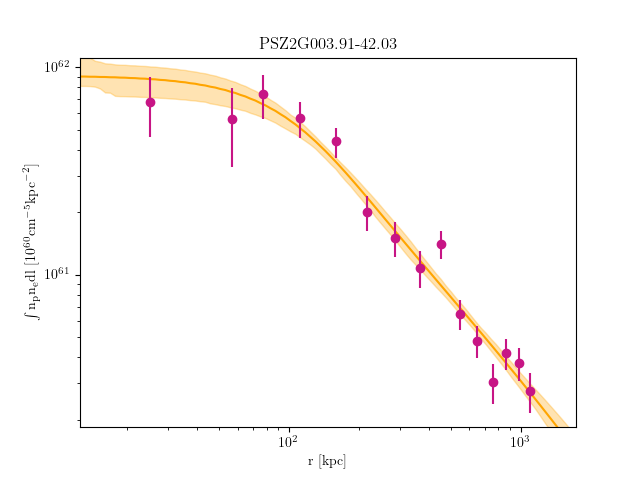

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G003.91-42.03_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 38.46667588207512 | 2.575073506 | 0.03522495126 | 0.00011708144450000501 | 8.388200698000359e-05 | 0.0001565196466000067 |
| 38.46667588207512 | 48.802479035626575 | 2.575073506 | 0.03522495126 | 5.8864114050003136e-05 | 3.7699632690002005e-05 | 8.524893604000453e-05 |
| 48.802479035626575 | 70.12355792226964 | 2.575073506 | 0.03522495126 | 0.0002188930927000178 | 0.00017263870270001403 | 0.00027142633980002206 |
| 70.12355792226964 | 101.61792681703653 | 2.575073506 | 0.03522495126 | 0.0003564522393000187 | 0.0002963486971000155 | 0.0004228303194000222 |
| 101.61792681703653 | 142.47359999495953 | 2.620168808 | 0.03549023657 | 0.0005095021767000195 | 0.0004410474947000169 | 0.0005835818048000223 |
| 142.47359999495953 | 191.87859173107069 | 2.622868116 | 0.03237118186 | 0.00038412278870002064 | 0.0003208709737000172 | 0.0004528659685000243 |
| 191.87859173107069 | 249.02091630040232 | 2.568979873 | 0.0295299984 | 0.000441996024900006 | 0.00036838563420000506 | 0.0005214738273000072 |
| 249.02091630040232 | 313.0885879779866 | 2.475236912 | 0.0250642584 | 0.00045309834610002085 | 0.00037466735720001725 | 0.0005374100076000248 |
| 313.0885879779866 | 383.2696210388557 | 2.353802778 | 0.01463792569 | 0.0007966197961000363 | 0.0006970696570000318 | 0.0009020047604000412 |
| 383.2696210388557 | 458.7520297580421 | 2.215650434 | 1 | 0.00047801998880002286 | 0.00041260673920001976 | 0.0005473343505000263 |
| 458.7520297580421 | 538.7238284105777 | 2.070657471 | 1 | 0.00044640081021314653 | 0.00037817848914884075 | 0.0005187890939615141 |
| 538.7238284105777 | 622.3730312714945 | 1.926763592 | 1 | 0.00034288907346397484 | 0.00027615390815453384 | 0.0004140094697128626 |
| 622.3730312714945 | 708.8876526158252 | 1.789578676 | 1 | 0.0005602805715446518 | 0.00047725392196167526 | 0.0006481031108458673 |
| 708.8876526158252 | 797.4557067186022 | 1.662346327 | 1 | 0.0005839277149993227 | 0.0004940872232562606 | 0.0006790218668606742 |
| 797.4557067186022 | 887.2652078548568 | 1.611607981 | 1 | 0.0004849291325258499 | 0.00039153092100603935 | 0.0005841109907258294 |
Temperature Profiles

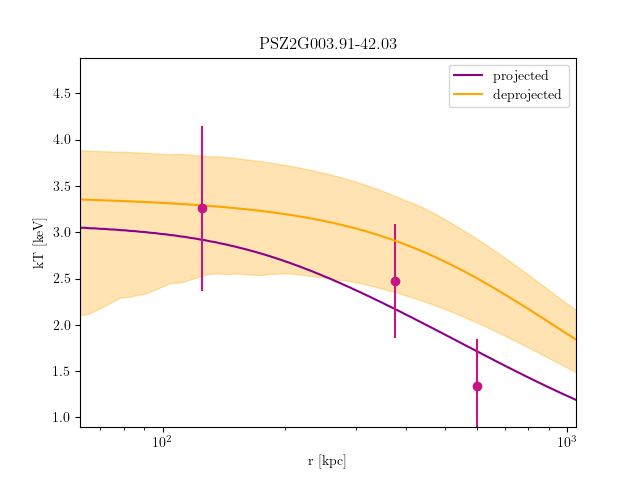

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G003.91-42.03_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 191.878591731066 | 3.256760419 | 2.661193175 | 4.212974225 | 0.01526577528 | 0 | 0.3534743162 | 0.001456017379 | 0.001216186858 | 0.001665011913 |
| 191.878591731066 | 383.2696210388463 | 2.469841791 | 2.000756977 | 2.871162251 | 3.82410653e-07 | 0 | 0.05496550717 | 0.001698114621 | 0.001462640832 | 0.00186147658 |
| 383.2696210388463 | 538.7238284105646 | 1.342002323 | 1.098051035 | 1.618827337 | 5.124499164e-12 | 0 | 0.01115399556 | 0.002533562322 | 0.002056961493 | 0.002998853125 |
