Cluster
PSZ2G018.84+22.43
Emission Measure Profiles

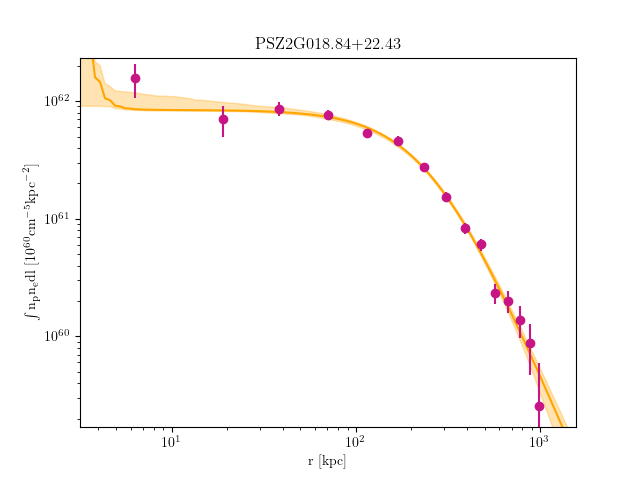

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G018.84+22.43_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 15.20178604763258 | 7.617907512 | 0.6341129007 | 4.497595174000087e-05 | 3.224579627000063e-05 | 6.046388776000117e-05 |
| 15.20178604763258 | 30.213492719453605 | 7.617907512 | 0.6341129007 | 5.935755259000349e-05 | 4.365070937000257e-05 | 7.795907563000458e-05 |
| 30.213492719453605 | 61.1801991686825 | 7.617907512 | 0.6341129007 | 0.00030466630910000827 | 0.00026912501660000733 | 0.0003430121749000093 |
| 61.1801991686825 | 106.92257841474165 | 7.640118756 | 0.6307786686 | 0.0007284582549000374 | 0.0006723796339000345 | 0.0007873283287000404 |
| 106.92257841474165 | 166.26130347705356 | 8.351874953 | 0.5516509905 | 0.001076788458000055 | 0.0010044800070000512 | 0.0011520928050000588 |
| 166.26130347705356 | 238.0170473750403 | 8.558324881 | 0.4863513901 | 0.0016706131300000613 | 0.0015753929740000578 | 0.001769140649000065 |
| 238.0170473750403 | 321.0104831281246 | 8.477355896 | 0.3994185056 | 0.0015829285014581644 | 0.001481231268734132 | 0.0016883494616563262 |
| 321.0104831281246 | 414.06228375572863 | 8.214139062 | 0.3507668865 | 0.0012987374670836084 | 0.0012019608421026554 | 0.0013991852330990657 |
| 414.06228375572863 | 515.9931222772748 | 7.843312607 | 0.3084797286 | 0.0009854424335523037 | 0.0008960381333368037 | 0.001078378159221088 |
| 515.9931222772748 | 625.6236717121858 | 7.400001482 | 0.2604143762 | 0.0009425794600512649 | 0.0008500306109229359 | 0.0010387128059253603 |
| 625.6236717121858 | 741.7746050798835 | 6.921471137 | 0.2316877482 | 0.000463244570621053 | 0.00037803483975317153 | 0.0005525413692153129 |
| 741.7746050798835 | 863.2665953997905 | 6.621655188 | 0.2083625361 | 0.0004850297545808587 | 0.00038727062866294196 | 0.0005874891479022795 |
| 863.2665953997905 | 988.9203156913294 | 6.621655188 | 0.2083625361 | 0.0004023027351626673 | 0.0002883946028330857 | 0.0005225000398575586 |
| 988.9203156913294 | 1117.5564389739225 | 6.621655188 | 0.2083625361 | 0.0002956383802732116 | 0.00016352289747691831 | 0.00043591662940542367 |
| 1117.5564389739225 | 1247.995638266992 | 6.621655188 | 0.2083625361 | 9.735752993285335e-05 | 0.0 | 0.0002577058674098367 |
Temperature Profiles

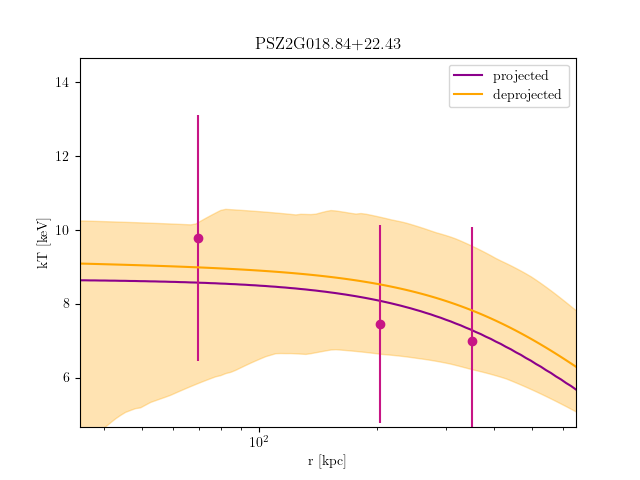

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G018.84+22.43_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 166.26130347704952 | 9.774428048 | 7.752863602 | 12.78515443 | 0.6711102379 | 0.3189925585 | 1.162222132 | 0.002154319852 | 0.001966728166 | 0.002332396988 |
| 166.26130347704952 | 321.0104831281168 | 7.447020594 | 6.329077034 | 9.463264891 | 0.2166644727 | 0.01164917169 | 0.4823463221 | 0.003468617334 | 0.003210970391 | 0.003717925304 |
| 321.0104831281168 | 515.9931222772622 | 6.982599082 | 5.400086493 | 9.773946392 | 0.4073342318 | 0.06552230965 | 0.9008611532 | 0.002265382222 | 0.002005633602 | 0.002534270272 |
