Cluster
PSZ2G021.10+33.24
Emission Measure Profiles

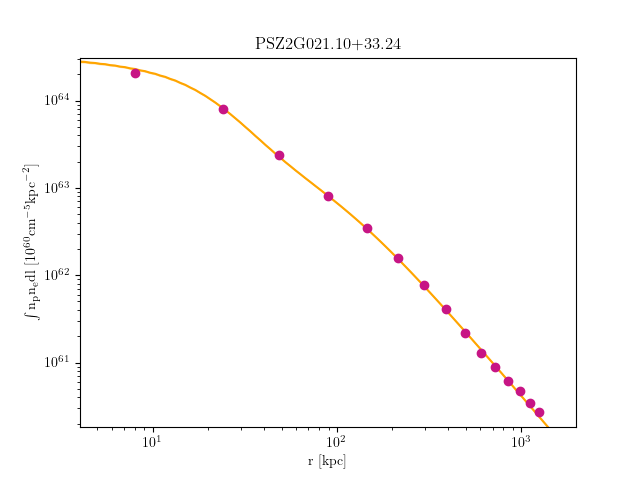

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G021.10+33.24_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 12.422107099756685 | 3.512027294 | 0.6072548773 | 0.0036348579540001792 | 0.003612693619000178 | 0.0036571576450001803 |
| 12.422107099756685 | 24.688891242303757 | 4.530593062 | 0.9258694256 | 0.00419552831600011 | 0.00417316326800011 | 0.0042180127030001105 |
| 24.688891242303757 | 49.993269480080194 | 6.728782735 | 1.129456514 | 0.005103666124000275 | 0.005079756429000274 | 0.005127687821000277 |
| 49.993269480080194 | 87.37155728204043 | 8.496235275 | 1.306879838 | 0.004746541116000159 | 0.004723726431000158 | 0.004769465077000159 |
| 87.37155728204043 | 135.860070117139 | 9.322214383 | 1.44824732 | 0.004324157550934131 | 0.004302169029351359 | 0.0043462568631583735 |
| 135.860070117139 | 194.4951234543301 | 9.840347549 | 1.562362577 | 0.0034276330105795817 | 0.003407857462165931 | 0.00344752026739804 |
| 194.4951234543301 | 262.3130327625684 | 10.21822849 | 1.656719179 | 0.0027340502905892367 | 0.002715021565718626 | 0.0027532059983616103 |
| 262.3130327625684 | 338.3501135108082 | 10.45715875 | 1.736424857 | 0.0021340717231052267 | 0.002116366501474958 | 0.002151912951934324 |
| 338.3501135108082 | 421.6426811680039 | 10.59164419 | 1.804925275 | 0.0015851906351788147 | 0.0015700616318402168 | 0.0016004461723628815 |
| 421.6426811680039 | 511.22705120311025 | 10.58690311 | 1.86459341 | 0.0012348405821537665 | 0.0012210932419175152 | 0.0012487124480405015 |
| 511.22705120311025 | 606.1395390850813 | 10.52940699 | 1.917136118 | 0.0010611981440600553 | 0.001048015362558254 | 0.0010745051939691891 |
| 606.1395390850813 | 705.4164602828714 | 10.41930376 | 1.963786072 | 0.000915543269145681 | 0.0009026609826561086 | 0.000928552137012719 |
| 705.4164602828714 | 808.0941302654355 | 10.30957214 | 2.005486445 | 0.0008421865735999844 | 0.0008287606129128734 | 0.0008557502128813421 |
| 808.0941302654355 | 913.208864501728 | 10.14256625 | 2.042936417 | 0.0007062669182138605 | 0.0006915236121140925 | 0.0007211890496956923 |
| 913.208864501728 | 1019.7969784607027 | 10.01640448 | 2.076708331 | 0.0006385343282999657 | 0.0006222018031817405 | 0.0006550886633035441 |
Temperature Profiles

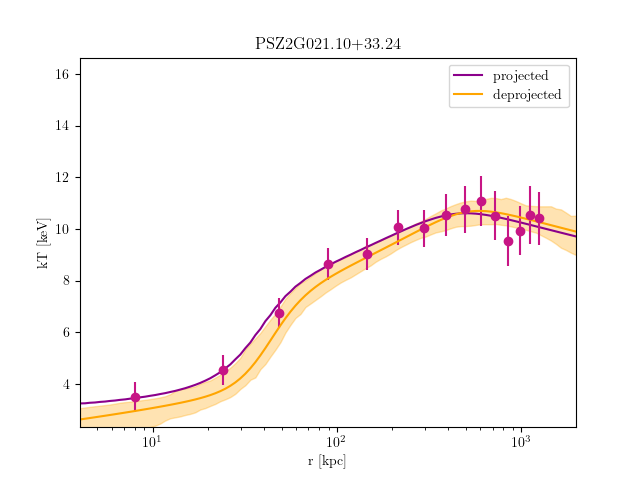

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G021.10+33.24_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 12.422107099756383 | 3.486000621 | 3.439610167 | 3.532626464 | 0.6661793813 | 0.627677324 | 0.7062448791 | 0.003565729158 | 0.003512474286 | 0.003618963172 |
| 12.422107099756383 | 24.688891242303157 | 4.549697931 | 4.486373108 | 4.616423401 | 0.5404502727 | 0.5076332711 | 0.5744140285 | 0.004646787919 | 0.004595859168 | 0.004697446165 |
| 24.688891242303157 | 49.99326948007898 | 6.738469439 | 6.617626442 | 6.863719451 | 0.4472620369 | 0.4161461856 | 0.479355375 | 0.005847640556 | 0.005799186032 | 0.005895701941 |
| 49.99326948007898 | 87.37155728203831 | 8.643728523 | 8.439981685 | 8.8657687 | 0.3471987219 | 0.3118799053 | 0.3835710345 | 0.005599951648 | 0.005553725387 | 0.005645753351 |
| 87.37155728203831 | 135.86007011713568 | 9.03374601 | 8.801539764 | 9.267531269 | 0.3633946308 | 0.3241387349 | 0.4039281588 | 0.005149088166 | 0.005103524082 | 0.005194186443 |
| 135.86007011713568 | 194.49512345432535 | 10.06020549 | 9.731132187 | 10.43122052 | 0.3697538502 | 0.3197316461 | 0.421528961 | 0.004109930097 | 0.004066849702 | 0.004152510083 |
| 194.49512345432535 | 262.313032762562 | 10.01528727 | 9.616257238 | 10.45278655 | 0.3657336707 | 0.30521314 | 0.42884409 | 0.003319798173 | 0.003277611809 | 0.003361526555 |
| 262.313032762562 | 338.3501135108 | 10.53919149 | 9.995218806 | 11.14154261 | 0.5286174771 | 0.4430685362 | 0.6188427141 | 0.00254186692 | 0.002499626989 | 0.002583602874 |
| 338.3501135108 | 421.6426811679936 | 10.75879157 | 10.14771125 | 11.54126259 | 0.6529381736 | 0.5411596567 | 0.7708560654 | 0.001868552538 | 0.001830612674 | 0.001907675375 |
| 421.6426811679936 | 511.22705120309774 | 11.08542796 | 10.33353857 | 11.88469853 | 1.226088011 | 1.051828791 | 1.417536852 | 0.001341853585 | 0.001304696173 | 0.001378697728 |
| 511.22705120309774 | 606.1395390850664 | 10.50599226 | 9.783347189 | 11.29755654 | 1.615747514 | 1.393153457 | 1.86392598 | 0.001098407839 | 0.001062023375 | 0.00113428759 |
| 606.1395390850664 | 705.4164602828542 | 9.536553696 | 8.918827001 | 10.49045242 | 1.738533799 | 1.487420304 | 2.03625002 | 0.0009236146521 | 0.0008875686754 | 0.0009592447738 |
| 705.4164602828542 | 808.0941302654157 | 9.933901796 | 9.191263283 | 10.73317776 | 4.011830543 | 3.450720913 | 4.665264762 | 0.000655354255 | 0.0006137769042 | 0.0006962836301 |
| 808.0941302654157 | 913.2088645017058 | 10.52958418 | 9.506486472 | 11.45832441 | 4.798495263 | 3.892769405 | 0 | 0.0005236773553 | 0.000504029657 | 0.0005711657076 |
| 913.2088645017058 | 1019.7969784606778 | 10.41020532 | 9.63082668 | 11.31029149 | 5 | 4.906070448 | 0 | 0.0004715999285 | 0.000455636189 | 0.0004884854473 |
