Cluster
PSZ2G024.44+22.76
Emission Measure Profiles

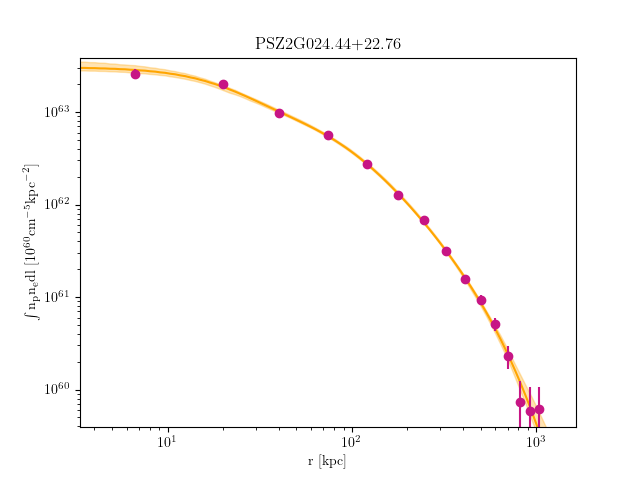

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G024.44+22.76_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.612052794544779 | 4.083617994 | 0.6479465243 | 0.00027122019270001515 | 0.00024085170520001344 | 0.000304035701400017 |
| 9.612052794544779 | 19.103918856443144 | 4.083617994 | 0.6479465243 | 0.0006145164577000262 | 0.0005663162577000241 | 0.0006653614974000283 |
| 19.103918856443144 | 38.68409294457359 | 4.667934816 | 0.5538440617 | 0.001251358210993285 | 0.0011852848571335007 | 0.0013198113022720877 |
| 38.68409294457359 | 67.60688944253394 | 5.647625546 | 0.4505922161 | 0.001956859856742057 | 0.0018659397572970402 | 0.0020506247799837586 |
| 67.60688944253394 | 105.12662273392203 | 6.158769155 | 0.3755870069 | 0.002042920278015572 | 0.001938504574903262 | 0.0021508744045287322 |
| 105.12662273392203 | 150.49760720233556 | 6.302356527 | 0.3154262539 | 0.0016781401181420767 | 0.001585759308455104 | 0.0017737618540695466 |
| 150.49760720233556 | 202.97415723137246 | 6.237679231 | 0.2572362183 | 0.0014189292681021394 | 0.0013388608094527478 | 0.0015017252400087956 |
| 202.97415723137246 | 261.8105872046305 | 6.045524419 | 0.2024857895 | 0.0009880390519070215 | 0.0009182199431013215 | 0.0010605792502049727 |
| 261.8105872046305 | 326.26121150570737 | 5.769130037 | 0.1680247874 | 0.0006679656700665827 | 0.000606716369150367 | 0.0007320243586280171 |
| 326.26121150570737 | 395.58034451820123 | 5.441389787 | 0.124971695 | 0.0005275090445932293 | 0.0004663296041355958 | 0.0005917362166382414 |
| 395.58034451820123 | 469.0223006257095 | 5.090005285 | 0.09670114929 | 0.00036865109410736584 | 0.0003108401571459532 | 0.00042959435361807747 |
| 469.0223006257095 | 545.8413942118301 | 4.891984487 | 0.0823203049 | 0.00020527788987774066 | 0.000149077084736163 | 0.0002649306157206296 |
| 545.8413942118301 | 625.2919396601608 | 4.891984487 | 0.0823203049 | 7.736129511414153e-05 | 2.5399853525678983e-05 | 0.0001328480884655036 |
| 625.2919396601608 | 706.6282513543 | 4.891984487 | 0.0823203049 | 7.218642181476942e-05 | 1.5054454250534249e-05 | 0.00013308468284904305 |
| 706.6282513543 | 789.1046436778444 | 4.891984487 | 0.0823203049 | 8.654611110130656e-05 | 2.4399546022522337e-05 | 0.0001524777806246405 |
Temperature Profiles

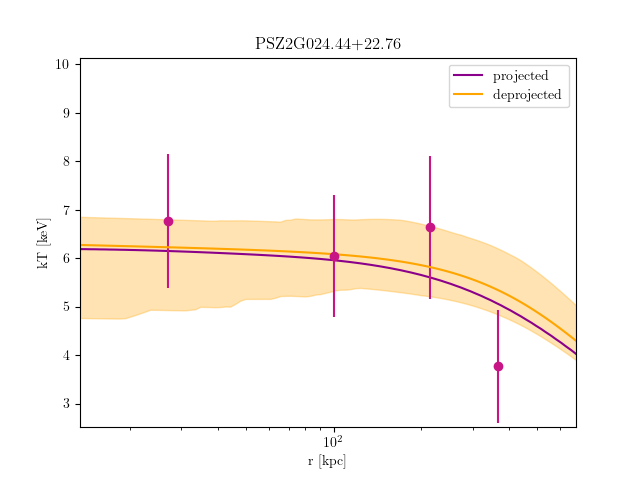

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G024.44+22.76_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 38.68409294457265 | 6.75944503 | 5.84179251 | 7.877883899 | 0.6744165041 | 0.4445263819 | 0.9663640826 | 0.002246997311 | 0.002081853258 | 0.002413160449 |
| 38.68409294457265 | 105.12662273391946 | 6.04472429 | 5.327194125 | 7.028284057 | 0.2024793737 | 0.07786852736 | 0.3514490503 | 0.004484538076 | 0.00424086959 | 0.004737019891 |
| 105.12662273391946 | 202.97415723136749 | 6.635753795 | 5.731243825 | 8.017411289 | 0.2615054297 | 0.0955800025 | 0.467431952 | 0.0030147885 | 0.002817393352 | 0.003214584817 |
| 202.97415723136749 | 326.2612115056994 | 3.766365866 | 3.156329371 | 4.572808739 | 0.2041113399 | 0 | 0.5014291832 | 0.001844085529 | 0.001623330037 | 0.00210752138 |
