Cluster
PSZ2G026.73-38.94

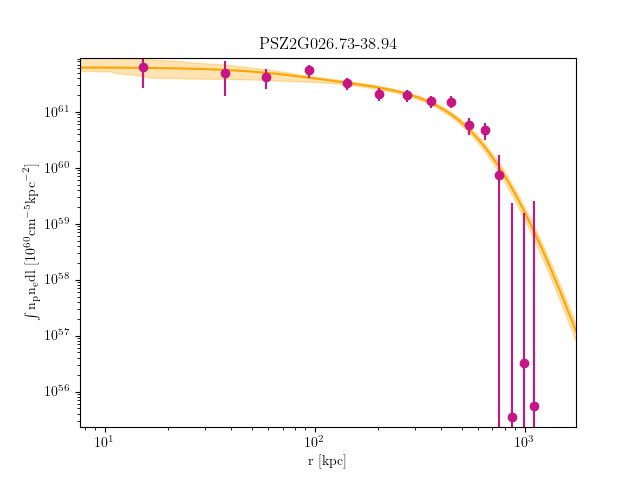

Emission Measure Profiles
Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G026.73-38.94_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 18.56302824962519 | 2.724087113 | 0.1181833013 | 2.1695027730001504e-05 | 1.1727442730000813e-05 | 3.520572542000244e-05 |
| 18.56302824962519 | 27.018986510260568 | 2.724087113 | 0.1181833013 | 1.9506626740000873e-05 | 9.765907237000437e-06 | 3.299204551000148e-05 |
| 27.018986510260568 | 44.46225148529244 | 2.724087113 | 0.1181833013 | 5.3508091210002364e-05 | 3.5949396350001584e-05 | 7.475137093000331e-05 |
| 44.46225148529244 | 70.22851897924083 | 2.782450813 | 0.1007007854 | 0.00016441247140000362 | 0.00013257050970000292 | 0.00019998587510000441 |
| 70.22851897924083 | 103.6534847966258 | 2.950312612 | 0.09518879362 | 0.0001921728887000082 | 0.00015599831330000664 | 0.0002320802275000099 |
| 103.6534847966258 | 144.07284474196726 | 3.006674595 | 0.08674390898 | 0.0002144457301000088 | 0.00017454867930000718 | 0.0002580118514000106 |
| 144.07284474196726 | 190.82229461978542 | 2.965628667 | 0.07043653585 | 0.0003122465133474343 | 0.00026205439499942944 | 0.00036634097344316754 |
| 190.82229461978542 | 243.2375302346001 | 2.879162944 | 0.04598111499 | 0.00036173492124160904 | 0.00029708029636223984 | 0.0004315406314134293 |
| 243.2375302346001 | 300.65424739093135 | 2.760350311 | 0.0332452032 | 0.0004807501908989424 | 0.00039804101819600825 | 0.0005693947191899264 |
| 300.65424739093135 | 362.4081418932995 | 2.616015461 | 0.03138990207 | 0.00024141455446569123 | 0.00017363956119946687 | 0.00031477789478637246 |
| 362.4081418932995 | 427.8349095462242 | 2.457370084 | 0.02875778251 | 0.0002498219821910303 | 0.00017470779011041326 | 0.0003306170985892003 |
| 427.8349095462242 | 496.27024615422545 | 2.34453386 | 0.02197488598 | 4.6700403265328496e-05 | 0.0 | 0.00012343207075210535 |
| 496.27024615422545 | 567.0498475218235 | 2.34453386 | 0.02197488598 | 2.622129028953138e-09 | 0.0 | 3.502866390504862e-05 |
| 567.0498475218235 | 639.5094094535388 | 2.34453386 | 0.02197488598 | 2.842866380582732e-08 | 0.0 | 2.7622690635600644e-05 |
| 639.5094094535388 | 712.9846277538902 | 2.34453386 | 0.02197488598 | 5.58762477267412e-09 | 0.0 | 5.1547452894845995e-05 |

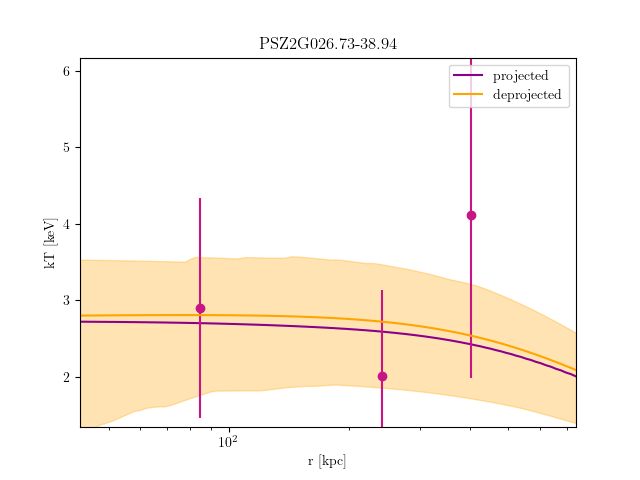

Temperature Profiles
Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G026.73-38.94_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 103.65348479662329 | 2.904516034 | 2.137206487 | 4.173266212 | 1.030582901e-05 | 0 | 0.4261599238 | 0.000470269984 | 0.0003668178907 | 0.0005857908295 |
| 103.65348479662329 | 190.8222946197808 | 2.012003295 | 1.627454464 | 2.578404717 | 1.859552724e-06 | 0 | 0.2349476443 | 0.0007098962344 | 0.0005410734367 | 0.0008748243459 |
| 190.8222946197808 | 300.65424739092407 | 4.11683136 | 2.475791405 | 6.210657317 | 1.947666255e-12 | 0 | 0.2716396675 | 0.0007166024833 | 0.0005970900603 | 0.0008094400053 |
