Cluster
PSZ2G028.63+50.15
Emission Measure Profiles

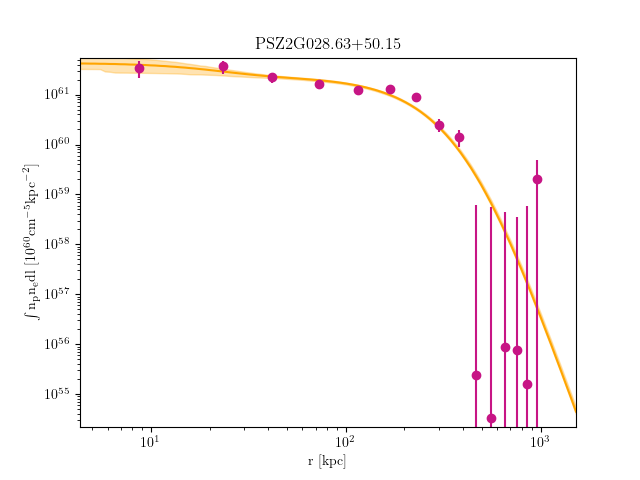

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G028.63+50.15_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 20.62733992473471 | 2.799815639 | 0.3156431095 | 1.869250885000105e-05 | 1.3085996900000732e-05 | 2.5465536640001426e-05 |
| 20.62733992473471 | 35.071783206011524 | 2.799815639 | 0.3156431095 | 3.824748898000235e-05 | 3.0031846280001843e-05 | 4.762271396000292e-05 |
| 35.071783206011524 | 64.86831765025772 | 2.799815639 | 0.3156431095 | 8.606702222000347e-05 | 7.324545466000296e-05 | 0.00010006422550000404 |
| 64.86831765025772 | 108.88218076487752 | 2.830148082 | 0.3383513039 | 0.00016255656653720117 | 0.0001435956391883329 | 0.00018274838056696517 |
| 108.88218076487752 | 165.97861005727515 | 3.048703622 | 0.2929016866 | 0.00025583245971783715 | 0.00023153960756741406 | 0.00028133184456045896 |
| 165.97861005727515 | 235.02284303485465 | 3.104885416 | 0.258195849 | 0.00045526945093766596 | 0.00041961562932848784 | 0.000492348701741548 |
| 235.02284303485465 | 314.8801172050204 | 3.066401887 | 0.2056897864 | 0.0005044398235406149 | 0.0004534336261849341 | 0.0005577313021163041 |
| 314.8801172050204 | 404.41567007517637 | 2.968272761 | 0.1641514709 | 0.0002101444661545451 | 0.00016257324833801845 | 0.0002602193256290628 |
| 404.41567007517637 | 502.49473915272677 | 2.830596013 | 0.1240018348 | 0.00016504754242365716 | 0.00011121755554018542 | 0.0002215462931762434 |
| 502.49473915272677 | 607.9825619450763 | 2.668664497 | 0.1109438693 | 3.6522189698193415e-09 | 0.0 | 1.8522256711467435e-05 |
| 607.9825619450763 | 719.7443759596283 | 2.495728511 | 0.09371577197 | 6.306091383678513e-10 | 0.0 | 2.154550176604864e-05 |
| 719.7443759596283 | 836.6454187037875 | 2.322328216 | 0.07396963541 | 2.1270905231627233e-08 | 0.0 | 2.1188025812157954e-05 |
| 836.6454187037875 | 957.550927684958 | 2.165069699 | 0.06513737378 | 2.1474607330975023e-08 | 0.0 | 1.954678662639985e-05 |
| 957.550927684958 | 1081.3261404105444 | 2.165069699 | 0.06513737378 | 5.277179634630617e-09 | 0.0 | 3.8377520914680344e-05 |
| 1081.3261404105444 | 1206.8362943879497 | 2.165069699 | 0.06513737378 | 7.677130142363223e-05 | 0.0 | 0.00021794893159280082 |
Temperature Profiles

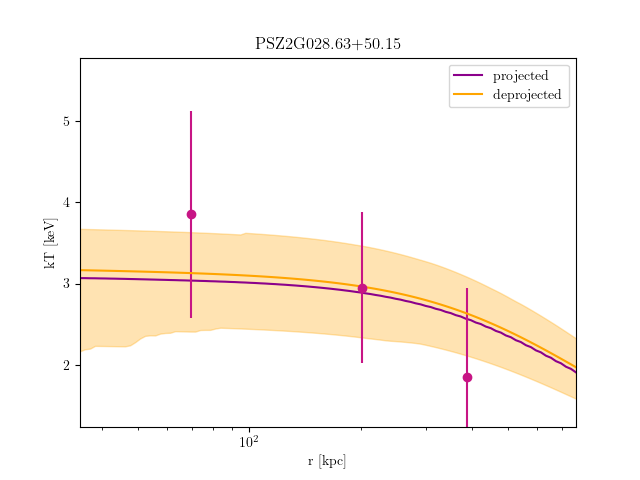

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G028.63+50.15_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 165.9786100572711 | 3.855376099 | 3.014837873 | 5.033540161 | 0.1790201966 | 0 | 0.545140354 | 0.0005563929565 | 0.000476768865 | 0.0006576367946 |
| 165.9786100572711 | 314.8801172050127 | 2.949322217 | 2.501942547 | 3.530961605 | 0.3838005464 | 0.1123940446 | 0.8112871051 | 0.0007665162762 | 0.0006368760535 | 0.0009092506702 |
| 314.8801172050127 | 607.9825619450615 | 1.84537378 | 1.390519875 | 2.945727645 | 3.712374608e-07 | 0 | 0.08642685601 | 0.0002779103413 | 0.0001755472631 | 0.0003670717255 |
