Cluster
PSZ2G033.46-48.43
Emission Measure Profiles

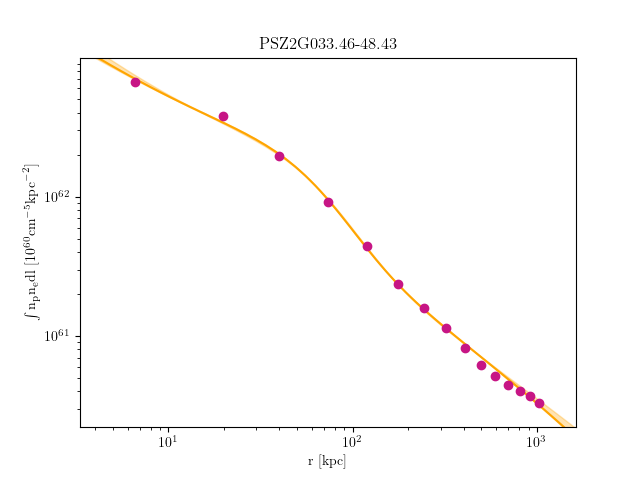

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G033.46-48.43_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 15.359264872165792 | 2.196911349 | 0.4952575048 | 0.0002039364212000046 | 0.0001993893629000045 | 0.0002085511089000047 |
| 15.359264872165792 | 30.526481292216953 | 2.828092358 | 0.7826329253 | 0.00034535429290002143 | 0.000339927350200021 | 0.00035083789740002175 |
| 30.526481292216953 | 61.81397902978588 | 3.441376313 | 0.9660613143 | 0.0007351934940000351 | 0.0007275078684000347 | 0.0007429581959000355 |
| 61.81397902978588 | 108.03021418280564 | 4.285611903 | 1.125917386 | 0.0009368247849867843 | 0.000928143379809648 | 0.0009455839168564043 |
| 108.03021418280564 | 167.9836428492093 | 5.29556811 | 1.253287419 | 0.000956306562270852 | 0.0009474906893839919 | 0.0009651984854510071 |
| 167.9836428492093 | 240.4827211269298 | 6.416710338 | 1.356103626 | 0.0009094866595520652 | 0.0009007050379501223 | 0.0009183438114121033 |
| 240.4827211269298 | 324.33590511390025 | 7.543539308 | 1.441117531 | 0.0009695377929374143 | 0.0009600381963033804 | 0.0009791166241485474 |
| 324.33590511390025 | 418.3516509080538 | 8.607279349 | 1.512931176 | 0.0010392351007163269 | 0.0010292215260618357 | 0.0010493270751138044 |
| 418.3516509080538 | 521.3384146073231 | 9.568256925 | 1.574649115 | 0.0010316427039233171 | 0.001021101080525253 | 0.0010422661126797627 |
| 521.3384146073231 | 632.104652309642 | 10.3924311 | 1.628409135 | 0.0010233446827879185 | 0.0010122274546314216 | 0.0010345480301468025 |
| 632.104652309642 | 749.4588201129427 | 11.05691785 | 1.675749397 | 0.001088510766253554 | 0.0010762859467475965 | 0.0011008296992645696 |
| 749.4588201129427 | 872.2093741151584 | 11.55449174 | 1.71778025 | 0.0011449210553652822 | 0.001131064313484338 | 0.0011588885726435938 |
| 872.2093741151584 | 999.1647704142226 | 11.79297489 | 1.755351771 | 0.0012465687456390834 | 0.001230298866864912 | 0.0012629759457539092 |
| 999.1647704142226 | 1129.1334651080683 | 11.68270433 | 1.7890935 | 0.0013409852063271525 | 0.0013222591200110568 | 0.001359876154383686 |
| 1129.1334651080683 | 1260.9239142946276 | 11.16682229 | 1.819521521 | 0.0013573856019852182 | 0.001336367550104627 | 0.0013786005572218787 |
Temperature Profiles

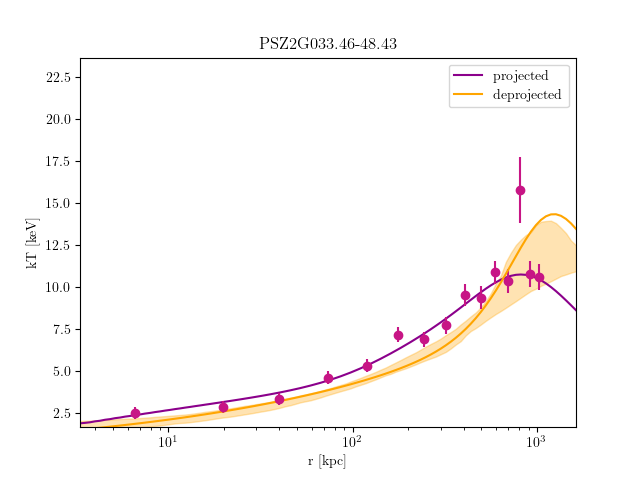

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G033.46-48.43_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 15.359264872165419 | 2.514102229 | 2.415273161 | 2.624559477 | 0.3447602082 | 0.2627849444 | 0.4396906879 | 0.0002138467433 | 0.0002018912583 | 0.0002260114804 |
| 15.359264872165419 | 30.526481292216204 | 2.868332866 | 2.779625795 | 2.96666119 | 0.2567095123 | 0.2017142582 | 0.3171708695 | 0.0004302217238 | 0.000415102566 | 0.000445447051 |
| 30.526481292216204 | 61.81397902978437 | 3.34737125 | 3.271557682 | 3.424580371 | 0.3421066289 | 0.297427871 | 0.3897964676 | 0.0009149039576 | 0.0008945783892 | 0.0009352950951 |
| 61.81397902978437 | 108.030214182803 | 4.619445505 | 4.477882024 | 4.753307489 | 0.2282395312 | 0.1898169912 | 0.2690551736 | 0.001172019327 | 0.001153038252 | 0.001191496464 |
| 108.030214182803 | 167.9836428492052 | 5.321331083 | 5.157135456 | 5.498117828 | 0.2082106029 | 0.1678959195 | 0.2510490347 | 0.00122396252 | 0.001205154074 | 0.001242767808 |
| 167.9836428492052 | 240.48272112692393 | 7.165903624 | 6.875312874 | 7.434872171 | 0.274360359 | 0.219955783 | 0.3321665518 | 0.001119924666 | 0.001102262723 | 0.00113744506 |
| 240.48272112692393 | 324.33590511389235 | 6.89837168 | 6.629097741 | 7.183470522 | 0.4291015118 | 0.3666705162 | 0.4955977121 | 0.001165462581 | 0.001145315286 | 0.001185411301 |
| 324.33590511389235 | 418.3516509080436 | 7.744492133 | 7.399141202 | 8.099682967 | 0.4907700755 | 0.4207916833 | 0.5654113773 | 0.001226920888 | 0.001205663541 | 0.001247753614 |
| 418.3516509080436 | 521.3384146073104 | 9.558658702 | 9.069319394 | 10.16562282 | 0.8725128331 | 0.7624961912 | 0.9908830759 | 0.001130199992 | 0.001106496815 | 0.001153614686 |
| 521.3384146073104 | 632.1046523096267 | 9.381816967 | 8.802611053 | 9.958279146 | 1.186993676 | 1.048853739 | 1.336764327 | 0.001061854079 | 0.001036020781 | 0.001087338712 |
| 632.1046523096267 | 749.4588201129244 | 10.88708193 | 10.3437269 | 11.51241883 | 1.874466975 | 1.665472889 | 2.11166127 | 0.001047224522 | 0.001015941315 | 0.001077934676 |
| 749.4588201129244 | 872.2093741151372 | 10.37229045 | 9.770659889 | 11.00397912 | 1.826345156 | 1.608256157 | 2.066504839 | 0.001107588449 | 0.001072613155 | 0.001141934223 |
| 872.2093741151372 | 999.1647704141982 | 15.77487777 | 14.08435732 | 17.94560216 | 3.26805188 | 2.716927889 | 3.978045261 | 0.00110242111 | 0.001042944306 | 0.001155961383 |
| 999.1647704141982 | 1129.1334651080408 | 10.80048677 | 10.1497455 | 11.55594979 | 2.779860084 | 2.431069611 | 3.195289722 | 0.001165283038 | 0.001113628294 | 0.001215230782 |
| 1129.1334651080408 | 1260.923914294597 | 10.63154361 | 9.999951214 | 11.36579261 | 4.094313798 | 3.560687107 | 4.737656185 | 0.001026799781 | 0.0009669755611 | 0.001085441854 |
