Cluster
PSZ2G037.05-70.55
Emission Measure Profiles

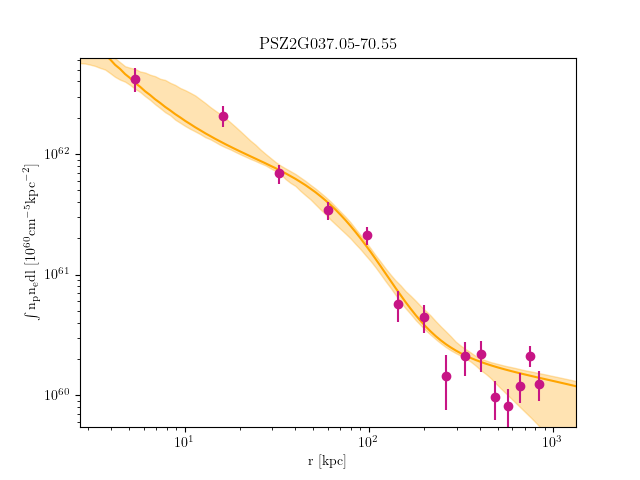

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G037.05-70.55_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.362991921467387 | 2.333021437 | 1.094604707 | 8.854376632000422e-05 | 7.323954426000349e-05 | 0.00010582560980000504 |
| 13.362991921467387 | 26.558896294442206 | 2.333021437 | 1.094604707 | 0.00012942797670000786 | 0.00011010584860000669 | 0.00015079597030000916 |
| 26.558896294442206 | 53.77989827532071 | 2.698587991 | 0.9118181066 | 0.00017836870910000981 | 0.00015516956160000853 | 0.00020365715830001122 |
| 53.77989827532071 | 93.98932119566093 | 3.333374985 | 0.7204308335 | 0.00023905280390000832 | 0.00021065810930000735 | 0.0002696630555000094 |
| 93.98932119566093 | 146.15048838702106 | 3.684655323 | 0.5437214767 | 0.0003147707017015106 | 0.00027754293168258523 | 0.00035475280806726686 |
| 146.15048838702106 | 209.22672318095883 | 3.809048294 | 0.41573119 | 0.00015070852906251826 | 0.00011324870273159431 | 0.00019260622094201634 |
| 209.22672318095883 | 282.1813489090326 | 3.797359286 | 0.2744589439 | 0.00018784088979106046 | 0.00014541140131172001 | 0.00023466058188183347 |
| 282.1813489090326 | 363.9776889028001 | 3.707021005 | 0.159670311 | 9.0496207564667e-05 | 5.113116079482897e-05 | 0.00013497401525770309 |
| 363.9776889028001 | 453.5790664938195 | 3.56049338 | 0.07934665193 | 0.00018136465827879006 | 0.000131072159562894 | 0.00023662717823435365 |
| 453.5790664938195 | 549.9488050136492 | 3.377764279 | 0.01668108332 | 0.0002479749859980272 | 0.000185986358262436 | 0.00031526792000733707 |
| 549.9488050136492 | 652.0502277938467 | 3.176565915 | 1 | 0.00013854059291516798 | 9.432638457022838e-05 | 0.0001867203348391784 |
| 652.0502277938467 | 758.8466581659701 | 2.97032967 | 1 | 0.00014416951270343153 | 9.354412075411212e-05 | 0.00019917160783844683 |
| 758.8466581659701 | 869.3014194615778 | 2.769807207 | 1 | 0.00025231808531499424 | 0.00019293731364836464 | 0.00031610138975234195 |
| 869.3014194615778 | 982.3778350122279 | 2.581338957 | 1 | 0.0005231792934109027 | 0.00044200997107800137 | 0.0006091866984774007 |
| 982.3778350122279 | 1097.0392281494778 | 2.408443443 | 1 | 0.0003475513806532135 | 0.00026413234018468954 | 0.000437433454941783 |
Temperature Profiles

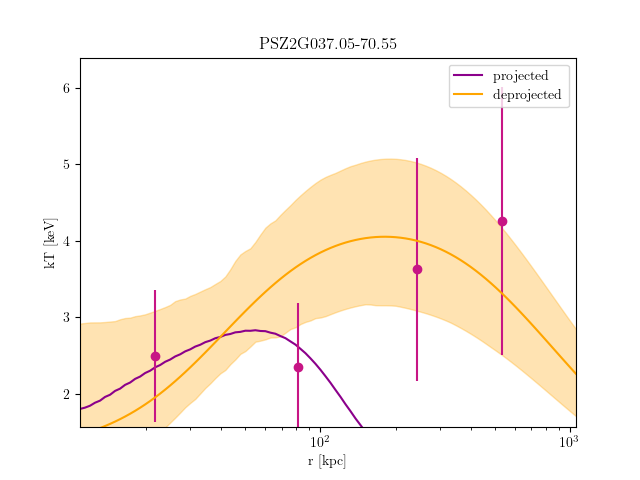

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G037.05-70.55_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 53.779898275319404 | 2.497450906 | 2.171884763 | 2.882350581 | 1.170464235 | 0.5027111319 | 2.657219251 | 0.0003716693698 | 0.0002410981 | 0.0005023408296 |
| 53.779898275319404 | 146.15048838701748 | 2.34613036 | 2.110102572 | 2.703058432 | 1.899819992e-11 | 0 | 0.1837513316 | 0.0008948952729 | 0.0007484414851 | 0.001093344856 |
| 146.15048838701748 | 453.5790664938084 | 3.628515985 | 2.61830215 | 5.07034165 | 1.083622959e-12 | 0 | 0.2310264199 | 0.0004655592962 | 0.0003702971564 | 0.000575778746 |
| 453.5790664938084 | 869.3014194615565 | 4.264742102 | 3.022408934 | 6.150180994 | 3.577867263e-15 | 0 | 0.1815644159 | 0.0006901625464 | 0.0005713531423 | 0.000835319604 |
