Cluster
PSZ2G041.43-66.81
Emission Measure Profiles

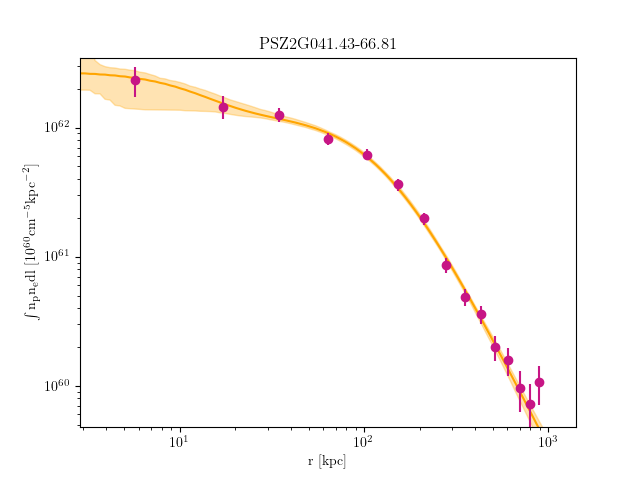

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G041.43-66.81_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.562393542173588 | 10.78509787 | 0.4490386728 | 3.8367654810002154e-05 | 2.955426076000166e-05 | 4.872955954000274e-05 |
| 11.562393542173588 | 22.98021377299432 | 10.78509787 | 0.4490386728 | 7.086072000000373e-05 | 5.839825341000308e-05 | 8.493876179000447e-05 |
| 22.98021377299432 | 46.533317700983716 | 10.78509787 | 0.4490386728 | 0.0002550077272000132 | 0.00023091105840001197 | 0.00028066556990001453 |
| 46.533317700983716 | 81.32471581309274 | 12.5624183 | 0.4822450178 | 0.00044744616620002336 | 0.00041416110490002163 | 0.00048236606940002514 |
| 81.32471581309274 | 126.45741859627242 | 13.87990835 | 0.4875201983 | 0.0007158411357000373 | 0.000671249315800035 | 0.0007622223412000397 |
| 126.45741859627242 | 181.03443653747354 | 14.34029785 | 0.4678599625 | 0.0007519353152910619 | 0.0006995633329225306 | 0.0008065398747175239 |
| 181.03443653747354 | 244.15878012364723 | 14.31016051 | 0.4768820115 | 0.0006576097562625472 | 0.0006076220113155839 | 0.0007097092840093723 |
| 244.15878012364723 | 314.9334598417443 | 13.9694733 | 0.4740152653 | 0.00042159025750786454 | 0.0003792060321038923 | 0.0004658847751451212 |
| 314.9334598417443 | 392.4614861787158 | 13.41777751 | 0.4640422408 | 0.0003327197337002549 | 0.0002912947311645911 | 0.0003759995062946553 |
| 392.4614861787158 | 475.8458696215128 | 12.7294563 | 0.4685518378 | 0.0003198214290508555 | 0.0002738923116347764 | 0.000367760191652777 |
| 475.8458696215128 | 564.1896206570862 | 11.97089107 | 0.4690716333 | 0.0002275358480804298 | 0.00018091545433249575 | 0.0002762135898749792 |
| 564.1896206570862 | 656.5957497723864 | 11.19413185 | 0.4712637324 | 0.00021993427683532428 | 0.00017017313992245096 | 0.0002716958997725736 |
| 656.5957497723864 | 752.1672674543652 | 10.43776402 | 0.4690120603 | 0.0001604810862721363 | 0.00010633540272583638 | 0.00021692852407264647 |
| 752.1672674543652 | 850.0071841899734 | 9.727618466 | 0.471463131 | 0.00013904005473796196 | 7.839508902208596e-05 | 0.00020228392063380334 |
| 850.0071841899734 | 949.2185104661612 | 9.076253266 | 0.4754488758 | 0.00023439750245323647 | 0.00016045783493552515 | 0.0003114497789430107 |
Temperature Profiles

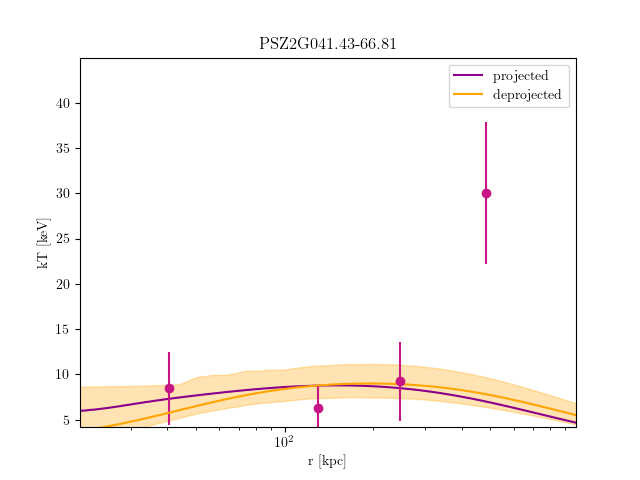

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G041.43-66.81_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 81.32471581309075 | 8.476717814 | 6.517286986 | 13.27089172 | 0.2023253362 | 0 | 0.5517577054 | 0.0008826033048 | 0.0008044503417 | 0.0009587353686 |
| 81.32471581309075 | 181.03443653746913 | 6.264032885 | 5.408569456 | 7.511916511 | 0.575177428 | 0.3249729922 | 0.9060519936 | 0.001493089494 | 0.001364367136 | 0.001621161959 |
| 181.03443653746913 | 314.93345984173664 | 9.233899376 | 6.900047022 | 14.3196059 | 0.705699386 | 0.248223314 | 1.419519117 | 0.001012128679 | 0.0008902279807 | 0.001127101801 |
| 314.93345984173664 | 656.5957497723705 | 29.98984653 | 15.04757077 | 0 | 2.761098713e-06 | 0 | 0.8142965745 | 0.001277371853 | 0.001007631422 | 0.001387556194 |
