Cluster
PSZ2G041.45+29.10
Emission Measure Profiles

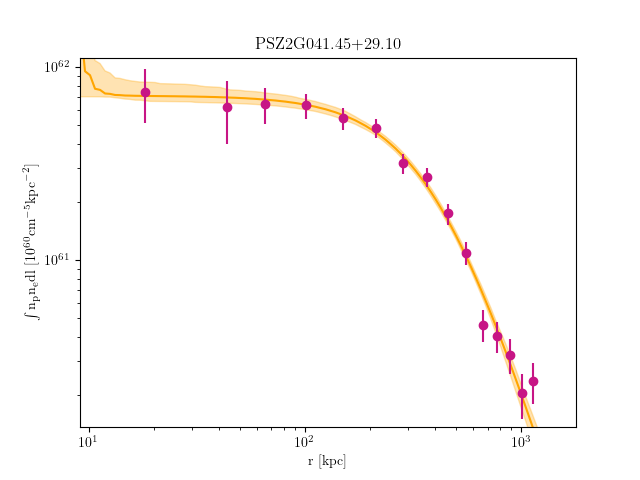

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G041.45+29.10_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 24.650949737866107 | 13.91858123 | 1.319944495 | 4.775176598000191e-05 | 3.470388773000139e-05 | 6.346111684000254e-05 |
| 24.650949737866107 | 34.18122638531939 | 13.91858123 | 1.319944495 | 3.676525456000163e-05 | 2.515702551000111e-05 | 5.1113100070002256e-05 |
| 34.18122638531939 | 53.840635256904214 | 13.91858123 | 1.319944495 | 0.0001172477338000063 | 9.615860338000516e-05 | 0.0001410097073000076 |
| 53.840635256904214 | 82.88047318192724 | 13.91858123 | 1.319944495 | 0.00026439395500001454 | 0.00023208223110001276 | 0.00029931924730001644 |
| 82.88047318192724 | 120.55203698969522 | 14.26625382 | 1.36899075 | 0.00043735042239352926 | 0.00039501540570633157 | 0.0004822863011281065 |
| 120.55203698969522 | 166.1066235095147 | 14.51658353 | 1.4626262 | 0.0006660188306504726 | 0.0006122670741945951 | 0.0007224743860647463 |
| 166.1066235095147 | 218.7955295706925 | 14.38509909 | 1.543085596 | 0.0006779425179258028 | 0.0006224593035301798 | 0.0007360771207971235 |
| 218.7955295706925 | 277.8700520025352 | 13.9878356 | 1.612687337 | 0.0008336687955406514 | 0.0007683227047203504 | 0.0009019403722456718 |
| 277.8700520025352 | 342.58148763434946 | 13.40325595 | 1.673444949 | 0.0007363340711143637 | 0.0006703086656024372 | 0.0008054933849898799 |
| 342.58148763434946 | 412.1811332954423 | 12.69828747 | 1.726947117 | 0.0006014718396120688 | 0.0005378842130434781 | 0.0006682510610473962 |
| 412.1811332954423 | 485.9202858151198 | 11.93263161 | 1.774419221 | 0.0003225166816912696 | 0.00026982488519828647 | 0.00037825887537543313 |
| 485.9202858151198 | 563.0502420226891 | 11.15632159 | 1.816815369 | 0.00034384740364164007 | 0.00028841111648504814 | 0.00040226953874975745 |
| 563.0502420226891 | 642.8222987474568 | 10.40508659 | 1.854875544 | 0.0003267338065010318 | 0.00026622781402596714 | 0.00039048126955230813 |
| 642.8222987474568 | 724.4877528187297 | 9.701014303 | 1.889179861 | 0.00023965259845507223 | 0.0001814094490756575 | 0.00030121949298548 |
| 724.4877528187297 | 807.2979010658139 | 9.055596917 | 1.920189821 | 0.00031463791656369695 | 0.0002460720921361239 | 0.0003871048102650236 |
Temperature Profiles

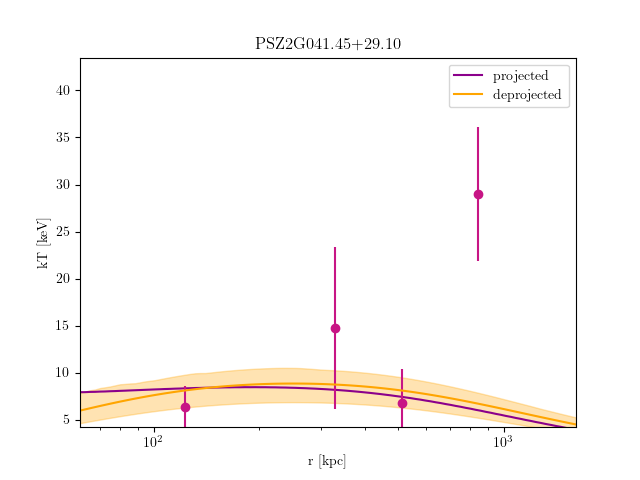

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G041.45+29.10_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 166.10662350951065 | 6.299938858 | 5.307422695 | 7.508743425 | 0.3427960169 | 0.1501665445 | 0.5931373817 | 0.001944050561 | 0.001784310036 | 0.002109993761 |
| 166.10662350951065 | 277.87005200252844 | 14.75694979 | 9.887885822 | 26.61538721 | 7.370950225e-05 | 0 | 0.3171499595 | 0.001913993046 | 0.001753757017 | 0.002022602606 |
| 277.87005200252844 | 412.18113329543223 | 6.797400298 | 5.392848589 | 11.26601111 | 0.315265796 | 0.001531342477 | 0.747093634 | 0.001720555602 | 0.001498115188 | 0.001923250378 |
| 412.18113329543223 | 724.487752818712 | 28.99638392 | 13.66874158 | 0 | 4.999918879 | 1.49345505 | 0 | 0.001065424115 | 0.0009054369355 | 0.001488622661 |
