Cluster
PSZ2G047.73-60.15
Emission Measure Profiles

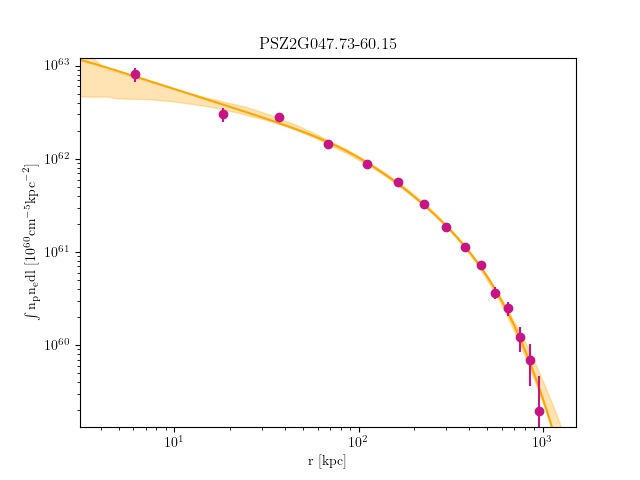

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G047.73-60.15_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.379791905484835 | 4.321051152 | 0.3226999131 | 0.000132946133500006 | 0.00011208641610000505 | 0.00015625915070000703 |
| 11.379791905484835 | 22.617293705354292 | 4.321051152 | 0.3226999131 | 0.00014442553240000668 | 0.00012257998770000563 | 0.00016870748840000778 |
| 22.617293705354292 | 45.79843007224451 | 4.321051152 | 0.3226999131 | 0.0005574775645000242 | 0.0005139962068000223 | 0.0006032965032000262 |
| 45.79843007224451 | 80.04037739678185 | 5.028581369 | 0.4931827542 | 0.000787590967400037 | 0.0007377068771000347 | 0.0008395921591000396 |
| 80.04037739678185 | 124.4603120695927 | 5.564600321 | 0.5499420092 | 0.0010205933210000497 | 0.0009636184280000469 | 0.0010796518530000526 |
| 124.4603120695927 | 178.17541048130326 | 5.746349682 | 0.5925311721 | 0.0011642047382350706 | 0.001099101440587374 | 0.0012316125308027817 |
| 178.17541048130326 | 240.3028490225401 | 5.732984612 | 0.6280447833 | 0.0010626203729651414 | 0.0009973381236139047 | 0.0011303138385258078 |
| 240.3028490225401 | 309.9598040839293 | 5.594267512 | 0.6571155742 | 0.0008994253187548423 | 0.0008338759575237594 | 0.0009676234573696497 |
| 309.9598040839293 | 386.2634520560974 | 5.372284105 | 0.684265575 | 0.0007529351217224353 | 0.0006905657970740399 | 0.0008179106831701281 |
| 386.2634520560974 | 468.33096932967084 | 5.096414044 | 0.7079180511 | 0.0006466085002540882 | 0.0005858469158118457 | 0.0007099286652146011 |
| 468.33096932967084 | 555.2795322952757 | 4.7921553 | 0.7287423928 | 0.00041245607411661764 | 0.00035569193177672624 | 0.0004718420652281335 |
| 555.2795322952757 | 646.2263173435384 | 4.48083028 | 0.7472320187 | 0.0003413428680171428 | 0.00028421047180981205 | 0.0004011935878178942 |
| 646.2263173435384 | 740.2885008650853 | 4.178271651 | 0.7637596602 | 0.00019923569491276044 | 0.00014163854128521508 | 0.00025982720868898435 |
| 740.2885008650853 | 836.5832592505434 | 3.893811195 | 0.7785945535 | 0.00013273411489561732 | 7.228280884475937e-05 | 0.00019651094164728486 |
| 836.5832592505434 | 934.2277688905377 | 3.838930115 | 0.7814361157 | 4.310626125319054e-05 | 0.0 | 0.00011552785465635206 |
Temperature Profiles

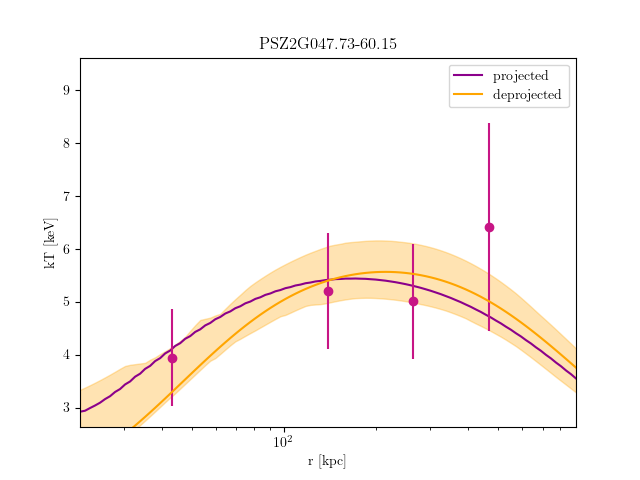

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G047.73-60.15_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 80.0403773967799 | 3.94610735 | 3.527322279 | 4.520963472 | 0.1168448065 | 0 | 0.2958302462 | 0.001874475334 | 0.001729190886 | 0.002027162608 |
| 80.0403773967799 | 178.1754104812989 | 5.200538829 | 4.486422169 | 6.034336527 | 0.1925046233 | 0.05134387677 | 0.3722130025 | 0.002472296988 | 0.002312681673 | 0.002650017414 |
| 178.1754104812989 | 309.95980408392177 | 5.005538633 | 4.292517077 | 5.818415579 | 0.559434691 | 0.2892427772 | 0.9198591209 | 0.002060854303 | 0.001868695629 | 0.002251598174 |
| 309.95980408392177 | 555.2795322952622 | 6.405002353 | 4.81546092 | 8.431644583 | 1.017343968 | 0.5600422027 | 1.706713849 | 0.001650773948 | 0.001433144572 | 0.001883356969 |
