Cluster
PSZ2G049.18+65.05
Emission Measure Profiles

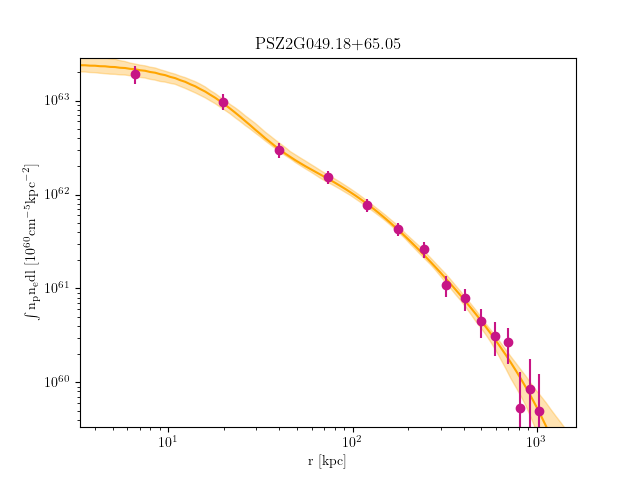

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G049.18+65.05_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.231966475482609 | 3.18344607 | 0.1902585939 | 9.132526325000572e-05 | 7.49990034300047e-05 | 0.00010984988790000688 |
| 7.231966475482609 | 14.373506229444299 | 3.18344607 | 0.1902585939 | 0.0001375842000000068 | 0.0001172338230000058 | 0.00016012566630000795 |
| 14.373506229444299 | 29.105339857099576 | 3.18344607 | 0.1902585939 | 0.00017587956650000626 | 0.0001521929649000054 | 0.00020175012660000717 |
| 29.105339857099576 | 50.866424520426285 | 3.651236353 | 0.2469739175 | 0.0002455789235000123 | 0.00021824835020001093 | 0.00027490149700001376 |
| 50.866424520426285 | 79.0957173814023 | 3.982700996 | 0.2369389502 | 0.0002565312424528537 | 0.0002278587546464572 | 0.0002871685566406091 |
| 79.0957173814023 | 113.23217560200536 | 4.074336218 | 0.2333741986 | 0.0002576570574438638 | 0.00022552923630065716 | 0.00029202089744522153 |
| 113.23217560200536 | 152.71475634421344 | 4.031285808 | 0.2226881728 | 0.00025169586050990207 | 0.00021212350979552992 | 0.0002945648986228347 |
| 152.71475634421344 | 196.98241677000422 | 3.906315052 | 0.2112878817 | 0.00015294070964946773 | 0.0001209234631078158 | 0.0001877057782193485 |
| 196.98241677000422 | 245.47411404135565 | 3.727556659 | 0.2001896473 | 0.00015324316280919346 | 0.00011753588489000191 | 0.00019186347556295082 |
| 245.47411404135565 | 297.62880532024576 | 3.515571496 | 0.1892137652 | 0.00011532964022623956 | 7.92346714524598e-05 | 0.00015437278357508872 |
| 297.62880532024576 | 352.88544776865194 | 3.288363923 | 0.1759562047 | 0.00010314846962785582 | 6.508207289816382e-05 | 0.00014418282476381643 |
| 352.88544776865194 | 410.6829985485523 | 3.060114646 | 0.1589905988 | 0.00010795871806860631 | 6.570220052507795e-05 | 0.0001533029859987214 |
| 410.6829985485523 | 470.4604148219247 | 2.840812277 | 0.1444198815 | 2.561185566789431e-05 | 0.0 | 7.311494328374977e-05 |
| 470.4604148219247 | 531.6566537507473 | 2.636740793 | 0.1341842165 | 4.742758612790404e-05 | 0.0 | 0.00010173828216825844 |
| 531.6566537507473 | 593.710672496997 | 2.450923908 | 0.1331621383 | 3.1811381439303595e-05 | 0.0 | 9.270078723607111e-05 |
Temperature Profiles

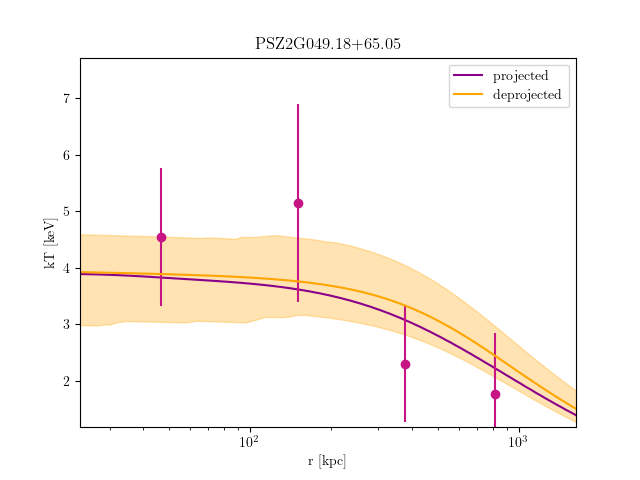

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G049.18+65.05_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 50.86642452042504 | 4.54578355 | 3.659114182 | 5.494848586 | 0.005302095036 | 0 | 0.2062480088 | 0.0006056270765 | 0.0005439892359 | 0.0006865460604 |
| 50.86642452042504 | 113.23217560200258 | 5.146622288 | 3.950419844 | 7.051008709 | 0.3560925907 | 0.07802482615 | 0.7859082165 | 0.0004551646479 | 0.0003886038465 | 0.0005284129344 |
| 113.23217560200258 | 297.6288053202385 | 2.303287649 | 1.841015115 | 3.127315644 | 1.727125798e-07 | 0 | 0.3948346378 | 0.00093344688 | 0.0007016657826 | 0.001048417778 |
| 297.6288053202385 | 593.7106724969825 | 1.773691005 | 1.193843872 | 2.602333598 | 3.428677501e-07 | 0 | 0.5706326248 | 0.0005266814034 | 0.0002906735164 | 0.0008016428459 |
