Cluster
PSZ2G055.59+31.85
Emission Measure Profiles

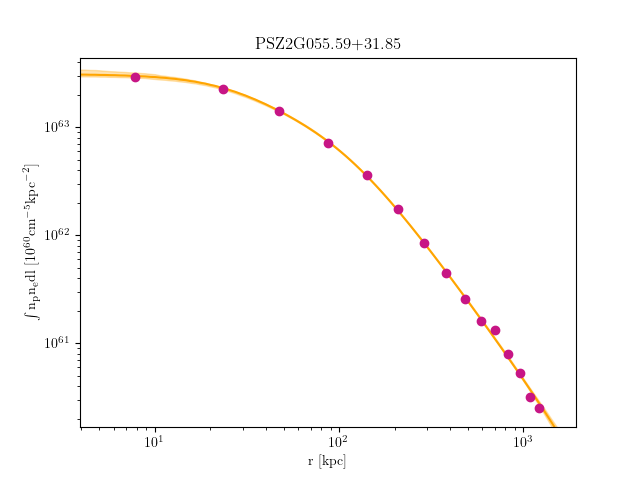

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G055.59+31.85_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.854844439500203 | 7.114645412 | 0.5519018857 | 0.00023133936500001112 | 0.0002203748518000106 | 0.00024265988800001165 |
| 8.854844439500203 | 17.598970092491054 | 7.355978121 | 0.5164352372 | 0.0005194320187000031 | 0.000503407422400003 | 0.0005357927148000033 |
| 17.598970092491054 | 35.63667747453202 | 8.129969224 | 0.4602836242 | 0.0013750748170000637 | 0.0013481252500000627 | 0.0014023799680000651 |
| 35.63667747453202 | 62.28102381958236 | 8.876012781 | 0.4148593287 | 0.001883046236392005 | 0.0018522616657698355 | 0.0019141678132926236 |
| 62.28102381958236 | 96.84506636160138 | 9.206145654 | 0.3851869425 | 0.002008821712955964 | 0.001976975026490044 | 0.002041004273069721 |
| 96.84506636160138 | 138.64186233454822 | 9.296014829 | 0.3483850408 | 0.0017262198429251676 | 0.0016958034198044703 | 0.001756988451650926 |
| 138.64186233454822 | 186.98446897238227 | 9.178404221 | 0.3267044564 | 0.0013470909254100411 | 0.001319830577313327 | 0.001374705164709029 |
| 186.98446897238227 | 241.18594350906267 | 8.562185966 | 0.3058846678 | 0.0010516277952777701 | 0.001027520253931408 | 0.0010760772227434272 |
| 241.18594350906267 | 300.5593431785487 | 7.60991806 | 0.2873559555 | 0.0008231057987913474 | 0.0008012494523785787 | 0.0008453046923984849 |
| 300.5593431785487 | 364.4177252147999 | 6.665545042 | 0.2713074043 | 0.0006804774734757639 | 0.0006597372869855027 | 0.0007015697518255406 |
| 364.4177252147999 | 432.07414685177514 | 5.780712521 | 0.254721544 | 0.0007256714467708642 | 0.0007022962561436765 | 0.0007494553117034586 |
| 432.07414685177514 | 502.8416653234337 | 4.921050584 | 0.242340621 | 0.000531290744421285 | 0.0005086220204565242 | 0.00055443675634883 |
| 502.8416653234337 | 576.033337863735 | 4.053753101 | 0.2317549693 | 0.0004252651650069261 | 0.00040406179334476596 | 0.00044694866124912335 |
| 576.033337863735 | 650.9622217066388 | 3.334498321 | 0.2208866659 | 0.0002949872162799629 | 0.00027389359337821537 | 0.0003166620028230053 |
| 650.9622217066388 | 726.9413740861031 | 2.81232491 | 0.2109680532 | 0.0002637501513069954 | 0.00023938921552286185 | 0.00028891010934758884 |
Temperature Profiles

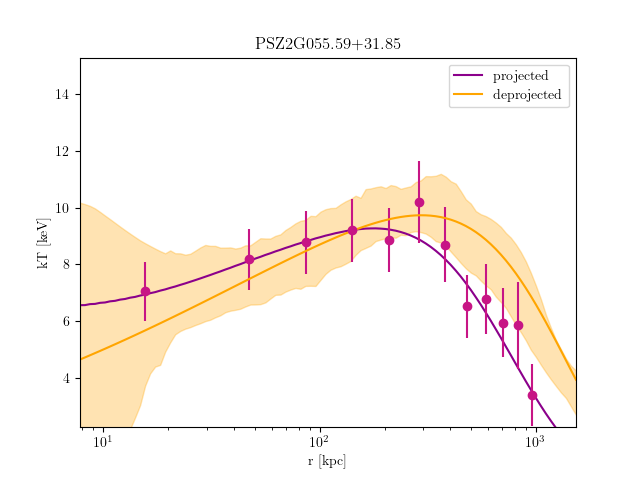

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G055.59+31.85_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 17.598970092490628 | 7.056799866 | 6.418173629 | 7.77576315 | 0.6012087692 | 0.4273596169 | 0.8068732781 | 0.0007916600182 | 0.0007544015414 | 0.0008280206733 |
| 17.598970092490628 | 35.63667747453115 | 8.186426936 | 7.507173309 | 8.975716046 | 0.4966609234 | 0.3606163203 | 0.6516797677 | 0.001365503077 | 0.001318793164 | 0.001411193665 |
| 35.63667747453115 | 62.281023819580845 | 8.779129952 | 8.078662803 | 9.62528656 | 0.1945558809 | 0.09265021872 | 0.3018755023 | 0.001950239559 | 0.001900461643 | 0.001999352411 |
| 62.281023819580845 | 96.84506636159902 | 9.205413482 | 8.479995896 | 10.025433 | 0.3983023705 | 0.2822846715 | 0.5256352598 | 0.002004438462 | 0.001950035044 | 0.002058060506 |
| 96.84506636159902 | 138.64186233454484 | 8.85548045 | 8.106954481 | 9.708450721 | 0.2489065516 | 0.1343376723 | 0.3743934231 | 0.001757997124 | 0.001707562385 | 0.001807490073 |
| 138.64186233454484 | 186.98446897237773 | 10.19587966 | 9.121718517 | 11.53850369 | 0.3330976989 | 0.1723599275 | 0.5109005126 | 0.001346801785 | 0.001298967864 | 0.001394340271 |
| 186.98446897237773 | 241.18594350905678 | 8.695953512 | 7.753155422 | 9.851388912 | 0.6633739531 | 0.4608848892 | 0.8915618416 | 0.0009845841336 | 0.0009403123828 | 0.001028197698 |
| 241.18594350905678 | 300.5593431785414 | 6.529573809 | 5.837161186 | 7.394599454 | 0.3067356875 | 0.1441756217 | 0.4937565943 | 0.000825306054 | 0.0007864557732 | 0.000863074591 |
| 300.5593431785414 | 364.41772521479095 | 6.785068922 | 5.888489502 | 7.806368975 | 0.03165197648 | 0 | 0.2120353083 | 0.0007134936951 | 0.0006785140503 | 0.0007412537748 |
| 364.41772521479095 | 432.0741468517646 | 5.946333572 | 5.183283961 | 7.013013429 | 0.05324453435 | 0 | 0.2296632152 | 0.0007596150242 | 0.0007193143652 | 0.0007957650829 |
| 432.0741468517646 | 502.8416653234214 | 5.860066004 | 4.73121693 | 7.370983133 | 0.4062987843 | 0.1212605795 | 0.7643929708 | 0.0005026834671 | 0.0004595325248 | 0.0005457154349 |
| 502.8416653234214 | 576.033337863721 | 3.391306552 | 2.817930748 | 4.295756512 | 0.12167978 | 0 | 0.38849707 | 0.0004569063389 | 0.0004011951197 | 0.0005159666945 |
