Cluster
PSZ2G055.95-34.89
Emission Measure Profiles

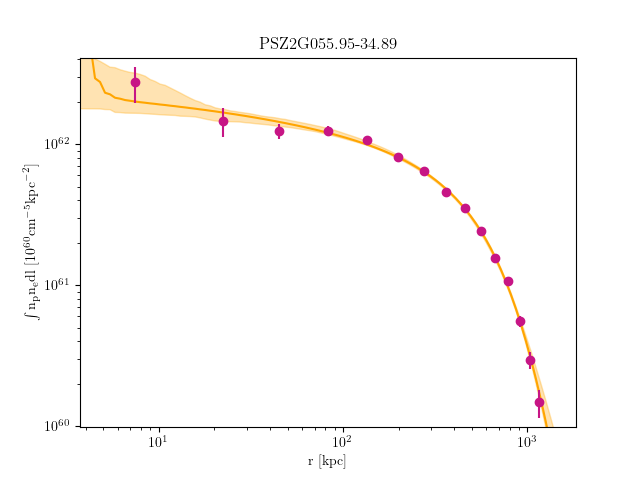

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G055.95-34.89_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.22319227653056 | 9.717587459 | 0.1085798969 | 1.828100306000107e-05 | 1.3535189720000792e-05 | 2.3892308680001398e-05 |
| 8.22319227653056 | 16.343563789092745 | 9.717587459 | 0.1085798969 | 2.883308518000147e-05 | 2.2727551320001158e-05 | 3.5827823200001825e-05 |
| 16.343563789092745 | 33.09456794774848 | 9.717587459 | 0.1085798969 | 0.00010102671170000616 | 8.953578759000545e-05 | 0.0001133938536000069 |
| 33.09456794774848 | 57.83826441523718 | 9.724554511 | 0.1088010864 | 0.00027694362491480136 | 0.00025774720939998787 | 0.0002970098033999743 |
| 57.83826441523718 | 89.9367128542983 | 7.999155469 | 0.1117666474 | 0.0005013224439159313 | 0.0004771600183019537 | 0.0005262290957408993 |
| 89.9367128542983 | 128.75197292767118 | 8.453419537 | 0.1134564755 | 0.0006725816012606603 | 0.0006463664717498421 | 0.0006994318487761023 |
| 128.75197292767118 | 173.6461042980953 | 8.381210905 | 0.1144572528 | 0.0008589239570734645 | 0.0008298934639033789 | 0.0008885511595340384 |
| 173.6461042980953 | 223.9811666283101 | 6.626737477 | 0.1115074451 | 0.0009042079569850641 | 0.0008734678430408989 | 0.000935563023632557 |
| 223.9811666283101 | 279.11921958105484 | 5.233426908 | 0.1084762968 | 0.0009578882801883255 | 0.0009234991137095785 | 0.0009929855888952794 |
| 279.11921958105484 | 338.4223228190693 | 4.270838293 | 0.1031647406 | 0.0008694857272847375 | 0.0008347105716176521 | 0.000905022497293352 |
| 338.4223228190693 | 401.2525360050924 | 3.549101907 | 0.1015597546 | 0.0007168758059624003 | 0.0006834198119044932 | 0.0007511328969574269 |
| 401.2525360050924 | 466.9719188018638 | 3.008223307 | 0.1022918654 | 0.0005974516006080553 | 0.0005631898021336953 | 0.0006326306278130903 |
| 466.9719188018638 | 534.942530872123 | 2.586114366 | 0.1028963176 | 0.0003721653170911804 | 0.00034120130692306326 | 0.00040411842982970717 |
| 534.942530872123 | 604.5264318786096 | 2.248238972 | 0.1034819428 | 0.00023074231326878627 | 0.00020073014828196492 | 0.00026187771278956526 |
| 604.5264318786096 | 675.0856814840624 | 1.980781099 | 0.1035941285 | 0.00013067341184828035 | 0.00010138246540572524 | 0.00016121071440856595 |
Temperature Profiles

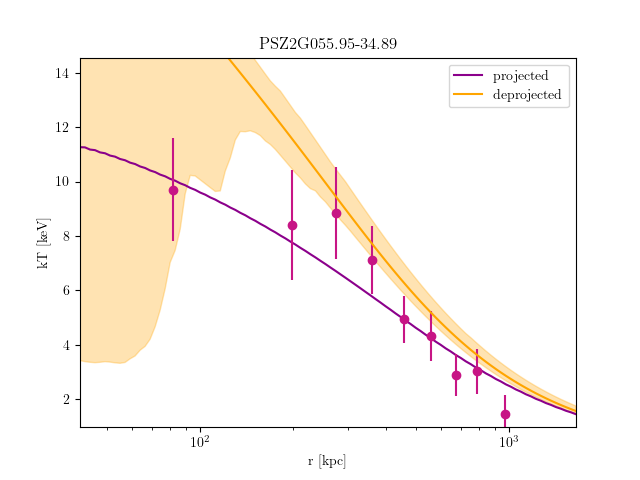

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G055.95-34.89_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 89.93671285429612 | 9.70746431 | 8.297430768 | 11.83398423 | 4.190093683e-07 | 0 | 0.1568569114 | 0.0009614821299 | 0.0009200947927 | 0.0009977422516 |
| 89.93671285429612 | 128.75197292766802 | 8.4052629 | 7.116874917 | 10.97482313 | 0.1670124134 | 0 | 0.4002232514 | 0.0006655053465 | 0.0006271599443 | 0.0007030296195 |
| 128.75197292766802 | 173.64610429809107 | 8.84307355 | 7.482978094 | 10.64012968 | 2.299397022e-15 | 0 | 0.04396434599 | 0.000875675935 | 0.0008448627413 | 0.0009081532814 |
| 173.64610429809107 | 223.98116662830463 | 7.107684926 | 6.079812882 | 8.221264414 | 0.1656679294 | 0 | 0.357407697 | 0.0008863566603 | 0.0008405357998 | 0.0009320453347 |
| 223.98116662830463 | 279.119219581048 | 4.93337484 | 4.3959822 | 5.559828034 | 0.1117029979 | 0 | 0.2715055396 | 0.0009643348116 | 0.0009077918096 | 0.001022630417 |
| 279.119219581048 | 338.42232281906104 | 4.324249145 | 3.775016447 | 5.069749116 | 0.100404142 | 0 | 0.2827164459 | 0.0008656606563 | 0.0008038885463 | 0.0009294505925 |
| 338.42232281906104 | 401.2525360050826 | 2.888849148 | 2.505538348 | 3.34493742 | 0.03875094319 | 0 | 0.2082318171 | 0.0007860279971 | 0.0007020985832 | 0.000860265956 |
| 401.2525360050826 | 466.9719188018524 | 3.020400751 | 2.549402644 | 3.5729621 | 0.2050236304 | 0 | 0.4582814415 | 0.0005666308125 | 0.0004991055386 | 0.0006474581972 |
| 466.9719188018524 | 604.5264318785948 | 1.453324506 | 1.253978391 | 1.696641976 | 3.700563288e-11 | 0 | 0.02627413404 | 0.0009065858535 | 0.0007752204072 | 0.0010407221 |
