Cluster
PSZ2G057.73+51.58
Emission Measure Profiles

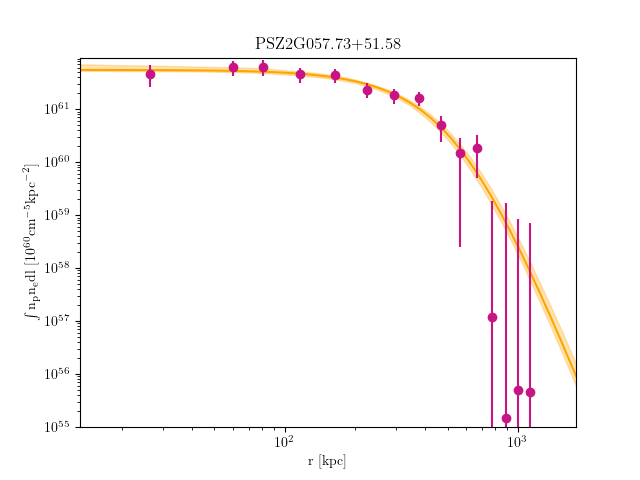

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G057.73+51.58_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 28.531736085647154 | 4.735870933 | 0.9413658108 | 3.0791079730001685e-05 | 2.032952856000111e-05 | 4.3372406700002374e-05 |
| 28.531736085647154 | 35.969297204652136 | 4.735870933 | 0.9413658108 | 1.1223226750000428e-05 | 5.139156569000197e-06 | 1.945663518000074e-05 |
| 35.969297204652136 | 51.311774706078474 | 4.735870933 | 0.9413658108 | 6.797143827000353e-05 | 5.2153417480002717e-05 | 8.596565356000448e-05 |
| 51.311774706078474 | 73.97487016942728 | 4.882341616 | 0.822852247 | 0.00010392517830000865 | 8.260109989000687e-05 | 0.00012779231060001064 |
| 73.97487016942728 | 103.3742851741997 | 5.026826659 | 0.6840381559 | 0.00018929563460001134 | 0.00015700967230000942 | 0.0002245873329000135 |
| 103.3742851741997 | 138.92572129989676 | 5.036908789 | 0.5265844112 | 0.0001635344393000073 | 0.00013207821760000588 | 0.00019783584820000884 |
| 138.92572129989676 | 180.0448801260197 | 4.931751634 | 0.3843943705 | 0.00019328722290001037 | 0.00015592818130000837 | 0.00023362456190001256 |
| 180.0448801260197 | 226.14746323206947 | 4.752099795 | 0.1764061379 | 0.00024538957530001075 | 0.00020016071580000877 | 0.0002938839670000128 |
| 226.14746323206947 | 276.6491721975473 | 4.526123974 | 0.04129608116 | 0.00010275161117526484 | 5.793541864618544e-05 | 0.0001517819559165005 |
| 276.6491721975473 | 330.9657086019545 | 4.260160776 | 1 | 3.9134807422186614e-05 | 3.3649202595594188e-06 | 7.819694059711042e-05 |
| 330.9657086019545 | 388.5127740247917 | 4.113683587 | 1 | 6.24132253094483e-05 | 2.0948941727349896e-05 | 0.00010717692104599509 |
| 388.5127740247917 | 448.7060700455603 | 4.113683587 | 1 | 4.757793355367672e-08 | 0.0 | 1.4848143979316727e-05 |
| 448.7060700455603 | 510.9612982437615 | 4.113683587 | 1 | 7.134057773209109e-10 | 0.0 | 1.6264810740810033e-05 |
| 510.9612982437615 | 574.6941601988964 | 4.113683587 | 1 | 2.748003093539047e-09 | 0.0 | 9.290896820288585e-06 |
| 574.6941601988964 | 639.3203574904658 | 4.113683587 | 1 | 2.8949738495545198e-09 | 0.0 | 8.853414949012897e-06 |
Temperature Profiles

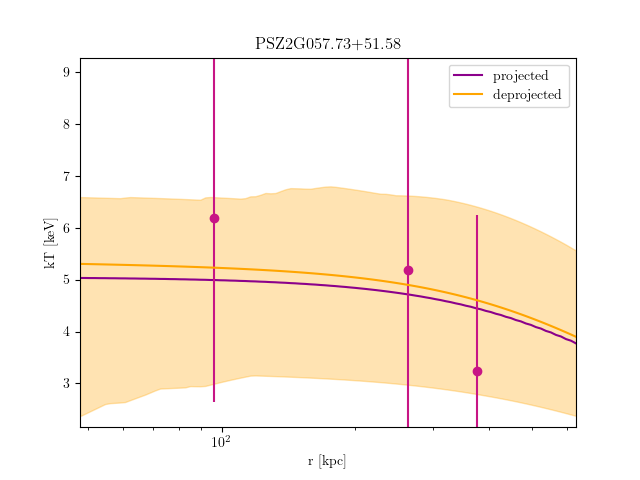

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G057.73+51.58_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 103.37428517419718 | 6.18918473 | 4.208651553 | 9.237695272 | 0.845551826 | 0.3083882726 | 1.696719856 | 0.0003770600011 | 0.0003031950833 | 0.0004576266896 |
| 103.37428517419718 | 180.0448801260153 | 5.188047595 | 3.349444726 | 10.68334495 | 0.1792407683 | 0 | 0.84071899 | 0.0003818720107 | 0.0002934382101 | 0.0004875041941 |
| 180.0448801260153 | 226.14746323206396 | 3.231467535 | 2.101233526 | 5.413001843 | 1.711396647e-06 | 0 | 0.8937847613 | 0.0003151379893 | 0.0002276238135 | 0.0004402338687 |
