Cluster
PSZ2G059.81-39.09
Emission Measure Profiles

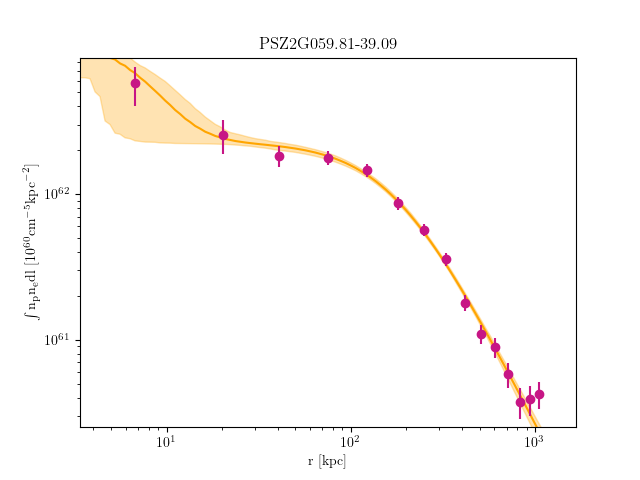

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G059.81-39.09_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.637381209557642 | 4.97637792 | 0.5270957672 | 3.3458243040002e-05 | 2.4658413240001476e-05 | 4.400972794000263e-05 |
| 7.637381209557642 | 15.179266491952587 | 4.97637792 | 0.5270957672 | 4.3694415240002036e-05 | 3.344472857000156e-05 | 5.571143751000259e-05 |
| 15.179266491952587 | 30.73694775494206 | 4.97637792 | 0.5270957672 | 0.00013001867490000651 | 0.0001119020723000056 | 0.00014988910280000752 |
| 30.73694775494206 | 53.71793082098891 | 4.990116752 | 0.5143816241 | 0.0003432699686000151 | 0.00031319389050001376 | 0.0003751039141000165 |
| 53.71793082098891 | 83.52972151255604 | 5.453036547 | 0.4186597251 | 0.0005928551916000188 | 0.0005528917864000176 | 0.0006345660018000201 |
| 83.52972151255604 | 119.57982565210617 | 5.600009058 | 0.3678562043 | 0.0006313622551000289 | 0.0005883081893000269 | 0.0006762474442000309 |
| 119.57982565210617 | 161.27574906210228 | 5.549780065 | 0.3120875134 | 0.0006647668086000329 | 0.0006194558742000306 | 0.0007119160938000352 |
| 161.27574906210228 | 208.02499756500708 | 5.381622608 | 0.2760430416 | 0.0006178139139943888 | 0.0005720976131996104 | 0.0006654191431815408 |
| 208.02499756500708 | 259.2350769832835 | 5.135185687 | 0.2246508347 | 0.0004266426261174341 | 0.000383667148829858 | 0.00047173708783752573 |
| 259.2350769832835 | 314.31349313939455 | 4.843141352 | 0.183172233 | 0.0003464528435274838 | 0.0003033156401487983 | 0.0003919784819299007 |
| 314.31349313939455 | 372.66775185580275 | 4.5299576 | 0.1606753276 | 0.00035684276525545727 | 0.00030777588805566133 | 0.000408595517441066 |
| 372.66775185580275 | 433.7053589549711 | 4.215224563 | 0.1384783703 | 0.0002839145252116549 | 0.0002326881514315448 | 0.00033830096987669717 |
| 433.7053589549711 | 496.8338202593625 | 3.913142958 | 0.1117668707 | 0.00022065354903478477 | 0.0001701272165778619 | 0.00027430328833920786 |
| 496.8338202593625 | 561.4606415914399 | 3.631928987 | 0.09161610484 | 0.0002654866022247354 | 0.0002090176049860637 | 0.00032530798068405506 |
| 561.4606415914399 | 626.9933287736657 | 3.378804505 | 0.06480675981 | 0.00032820738848908873 | 0.00026447351641482604 | 0.0003955568301589116 |
Temperature Profiles

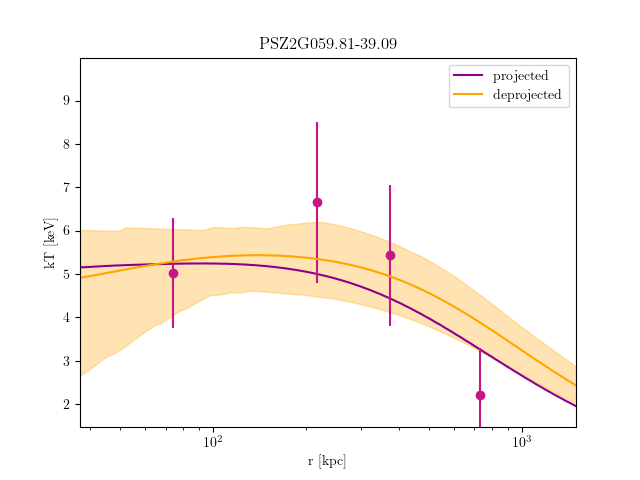

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G059.81-39.09_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 83.529721512554 | 5.017519274 | 4.316489382 | 5.839317035 | 0.5529555689 | 0.3307712199 | 0.8404513217 | 0.001134640073 | 0.001037667847 | 0.001236067688 |
| 83.529721512554 | 161.27574906209833 | 6.660205224 | 5.585892531 | 8.690508919 | 0.1872908261 | 0.002385127534 | 0.3910571607 | 0.001292853998 | 0.001199411816 | 0.001389519313 |
| 161.27574906209833 | 259.2350769832771 | 5.433012085 | 4.429655587 | 6.97352655 | 0.3867959608 | 0.125114154 | 0.7320525294 | 0.001001473402 | 0.0008965308131 | 0.001112197017 |
| 259.2350769832771 | 561.4606415914262 | 2.204830878 | 1.801927526 | 2.589396564 | 6.305928902e-13 | 0 | 0.1415162339 | 0.002187168843 | 0.001850721767 | 0.002614342118 |
