Cluster
PSZ2G065.32-64.84
Emission Measure Profiles

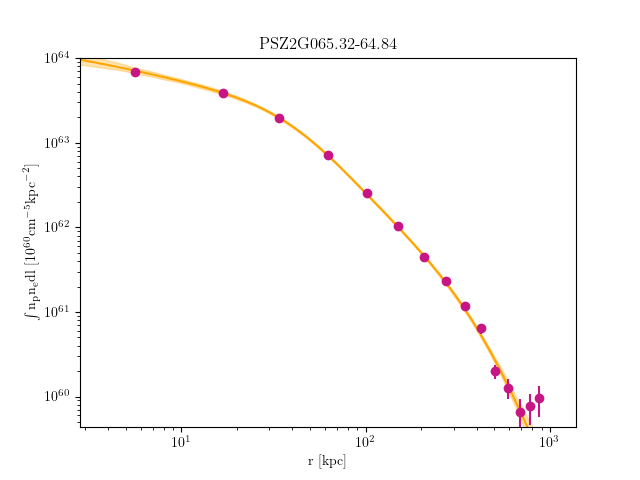

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G065.32-64.84_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 14.302702324416888 | 2.89298435 | 0.3894324932 | 0.0017125745580000885 | 0.0015797672210000814 | 0.0018526417190000957 |
| 14.302702324416888 | 28.4265671937002 | 2.89298435 | 0.3894324932 | 0.002858368285000099 | 0.0026961359550000934 | 0.003026977461000105 |
| 28.4265671937002 | 57.56180057503678 | 3.103312482 | 0.3350774938 | 0.006057549582000346 | 0.005846273591000334 | 0.0062738307130003595 |
| 57.56180057503678 | 100.59882477186501 | 3.242872404 | 0.2609263934 | 0.006046466413000284 | 0.005849735087000275 | 0.006247503994000293 |
| 100.59882477186501 | 156.42806208762332 | 3.227817378 | 0.1968604476 | 0.004481238644000229 | 0.00431011872500022 | 0.0046566786780002384 |
| 156.42806208762332 | 223.93993482574987 | 3.158710348 | 0.1424966722 | 0.003331164273000175 | 0.0031831182100001674 | 0.0034833990260001836 |
| 223.93993482574987 | 302.02486528968325 | 3.061550222 | 0.09838964787 | 0.0022504019180001524 | 0.002126560289000144 | 0.0023783490540001608 |
| 302.02486528968325 | 389.5732757828616 | 2.940653613 | 0.06180937552 | 0.0017190017959268925 | 0.0016030626838825926 | 0.0018392627408990766 |
| 389.5732757828616 | 485.47558860872334 | 2.792712646 | 0.03142261543 | 0.0012231516926517769 | 0.0011156785085172562 | 0.0013352885821070434 |
| 485.47558860872334 | 588.6222260707071 | 2.626670649 | 0.005685868399 | 0.0008742010239788468 | 0.0007683751279260043 | 0.000985249274162665 |
| 588.6222260707071 | 697.903610472251 | 2.452731364 | 1 | 0.000347069072157195 | 0.0002840861373646599 | 0.0004136077797201789 |
| 697.903610472251 | 812.2101641167932 | 2.280049278 | 1 | 0.00027051859006085627 | 0.0002034566343415483 | 0.0003415603336170696 |
| 812.2101641167932 | 930.4323093077725 | 2.115096858 | 1 | 0.00016588565393311895 | 9.573672184978256e-05 | 0.00024055747957461672 |
| 930.4323093077725 | 1051.4604683486273 | 1.962064137 | 1 | 0.00022672374649201023 | 0.00014117361378114502 | 0.00031796383488859315 |
| 1051.4604683486273 | 1174.1850635427952 | 1.939490946 | 1 | 0.00032186689012299416 | 0.0001971702941421101 | 0.00045635618542370926 |
Temperature Profiles

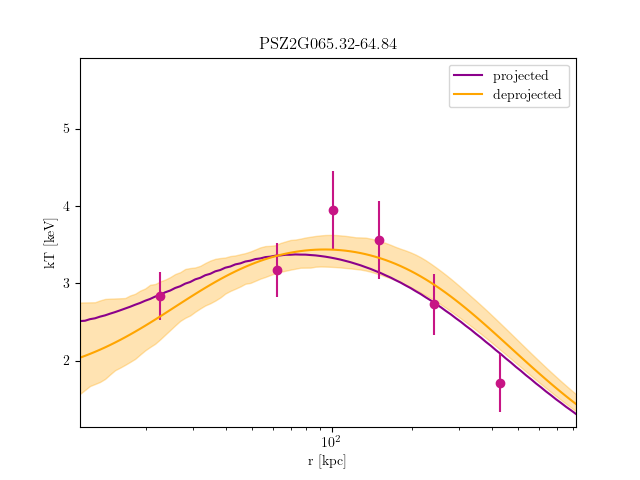

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G065.32-64.84_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 57.56180057503538 | 2.840198393 | 2.697493501 | 2.997757024 | 0.3874262849 | 0.2743531014 | 0.5234232409 | 0.01082482279 | 0.01010444013 | 0.01155600405 |
| 57.56180057503538 | 100.59882477186257 | 3.172609605 | 2.96431046 | 3.420214677 | 0.2146821965 | 0.1141630745 | 0.3404816232 | 0.006230090264 | 0.005820205103 | 0.006646927779 |
| 100.59882477186257 | 156.4280620876195 | 3.944911864 | 3.566065627 | 4.43312464 | 0.1648020967 | 0.05078818077 | 0.3125779843 | 0.004141762154 | 0.003852434891 | 0.004444992712 |
| 156.4280620876195 | 223.9399348257444 | 3.561075449 | 3.208975067 | 4.065694157 | 0.1655407002 | 0.04459260953 | 0.3258723899 | 0.003117217002 | 0.002844150354 | 0.003394840171 |
| 223.9399348257444 | 389.5732757828521 | 2.729723395 | 2.478983064 | 3.055443429 | 5.427480388e-08 | 0 | 0.1098096905 | 0.004360346517 | 0.003963252473 | 0.00466448584 |
| 389.5732757828521 | 697.9036104722339 | 1.70944033 | 1.473234519 | 1.980758129 | 3.689045741e-15 | 0 | 0.03992740964 | 0.003702779165 | 0.003229569145 | 0.004329744224 |
