Cluster
PSZ2G067.52+34.75
Emission Measure Profiles

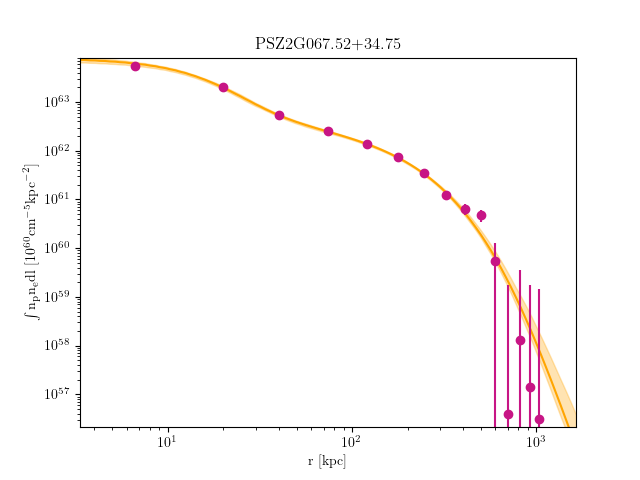

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G067.52+34.75_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.120232513117612 | 2.799936176 | 0.5275898539 | 0.00048481463430002545 | 0.0004433363672000233 | 0.0005288018300000278 |
| 9.120232513117612 | 18.12642789284065 | 2.799936176 | 0.5275898539 | 0.0005269979172000097 | 0.0004835243830000089 | 0.0005729885012000106 |
| 18.12642789284065 | 36.70474244729452 | 3.20167189 | 0.2943658871 | 0.0005994314604000231 | 0.0005512973049000212 | 0.000650171779100025 |
| 36.70474244729452 | 64.14764508518778 | 3.877417249 | 0.2394545583 | 0.0007448908166000155 | 0.0006921486114000145 | 0.0008000887282000166 |
| 64.14764508518778 | 99.74760471522899 | 4.228905242 | 0.1795810089 | 0.0008507085107000341 | 0.0007891827733000317 | 0.0009150528441000367 |
| 99.74760471522899 | 142.7970902461266 | 4.32684083 | 0.1225044233 | 0.0008212649848000328 | 0.0007575554883000302 | 0.0008879624430000355 |
| 142.7970902461266 | 192.58857058658927 | 4.281815105 | 0.08440100472 | 0.0006226143328435116 | 0.0005638622179142205 | 0.0006843966622972327 |
| 192.58857058658927 | 248.4145146453254 | 4.149344172 | 0.06016777204 | 0.0003202539043759964 | 0.00027106688062775093 | 0.0003727131336192042 |
| 248.4145146453254 | 309.56739133104355 | 3.959426862 | 0.04965964798 | 0.00023250522906951386 | 0.00018089617594708294 | 0.00028792986923955314 |
| 309.56739133104355 | 375.33966955245256 | 3.952497194 | 0.04902326601 | 0.00022935774994730707 | 0.00017470692951513351 | 0.00028772033489488156 |
| 375.33966955245256 | 445.0238182182605 | 3.952497194 | 0.04902326601 | 3.395420972205655e-05 | 0.0 | 8.608412892433506e-05 |
| 445.0238182182605 | 517.9123062371762 | 3.952497194 | 0.04902326601 | 2.929331936279655e-08 | 0.0 | 2.6503511948842416e-05 |
| 517.9123062371762 | 593.297602517908 | 3.952497194 | 0.04902326601 | 1.186671198658218e-06 | 0.0 | 6.175986726120026e-05 |
| 593.297602517908 | 670.4721759691649 | 3.952497194 | 0.04902326601 | 1.4716879234626982e-07 | 0.0 | 3.599103214170999e-05 |
| 670.4721759691649 | 748.7284954996547 | 3.952497194 | 0.04902326601 | 3.773049140985017e-08 | 0.0 | 3.511417021804701e-05 |
Temperature Profiles

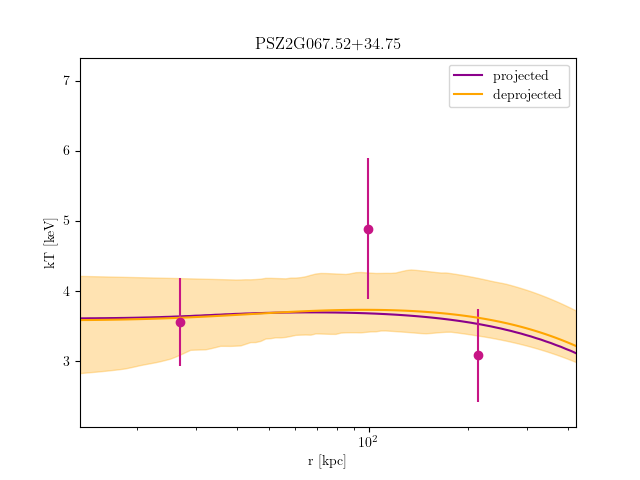

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G067.52+34.75_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 36.704742447293626 | 3.553714233 | 3.21701738 | 4.036980953 | 0.5379919055 | 0.3221603421 | 0.826623684 | 0.001462398164 | 0.00131616392 | 0.001609561631 |
| 36.704742447293626 | 99.74760471522656 | 4.885402415 | 4.146149106 | 5.929550829 | 0.02423293789 | 0 | 0.2018640111 | 0.001605987042 | 0.001473811903 | 0.001746042442 |
| 99.74760471522656 | 192.58857058658458 | 3.076999763 | 2.637826779 | 3.576603981 | 0.1325900296 | 0 | 0.3671979725 | 0.001633218139 | 0.001431387411 | 0.001890076034 |
