Cluster
PSZ2G070.08-31.79
Emission Measure Profiles

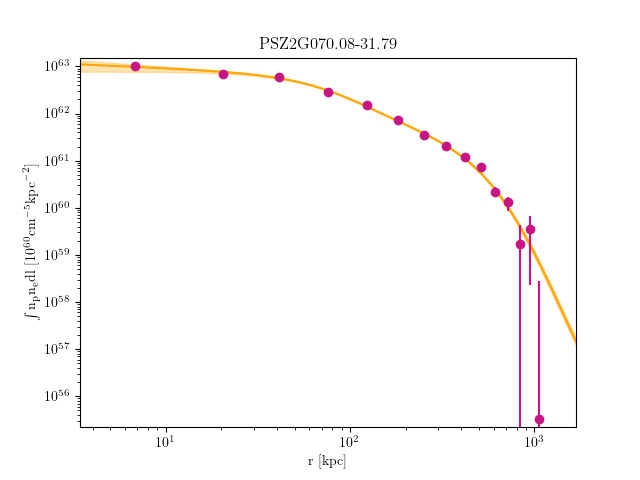

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G070.08-31.79_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.686774762283298 | 4.300830172 | 0.79722058 | 8.516983922000417e-05 | 7.453548765000365e-05 | 9.676111440000475e-05 |
| 8.686774762283298 | 17.26493223976488 | 4.300830172 | 0.79722058 | 0.00016880650330001505 | 0.0001536181711000137 | 0.00018494887180001647 |
| 17.26493223976488 | 34.960274300975456 | 4.679728792 | 0.8734252758 | 0.0005995013172000349 | 0.0005709653463000332 | 0.0006289588169000366 |
| 34.960274300975456 | 61.09889672049958 | 6.101992894 | 0.9743197173 | 0.0008015939173000494 | 0.0007690018495000473 | 0.0008350686262000513 |
| 61.09889672049958 | 95.00689527292182 | 8.576344963 | 1.052258653 | 0.0008653695956856879 | 0.0008313794080880728 | 0.0009002301559367774 |
| 95.00689527292182 | 136.01036573282659 | 11.74095796 | 1.13472577 | 0.0007456358030299528 | 0.000712409571361524 | 0.0007797899297427754 |
| 136.01036573282659 | 183.4354038747986 | 14.89262195 | 1.203762514 | 0.0005798332920588304 | 0.0005466127944254034 | 0.0006141475532760214 |
| 183.4354038747986 | 236.60810547342223 | 17.37526307 | 1.260398451 | 0.0004958584295750089 | 0.00046195520317463337 | 0.0005309660214550113 |
| 236.60810547342223 | 294.8545663032821 | 18.90014801 | 1.311528604 | 0.00040699924516196865 | 0.0003748124518468041 | 0.000440335337870429 |
| 294.8545663032821 | 357.50088213896294 | 19.50134864 | 1.356070122 | 0.000327424400223928 | 0.00029554660895015657 | 0.00036046360021754054 |
| 357.50088213896294 | 423.8731487550488 | 19.41106863 | 1.395289792 | 0.0001249787715714584 | 9.667652034122263e-05 | 0.00015449063389855178 |
| 423.8731487550488 | 493.29746192612464 | 18.87552073 | 1.43011761 | 9.057650509797905e-05 | 6.195172789246136e-05 | 0.00012038504997230095 |
| 493.29746192612464 | 565.0999174267749 | 18.08383836 | 1.461242292 | 1.4361613592932447e-05 | 0.0 | 4.441944777963528e-05 |
| 565.0999174267749 | 638.6066110315843 | 17.18917169 | 1.489198096 | 3.387449675308555e-05 | 2.8854504072378586e-06 | 6.604845480207828e-05 |
| 638.6066110315843 | 713.1436385151367 | 17.0483225 | 1.493320946 | 3.653178008851654e-09 | 0.0 | 6.152244481944628e-06 |
Temperature Profiles

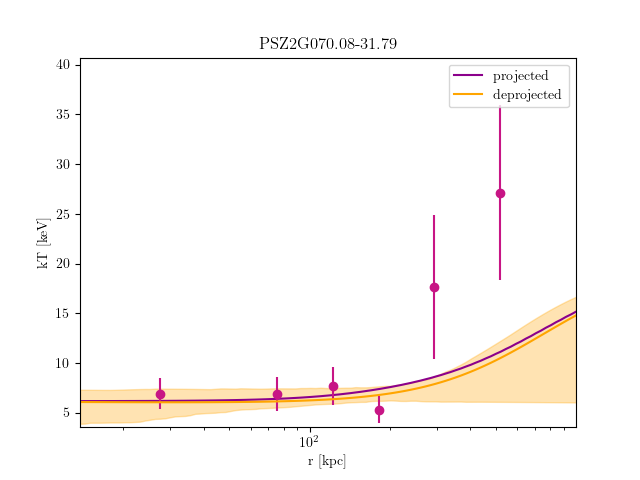

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G070.08-31.79_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 34.9602743009746 | 6.919522036 | 5.923594532 | 8.020181746 | 0.7005732182 | 0.4226936107 | 1.05061034 | 0.0008476125635 | 0.0007831611012 | 0.0009098469116 |
| 34.9602743009746 | 61.09889672049809 | 6.900516378 | 5.961586551 | 8.435714031 | 0.6108686904 | 0.3574847479 | 0.9426306038 | 0.0008574848464 | 0.0007923709127 | 0.0009214554029 |
| 61.09889672049809 | 95.0068952729195 | 7.644856744 | 6.462549726 | 9.533948041 | 0.2703121553 | 0.06614314515 | 0.531187784 | 0.001007287329 | 0.0009410943304 | 0.001071156845 |
| 95.0068952729195 | 136.0103657328233 | 5.309427949 | 4.658420757 | 6.1722066 | 0.7170249622 | 0.4442222376 | 1.073422127 | 0.0008118869663 | 0.000739136238 | 0.0008840975186 |
| 136.0103657328233 | 236.60810547341646 | 17.65746849 | 12.76791662 | 27.03786291 | 3.930513362e-06 | 0 | 0.6120479467 | 0.001287271646 | 0.001171260549 | 0.001353847097 |
| 236.60810547341646 | 423.87314875503847 | 27.13629231 | 17.40034591 | 0 | 4.999974696 | 2.834869842 | 0 | 0.0006555803252 | 0.0005849137944 | 0.0007847275477 |
