Cluster
PSZ2G072.40-78.45
Emission Measure Profiles

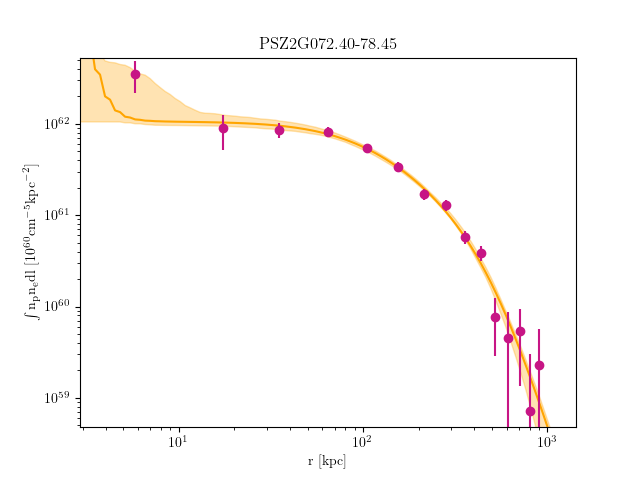

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G072.40-78.45_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.520577745201845 | 3.8136917 | 0.3210308638 | 7.983301454000363e-05 | 5.3795691480002444e-05 | 0.00011283475020000514 |
| 13.520577745201845 | 26.872097527716484 | 3.8136917 | 0.3210308638 | 5.941214930000289e-05 | 3.820077098000186e-05 | 8.64360081400042e-05 |
| 26.872097527716484 | 54.41410875901164 | 3.8136917 | 0.3210308638 | 0.00023847723180002095 | 0.0001992452569000175 | 0.00028204244380002476 |
| 54.41410875901164 | 95.09770954835214 | 3.824474265 | 0.3202770761 | 0.0006173801173000241 | 0.0005570309780000218 | 0.0006815356736000267 |
| 95.09770954835214 | 147.87399800500285 | 4.173190028 | 0.294560353 | 0.0008535109754860672 | 0.0007854908300265902 | 0.000924904407169428 |
| 147.87399800500285 | 211.69407223822833 | 4.271419352 | 0.2499863666 | 0.0009560951109899904 | 0.0008803206298975229 | 0.0010353663444123906 |
| 211.69407223822833 | 285.5090303572936 | 4.226277012 | 0.2083684445 | 0.0007704511372675803 | 0.0006983353240416391 | 0.0008460974364755887 |
| 285.5090303572936 | 368.26997047146347 | 4.095051702 | 0.1699294151 | 0.0008582971332222591 | 0.0007791351796209531 | 0.00094099540409308 |
| 368.26997047146347 | 458.92799069000256 | 3.907380068 | 0.1437712354 | 0.0005335210733475896 | 0.00045999524582670257 | 0.0006108266492573634 |
| 458.92799069000256 | 556.434189122176 | 3.68592743 | 0.1229703439 | 0.00047607192043734543 | 0.0003967008440618907 | 0.0005596384939365968 |
| 556.434189122176 | 659.7396638772482 | 3.45096899 | 0.10103915 | 0.00011811977603009007 | 4.7699140884859455e-05 | 0.00019314212805436183 |
| 659.7396638772482 | 767.795513064484 | 3.301481563 | 0.08773685616 | 8.637707974296893e-05 | 7.427357318130438e-06 | 0.00017019065589363877 |
| 767.795513064484 | 879.5528347931486 | 3.301481563 | 0.08773685616 | 0.00012149386773227663 | 3.360876512541124e-05 | 0.0002144236149565246 |
| 879.5528347931486 | 993.9627271725067 | 3.301481563 | 0.08773685616 | 1.9017070707266283e-05 | 0.0 | 0.00012248563648085975 |
| 993.9627271725067 | 1109.9762883118226 | 3.301481563 | 0.08773685616 | 6.838021094268643e-05 | 0.0 | 0.00021002779335134707 |
Temperature Profiles

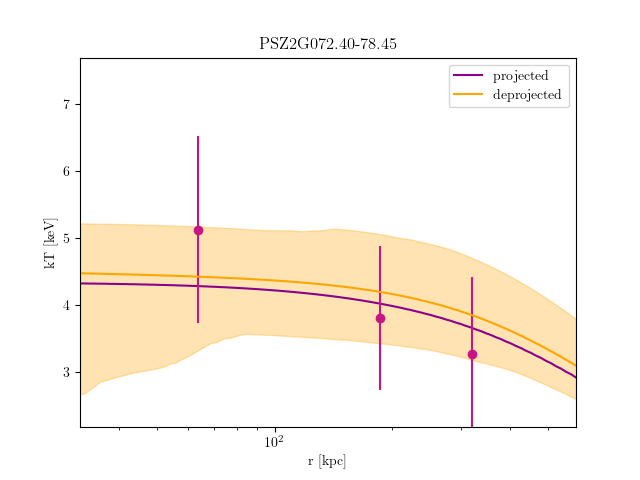

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G072.40-78.45_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 147.87399800499924 | 5.131512282 | 4.285760988 | 6.535509402 | 0.2421930443 | 0.02713864605 | 0.5395452349 | 0.001701414054 | 0.001535403169 | 0.001876136734 |
| 147.87399800499924 | 285.5090303572867 | 3.810031944 | 3.210110999 | 4.599311379 | 0.207160152 | 0 | 0.5146674251 | 0.001791996323 | 0.001570525258 | 0.002046984673 |
| 285.5090303572867 | 458.9279906899913 | 3.275873413 | 2.68701349 | 4.319183668 | 0.03797117511 | 0 | 0.4676370441 | 0.001569928403 | 0.001262426184 | 0.001824410956 |
