Cluster
PSZ2G073.97-27.82
Emission Measure Profiles

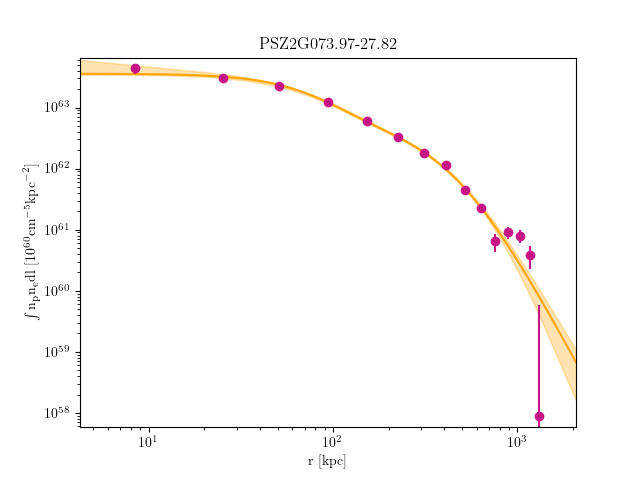

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G073.97-27.82_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.255860993915208 | 4.154298452 | 0.3353560122 | 0.000379111215100016 | 0.00031840028320001345 | 0.00044716954440001885 |
| 9.255860993915208 | 18.3959889894308 | 4.154298452 | 0.3353560122 | 0.0007821117928000497 | 0.0006930154838000441 | 0.0008785317150000558 |
| 18.3959889894308 | 37.2505847214946 | 4.154298452 | 0.3353560122 | 0.002346172611000105 | 0.002177489551000098 | 0.0025232894820001136 |
| 37.2505847214946 | 65.10159528734917 | 4.765873022 | 0.284906456 | 0.003575935991367402 | 0.0033519265794448158 | 0.0038095636426104633 |
| 65.10159528734917 | 101.23096778423711 | 5.198534788 | 0.2434343333 | 0.00362891607003318 | 0.0034098857952225524 | 0.0038568814309391996 |
| 101.23096778423711 | 144.92064930940086 | 5.318109671 | 0.2076575535 | 0.0035159460894185943 | 0.0033048458934942745 | 0.003735386137344763 |
| 144.92064930940086 | 195.4525869600831 | 5.262136535 | 0.1654867486 | 0.0030834471597912714 | 0.0028719464325048802 | 0.0033042482126486427 |
| 195.4525869600831 | 252.10872783352627 | 5.098743439 | 0.1267609707 | 0.002965531463259469 | 0.002756243243535005 | 0.0031839080160903565 |
| 252.10872783352627 | 314.17101902697294 | 4.864903034 | 0.09781568229 | 0.0016081157594712058 | 0.0014424628386905227 | 0.0017829728338363536 |
| 314.17101902697294 | 380.92140763766605 | 4.588107944 | 0.07468606 | 0.0010491683315855768 | 0.0009009748249830207 | 0.0012072653231987357 |
| 380.92140763766605 | 451.6418407628475 | 4.291613615 | 0.04862433649 | 0.00038365514434477875 | 0.00026346377099473704 | 0.0005152185444101723 |
| 451.6418407628475 | 525.6142654997603 | 3.993335495 | 0.03158137241 | 0.0006619721852348774 | 0.0005183142203812022 | 0.0008167595807838194 |
| 525.6142654997603 | 602.1206289456469 | 3.707236647 | 0.01918643095 | 0.0006978912398665937 | 0.0005414849946683689 | 0.0008661453011960714 |
| 602.1206289456469 | 680.44287819775 | 3.44084418 | 0.009631830574 | 0.00039256564016598185 | 0.00023670499421051956 | 0.0005622040428234508 |
| 680.44287819775 | 759.8629603533117 | 3.198419298 | 0.002065086953 | 1.009416051942919e-06 | 0.0 | 0.00013190254870543288 |
Temperature Profiles

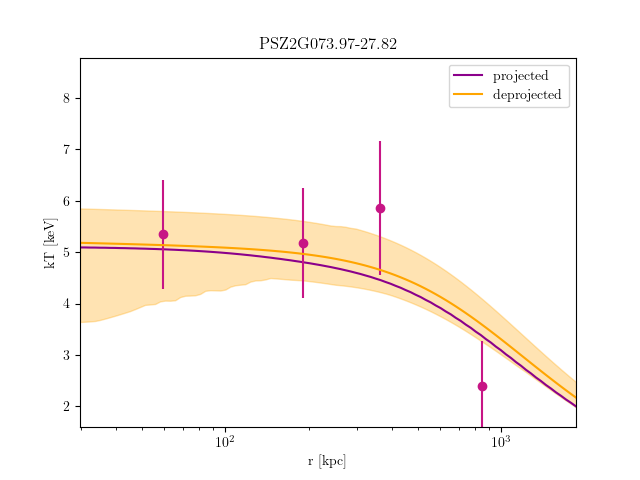

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G073.97-27.82_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 65.10159528734758 | 5.350326679 | 4.708658495 | 6.203203444 | 0.3518965697 | 0.1912663592 | 0.5521534057 | 0.00672276881 | 0.006253468996 | 0.007215319322 |
| 65.10159528734758 | 144.9206493093973 | 5.181333231 | 4.573066121 | 6.083560442 | 0.1946928478 | 0.06377903195 | 0.3565501088 | 0.007183217989 | 0.006677417074 | 0.007708304048 |
| 144.9206493093973 | 252.10872783352013 | 5.857576327 | 4.851876952 | 6.991436928 | 0.0001118274073 | 0 | 0.154484229 | 0.006031454467 | 0.005586142635 | 0.006536462185 |
| 252.10872783352013 | 680.4428781977334 | 2.394175093 | 1.977855659 | 2.885455221 | 0.00274926884 | 0 | 0.4287304783 | 0.006429125925 | 0.005060872859 | 0.007343983778 |
