Cluster
PSZ2G080.41-33.24
Emission Measure Profiles

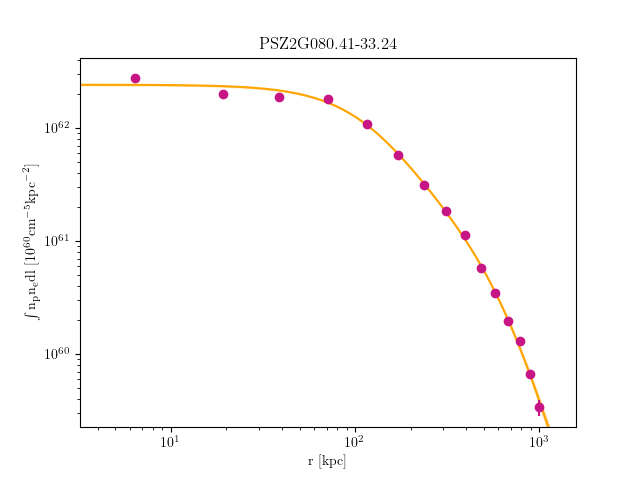

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G080.41-33.24_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.307248998795428 | 7.490894676 | 0.2431164287 | 5.936435473000318e-05 | 5.661222141000303e-05 | 6.219598860000333e-05 |
| 13.307248998795428 | 26.448107444827226 | 7.123805043 | 0.2877882349 | 0.00012536270640000366 | 0.00012140981410000354 | 0.00012939511770000377 |
| 26.448107444827226 | 53.55555864176522 | 7.585690259 | 0.3140486324 | 0.0004926458879000266 | 0.00048487806010002614 | 0.000500532714800027 |
| 53.55555864176522 | 93.59725035597249 | 8.182700514 | 0.3411455769 | 0.0012708116050000717 | 0.0012575743940000709 | 0.0012841831840000725 |
| 93.59725035597249 | 145.54083035381225 | 8.479928033 | 0.3554108216 | 0.0016264286870000912 | 0.0016116228510000903 | 0.001641364096000092 |
| 145.54083035381225 | 208.35394640164733 | 8.050398424 | 0.3671382117 | 0.001545698819913258 | 0.0015314450960873891 | 0.0015600753362957859 |
| 208.35394640164733 | 281.00424626584106 | 7.192324706 | 0.3789845652 | 0.0013474484187445091 | 0.0013339063497041692 | 0.0013611120648883697 |
| 281.00424626584106 | 362.45937771275646 | 6.280971004 | 0.3862759025 | 0.00114947025224239 | 0.001136549561163577 | 0.0011625133466511585 |
| 362.45937771275646 | 451.68698850875643 | 5.494637428 | 0.3946993215 | 0.0009769501507493538 | 0.0009637905302999831 | 0.000990248601957629 |
| 451.68698850875643 | 547.6547264202046 | 4.809184742 | 0.4014072715 | 0.0006615237988695874 | 0.0006489166648130559 | 0.0006742929975271012 |
| 547.6547264202046 | 649.3302392134633 | 4.256533574 | 0.4077467145 | 0.0005030408480755786 | 0.0004899625719054488 | 0.0005163161801451836 |
| 649.3302392134633 | 755.681174654896 | 3.809031131 | 0.4140395879 | 0.00035207225291102994 | 0.00033816749947299476 | 0.0003661511296115226 |
| 755.681174654896 | 865.6751805108662 | 3.466906503 | 0.4174681063 | 0.00027889907703502955 | 0.0002635043932794115 | 0.0002945174127792453 |
| 865.6751805108662 | 978.2799045477367 | 3.163351637 | 0.4206120966 | 0.00016583660517627754 | 0.00015031055561534195 | 0.0001816211023065632 |
| 978.2799045477367 | 1092.4629945318698 | 3.15190285 | 0.4207777527 | 9.57935211218574e-05 | 7.967298473863591e-05 | 0.00011219928783301135 |
Temperature Profiles

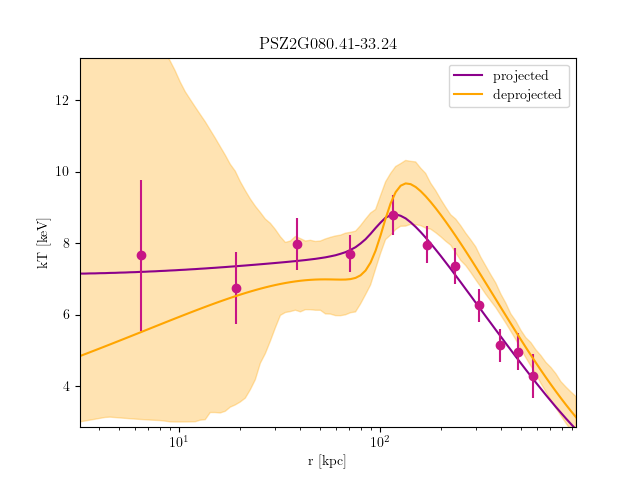

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G080.41-33.24_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 13.307248998795103 | 7.664704231 | 6.264936691 | 10.42955428 | 9.816104915e-09 | 0 | 0.1039291393 | 6.233091422e-05 | 5.929214009e-05 | 6.544587468e-05 |
| 13.307248998795103 | 26.44810744482658 | 6.740362899 | 5.896877364 | 7.781529793 | 0.602119508 | 0.3556202648 | 0.9148134873 | 0.0001177456345 | 0.000109973614 | 0.0001252457816 |
| 26.44810744482658 | 53.555558641763916 | 7.986533911 | 7.3921049 | 8.653330994 | 0.2460533904 | 0.1459204322 | 0.3560823258 | 0.0004983397246 | 0.0004852924461 | 0.0005111056448 |
| 53.555558641763916 | 93.5972503559702 | 7.709178221 | 7.367505651 | 8.098134591 | 0.3567923704 | 0.286154712 | 0.4326441947 | 0.001268965421 | 0.001246190008 | 0.001291456211 |
| 93.5972503559702 | 145.5408303538087 | 8.792823888 | 8.393742019 | 9.230623648 | 0.3778643253 | 0.3064142848 | 0.4535282386 | 0.001619530292 | 0.001593239836 | 0.001645488153 |
| 145.5408303538087 | 208.35394640164225 | 7.953235135 | 7.599151439 | 8.336036759 | 0.3210128766 | 0.2569386786 | 0.388908412 | 0.001556793565 | 0.001532147025 | 0.001581130035 |
| 208.35394640164225 | 281.00424626583424 | 7.355842714 | 7.007295147 | 7.711091596 | 0.4304435253 | 0.354609336 | 0.5113086173 | 0.001327688685 | 0.001302974726 | 0.001352084271 |
| 281.00424626583424 | 362.45937771274765 | 6.25832543 | 5.981642207 | 6.561658203 | 0.3503176624 | 0.2762914018 | 0.4297362958 | 0.001156943469 | 0.001132764397 | 0.001180885402 |
| 362.45937771274765 | 451.6869885087454 | 5.138616547 | 4.881764778 | 5.419136351 | 0.3122898641 | 0.2324678522 | 0.3993543445 | 0.0009983709613 | 0.0009714824934 | 0.001025441473 |
| 451.6869885087454 | 547.6547264201912 | 4.9603185 | 4.607717684 | 5.339964595 | 0.4988996608 | 0.3612406983 | 0.654676505 | 0.0006420238158 | 0.0006143872273 | 0.0006700763062 |
| 547.6547264201912 | 649.3302392134475 | 4.280874893 | 3.802957894 | 4.776259782 | 0.3259888854 | 0.1572683568 | 0.5268514271 | 0.0005109645816 | 0.0004774783558 | 0.000548052027 |
