Cluster
PSZ2G083.86+85.09
Emission Measure Profiles

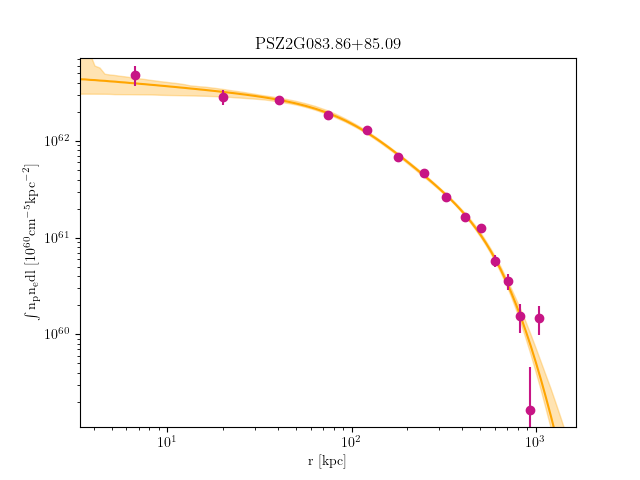

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G083.86+85.09_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.859579282215066 | 5.150804082 | 0.593401207 | 3.977188339000175e-05 | 3.1364129670001373e-05 | 4.9500105110002174e-05 |
| 8.859579282215066 | 17.608380574617634 | 5.150804082 | 0.593401207 | 6.875936016000362e-05 | 5.7807684970003044e-05 | 8.095433151000426e-05 |
| 17.608380574617634 | 35.65573303941236 | 5.150804082 | 0.593401207 | 0.00026765765860001445 | 0.00024497362150001324 | 0.00029163669870001577 |
| 35.65573303941236 | 62.31432659005125 | 5.991241377 | 0.4751614774 | 0.000511332170300019 | 0.0004806752218000179 | 0.0005432016243000202 |
| 62.31432659005125 | 96.89685113998632 | 6.616838213 | 0.4238222488 | 0.0007393947908371452 | 0.0007027381877275351 | 0.000777211150271226 |
| 96.89685113998632 | 138.71599660266946 | 6.838927422 | 0.3680840331 | 0.0007049730449058924 | 0.0006674727869604853 | 0.0007436831613715556 |
| 138.71599660266946 | 187.0844528915528 | 6.807269423 | 0.3217331048 | 0.000769873884884494 | 0.0007291209960979795 | 0.0008118691592644699 |
| 187.0844528915528 | 241.31490992008818 | 6.644379267 | 0.2774887254 | 0.0006440878243492398 | 0.000604810876187989 | 0.0006846208153564683 |
| 241.31490992008818 | 300.7200576017276 | 6.381278553 | 0.2411008713 | 0.0005537822801025439 | 0.00051460207563349 | 0.0005942575081376926 |
| 300.7200576017276 | 364.6125858499234 | 6.053316601 | 0.2248430051 | 0.0005570766510634541 | 0.0005135790239343146 | 0.000602044551694022 |
| 364.6125858499234 | 432.305184578127 | 5.68712505 | 0.2008093905 | 0.00032449505548912404 | 0.00028303144586093145 | 0.00036768998189705036 |
| 432.305184578127 | 503.1105436997907 | 5.31478857 | 0.1771633997 | 0.00024478429452584534 | 0.00020236409554480358 | 0.00028904363226620045 |
| 503.1105436997907 | 576.3413531283666 | 4.994597706 | 0.1663529385 | 0.00012738274807513167 | 8.622323114562833e-05 | 0.0001704324234645933 |
| 576.3413531283666 | 651.3103027773066 | 4.994597706 | 0.1663529385 | 1.575168066971777e-05 | 0.0 | 5.726808957344686e-05 |
| 651.3103027773066 | 727.3300825600625 | 4.994597706 | 0.1663529385 | 0.00016160486619501503 | 0.00010866661106593721 | 0.00021691607845568918 |
Temperature Profiles

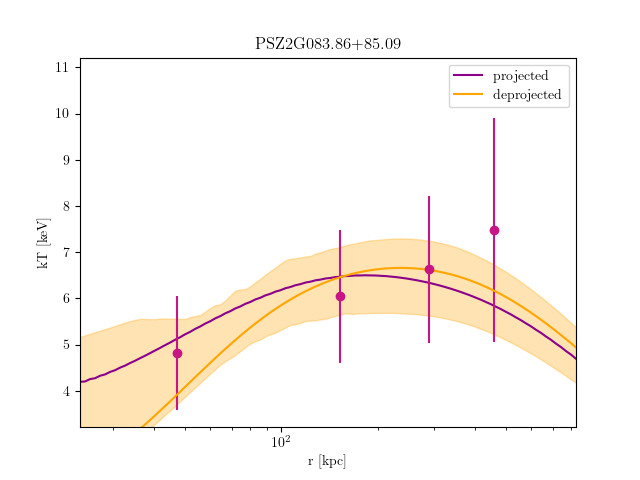

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G083.86+85.09_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 62.31432659004973 | 4.819584589 | 4.27754076 | 5.48629921 | 0.6993926144 | 0.438661654 | 1.042169305 | 0.0008813337195 | 0.0008002535016 | 0.0009621411652 |
| 62.31432659004973 | 138.71599660266608 | 6.045160072 | 5.228283231 | 7.162454967 | 0.02715750197 | 0 | 0.1755698949 | 0.001605882232 | 0.001515944916 | 0.001694877127 |
| 138.71599660266608 | 241.3149099200823 | 6.632981222 | 5.638858118 | 7.996642977 | 0.1443347176 | 0 | 0.3615673884 | 0.001466485171 | 0.001370771174 | 0.001563407385 |
| 241.3149099200823 | 364.6125858499145 | 7.474845014 | 5.685750587 | 10.03504072 | 0.4517142202 | 0.1090791523 | 0.8921131418 | 0.001042282276 | 0.0009439905809 | 0.001141108746 |
