Cluster
PSZ2G092.16-66.01
Emission Measure Profiles

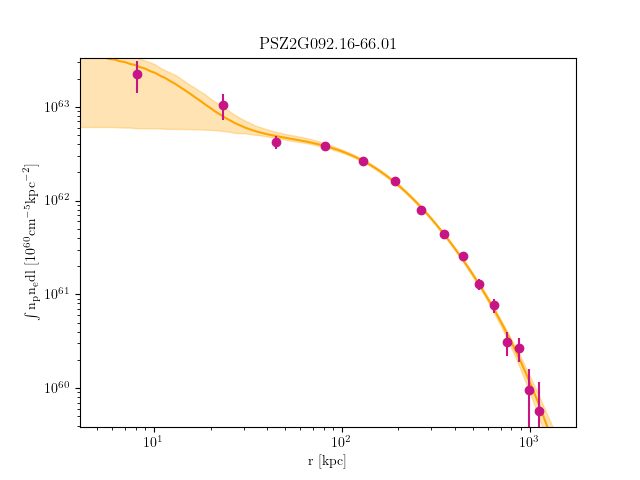

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G092.16-66.01_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.86646014985514 | 7.421134037 | 0.5234341087 | 0.00017913859850000695 | 0.00012178456050000471 | 0.00025180285020000976 |
| 8.86646014985514 | 16.634560026092053 | 7.421134037 | 0.5234341087 | 0.00021201240880001058 | 0.0001545826873000077 | 0.00028168210120001403 |
| 16.634560026092053 | 32.658885160773025 | 7.421134037 | 0.5234341087 | 0.00034292087930001385 | 0.000296244305400012 | 0.00039417969890001597 |
| 32.658885160773025 | 56.32916984779654 | 7.461752158 | 0.4844294662 | 0.0008273744624000414 | 0.0007703583220000386 | 0.0008870527964000445 |
| 56.32916984779654 | 87.0351483810611 | 8.10589005 | 0.4745489063 | 0.00119245513600003 | 0.0011269082650000285 | 0.0012603858840000317 |
| 87.0351483810611 | 124.1665550544651 | 8.280446232 | 0.437896916 | 0.0013069551350000663 | 0.001237579407000063 | 0.00137870180600007 |
| 124.1665550544651 | 167.1131241619071 | 8.188263631 | 0.4018052942 | 0.001013313831000052 | 0.0009533519501000489 | 0.001075474178000055 |
| 167.1131241619071 | 215.26458999728558 | 7.931472086 | 0.3748907759 | 0.0008197379102000374 | 0.0007607181624000347 | 0.0008812143728000403 |
| 215.26458999728558 | 268.01068685449883 | 7.566701496 | 0.3445815422 | 0.0006653401418000263 | 0.0006092240919000242 | 0.0007239602145000287 |
| 268.01068685449883 | 324.7411490274457 | 7.135314923 | 0.3295876689 | 0.0004428237269000096 | 0.0003928701793000085 | 0.0004953303638000107 |
| 324.7411490274457 | 384.84571081002434 | 6.673713394 | 0.3234931188 | 0.0003338123808000141 | 0.00028540355760001205 | 0.0003849259916000163 |
| 384.84571081002434 | 447.71410649613324 | 6.210033566 | 0.3102272924 | 0.00016431174900000852 | 0.00012105252600000627 | 0.0002103683831000109 |
| 447.71410649613324 | 512.7360703796711 | 5.796766797 | 0.2974685694 | 0.00017185774687808567 | 0.0001253271863146974 | 0.00022130217080238546 |
| 512.7360703796711 | 579.3013367545364 | 5.796766797 | 0.2974685694 | 7.129871787139547e-05 | 2.4315263863368628e-05 | 0.0001215326069158245 |
| 579.3013367545364 | 646.7996399146272 | 5.796766797 | 0.2974685694 | 4.870961543844591e-05 | 1.2590636734469875e-06 | 9.928772530824562e-05 |
Temperature Profiles

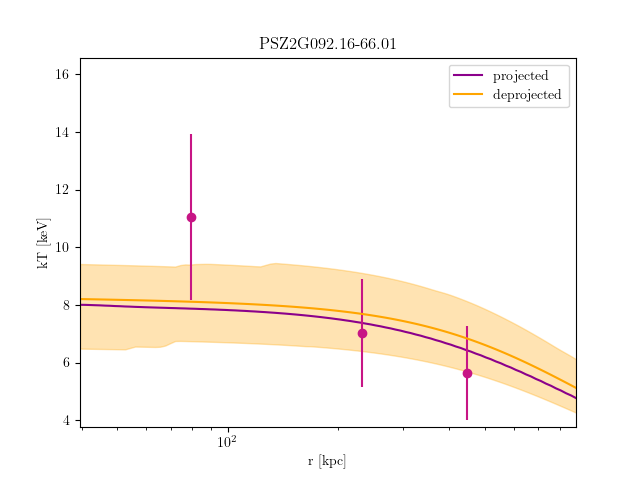

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G092.16-66.01_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 87.03514838105897 | 11.05504936 | 9.050018916 | 14.19156521 | 0.5754774001 | 0.2765289774 | 0.9552380196 | 0.0025022329 | 0.002323726527 | 0.002674704735 |
| 87.03514838105897 | 167.11312416190302 | 7.026237993 | 6.016008872 | 8.673541368 | 0.2042598778 | 0.0386548006 | 0.4033339338 | 0.002464966181 | 0.002302867235 | 0.002626919343 |
| 167.11312416190302 | 324.7411490274378 | 5.637216488 | 4.806280814 | 6.651055664 | 0.4989830973 | 0.2706704939 | 0.7846200226 | 0.001940169304 | 0.001779315942 | 0.002108319937 |
