Cluster
PSZ2G099.57-58.64
Emission Measure Profiles

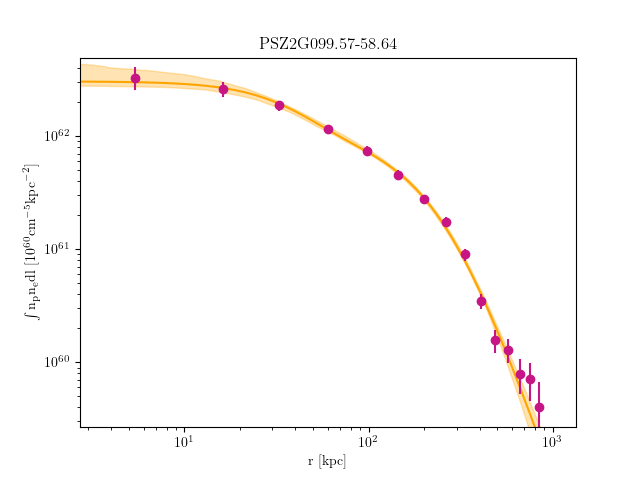

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G099.57-58.64_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 12.81610233581589 | 2.423154494 | 0.725159567 | 6.371760399000348e-05 | 5.076778511000277e-05 | 7.857521652000429e-05 |
| 12.81610233581589 | 25.4719552953614 | 2.423154494 | 0.725159567 | 0.00014831424040000497 | 0.00012825378640000427 | 0.00017029902030000569 |
| 25.4719552953614 | 51.57891914901289 | 2.423154494 | 0.725159567 | 0.00044146166000001995 | 0.0004059237518000183 | 0.0004789194322000216 |
| 51.57891914901289 | 90.14274393014719 | 2.778634558 | 0.5794405847 | 0.0007402068493000315 | 0.0006927149062000295 | 0.0007896658296000337 |
| 90.14274393014719 | 140.16917967214118 | 3.030067982 | 0.4294208538 | 0.0010096828180000427 | 0.0009495419843000403 | 0.0010720700110000455 |
| 140.16917967214118 | 200.6639764083715 | 3.100734111 | 0.3023340318 | 0.0011055682994343583 | 0.0010329020758966718 | 0.001181123840970439 |
| 200.6639764083715 | 270.6328841722152 | 3.068524273 | 0.1987890128 | 0.0010704499294483636 | 0.0009957988156501366 | 0.0011480523785296847 |
| 270.6328841722152 | 349.0816529970489 | 2.973496638 | 0.1070717116 | 0.0009993620998178885 | 0.0009234793139424471 | 0.0010783108642651047 |
| 349.0816529970489 | 435.01603291624934 | 2.837474366 | 0.02019519388 | 0.0007158382412642923 | 0.0006435182912692079 | 0.0007915295286101496 |
| 435.01603291624934 | 527.4417739631939 | 2.67612881 | 1 | 0.00036521518768172146 | 0.00031850516564519126 | 0.000414211913564205 |
| 527.4417739631939 | 625.3646261712587 | 2.50326253 | 1 | 0.00020819105473354784 | 0.00016417098702412042 | 0.0002547041614748865 |
| 625.3646261712587 | 727.7903395738206 | 2.329471596 | 1 | 0.00021126299013806828 | 0.0001642736831010742 | 0.00026078973209410185 |
| 727.7903395738206 | 833.7246642042569 | 2.16241996 | 1 | 0.00015437939113158424 | 0.00010485844238644537 | 0.00020666595516573733 |
| 833.7246642042569 | 942.1733500959446 | 2.00707211 | 1 | 0.00016223013578236392 | 0.00010483893365554434 | 0.00022306025099681575 |
| 942.1733500959446 | 1052.1421472822594 | 1.86564411 | 1 | 0.00010331916989105075 | 3.541506256950547e-05 | 0.00017594294109176127 |
Temperature Profiles

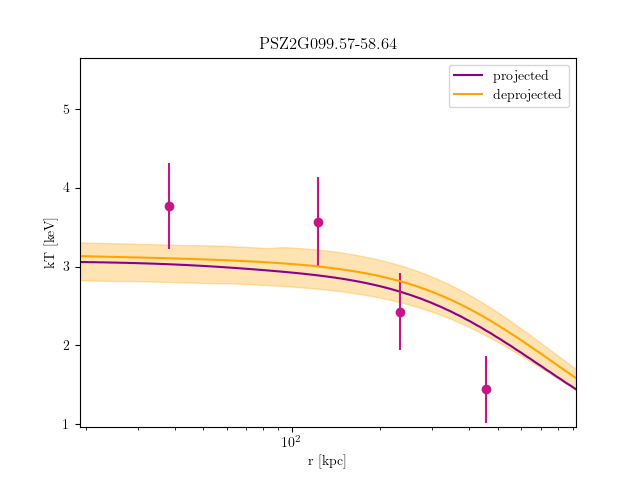

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G099.57-58.64_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 90.142743930145 | 3.765670841 | 3.401682422 | 4.212326404 | 0.7489426449 | 0.4812547678 | 1.106754151 | 0.001213601969 | 0.001084344961 | 0.001343640352 |
| 90.142743930145 | 200.6639764083666 | 3.566167421 | 3.158072286 | 4.019009616 | 0.06232287461 | 0 | 0.2324972885 | 0.002254182966 | 0.002066758656 | 0.002466770403 |
| 200.6639764083666 | 349.08165299704035 | 2.428962928 | 2.235015353 | 2.891288771 | 0.0001106492989 | 0 | 0.2028110952 | 0.002493257602 | 0.002069050722 | 0.002717102553 |
| 349.08165299704035 | 727.7903395738028 | 1.446235337 | 1.268651234 | 1.692282959 | 7.053696804e-16 | 0 | 0.01160641842 | 0.003230939617 | 0.002758827104 | 0.003764478349 |
