Cluster
PSZ2G101.52-29.98
Emission Measure Profiles

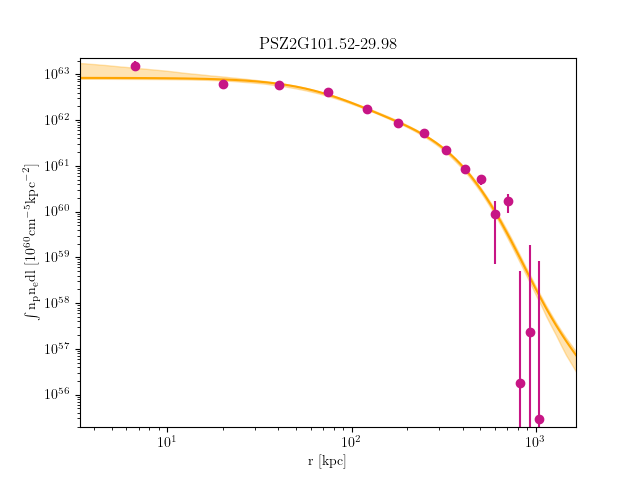

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G101.52-29.98_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.495354212496581 | 5.528835032 | 0.1747453384 | 8.019336402000473e-05 | 6.322471531000374e-05 | 9.98351303800059e-05 |
| 7.495354212496581 | 14.896988368301551 | 5.528835032 | 0.1747453384 | 9.464029276000422e-05 | 7.63259929800034e-05 | 0.00011552396280000514 |
| 14.896988368301551 | 30.165354394773775 | 5.528835032 | 0.1747453384 | 0.00036212399650002047 | 0.0003217570652000182 | 0.000405612078300023 |
| 30.165354394773775 | 52.71897631112482 | 6.335556174 | 0.2108224911 | 0.0006987980118000305 | 0.0006380679191000277 | 0.0007630920729000332 |
| 52.71897631112482 | 81.97637813656628 | 6.909005577 | 0.2198100694 | 0.0006399975608000324 | 0.0005883983627000298 | 0.0006943065529000352 |
| 81.97637813656628 | 117.35608389030956 | 7.070110085 | 0.2284114319 | 0.0005508384573000335 | 0.0005056403165000307 | 0.0005982990824000363 |
| 117.35608389030956 | 158.2766175915664 | 6.997529877 | 0.2266645269 | 0.0005295863164122866 | 0.0004833556433607378 | 0.000578094557635893 |
| 158.2766175915664 | 204.15650325954823 | 6.781756871 | 0.2345912022 | 0.00033605444794860905 | 0.00029918718374254117 | 0.0003749777602602246 |
| 204.15650325954823 | 254.41426491346652 | 6.471918067 | 0.2408492527 | 0.0001835401461950877 | 0.00015276240218828972 | 0.0002163528287966455 |
| 254.41426491346652 | 308.4684265725332 | 6.104287805 | 0.2463733744 | 0.00014481459607919726 | 0.000113819115514811 | 0.00017789501990670862 |
| 308.4684265725332 | 365.73751225595936 | 5.980486672 | 0.2487458027 | 3.1332775047580576e-05 | 3.869888680469476e-06 | 6.098032390942267e-05 |
| 365.73751225595936 | 425.6400459829566 | 5.980486672 | 0.2487458027 | 7.38110184371387e-05 | 4.193553065918996e-05 | 0.00010786942347310208 |
| 425.6400459829566 | 487.5945517727369 | 5.980486672 | 0.2487458027 | 9.310243428359763e-09 | 0.0 | 5.137019147647047e-06 |
| 487.5945517727369 | 551.0195536445117 | 5.980486672 | 0.2487458027 | 1.3878172779849944e-07 | 0.0 | 2.199428936585688e-05 |
| 551.0195536445117 | 615.3335756174919 | 5.980486672 | 0.2487458027 | 2.003298360979638e-09 | 0.0 | 1.1512358079384008e-05 |
Temperature Profiles

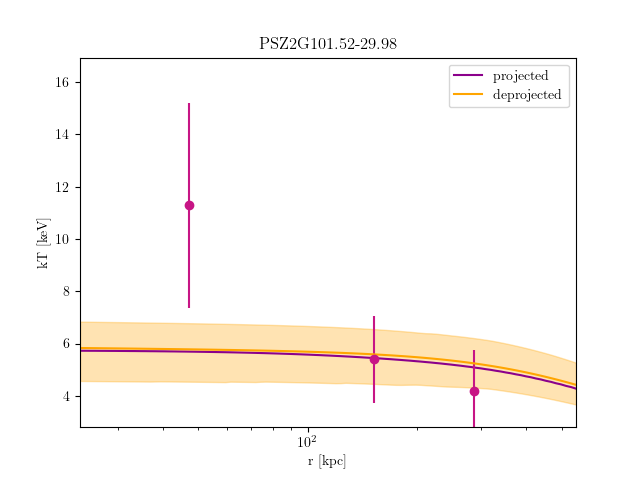

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G101.52-29.98_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 52.718976311123534 | 11.29394801 | 8.389101136 | 15.86562307 | 2.397729223e-08 | 0 | 0.1546869666 | 0.001117165308 | 0.001045509467 | 0.001193428012 |
| 52.718976311123534 | 117.3560838903067 | 5.395610055 | 4.465754042 | 6.802535141 | 0.2975148146 | 0.08257007193 | 0.5751058937 | 0.001205197458 | 0.001088261469 | 0.001330326861 |
| 117.3560838903067 | 204.15650325954323 | 4.20211312 | 3.335614276 | 5.347206454 | 0.18714081 | 0 | 0.5425393304 | 0.0009723004552 | 0.0008478187783 | 0.00112364567 |
