Cluster
PSZ2G113.29-29.69
Emission Measure Profiles

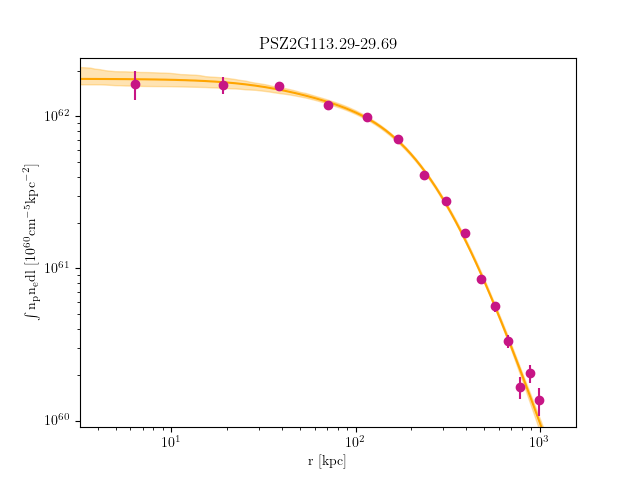

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G113.29-29.69_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.2203624345726 | 5.803592965 | 0.1932672454 | 3.2849965910001515e-05 | 2.6321592220001216e-05 | 4.0336390510001866e-05 |
| 13.2203624345726 | 26.275420724507704 | 5.803592965 | 0.1932672454 | 9.624112902000562e-05 | 8.476471402000495e-05 | 0.00010867612340000635 |
| 26.275420724507704 | 53.20588017059222 | 5.803592965 | 0.1932672454 | 0.0003913102607000237 | 0.00036766181560002223 | 0.00041591680280002514 |
| 53.20588017059222 | 92.9861290412011 | 5.798453341 | 0.1914560702 | 0.0007963925498587267 | 0.0007612288253835258 | 0.0008325708390567508 |
| 92.9861290412011 | 144.59055560470935 | 5.719632331 | 0.1621284265 | 0.0014127628854078375 | 0.0013560056379287558 | 0.001470999178565454 |
| 144.59055560470935 | 206.99354812949167 | 5.478655433 | 0.1422787768 | 0.001804819064554603 | 0.0017446479265500923 | 0.001866259207936452 |
| 206.99354812949167 | 279.1694948839233 | 4.611688562 | 0.1243501274 | 0.0016684238720121338 | 0.0016097812507255584 | 0.0017283258133735835 |
| 279.1694948839233 | 360.0927841363789 | 3.421367258 | 0.1026394488 | 0.001665824033663821 | 0.0016036956695203788 | 0.0017293208427163064 |
| 360.0927841363789 | 448.7378041552334 | 2.799653715 | 0.08631743128 | 0.0014283667685506386 | 0.0013668627083603378 | 0.001491376547720208 |
| 448.7378041552334 | 544.0789432088623 | 2.537075895 | 0.07571826384 | 0.000932610450311576 | 0.0008775907523196487 | 0.0009892767218329169 |
| 544.0789432088623 | 645.0905895656397 | 2.340271667 | 0.06528678154 | 0.0007822838681168477 | 0.0007272979070382041 | 0.0008390126999046305 |
| 645.0905895656397 | 750.7471314939407 | 2.165977408 | 0.05820395001 | 0.0005660099839767155 | 0.0005129711054253172 | 0.0006209433482926163 |
| 750.7471314939407 | 860.0229572621408 | 2.00772721 | 0.04979319524 | 0.0003381696750811774 | 0.0002858740938612748 | 0.00039264635937729303 |
| 860.0229572621408 | 971.892455138615 | 1.863999617 | 0.04265280231 | 0.0004857308565558082 | 0.0004209551201791993 | 0.0005531110208700855 |
| 971.892455138615 | 1085.330013391737 | 1.836483826 | 0.04192864636 | 0.00036668705762421446 | 0.0002904871650183871 | 0.0004466886902786983 |
Temperature Profiles

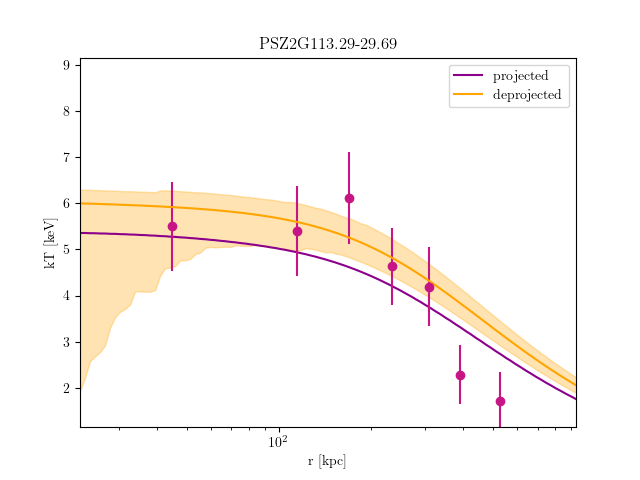

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G113.29-29.69_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 92.98612904119882 | 5.496700871 | 4.861594923 | 6.377781767 | 0.06989811021 | 0 | 0.2288000672 | 0.001373644316 | 0.001298861906 | 0.001448158487 |
| 92.98612904119882 | 144.59055560470583 | 5.394674131 | 4.688911446 | 6.227440208 | 0.2341001643 | 0.04869297359 | 0.4771251272 | 0.00139506348 | 0.00129526234 | 0.001494594485 |
| 144.59055560470583 | 206.9935481294866 | 6.103001097 | 5.407486681 | 6.990528105 | 0.2906204397 | 0.101651096 | 0.5232333235 | 0.001720087611 | 0.001616215601 | 0.001819754423 |
| 206.9935481294866 | 279.16949488391646 | 4.631916631 | 4.128110212 | 5.268414205 | 0.2001863351 | 0.04599247823 | 0.3936723701 | 0.001629445563 | 0.001520474408 | 0.001739458959 |
| 279.16949488391646 | 360.0927841363701 | 4.19587551 | 3.692016976 | 4.905061761 | 0.0008771442645 | 0 | 0.1762412487 | 0.001646104419 | 0.001523516103 | 0.001722655233 |
| 360.0927841363701 | 448.7378041552225 | 2.287123542 | 2.037807775 | 2.470166481 | 8.55878918e-11 | 0 | 0.0406310312 | 0.001638354726 | 0.001531864723 | 0.001723149505 |
| 448.7378041552225 | 645.090589565624 | 1.722170386 | 1.57451355 | 1.929487988 | 3.600505284e-14 | 0 | 0.01355026528 | 0.00216370597 | 0.001998313518 | 0.002334918352 |
