Cluster
PSZ2G113.81+44.35
Emission Measure Profiles

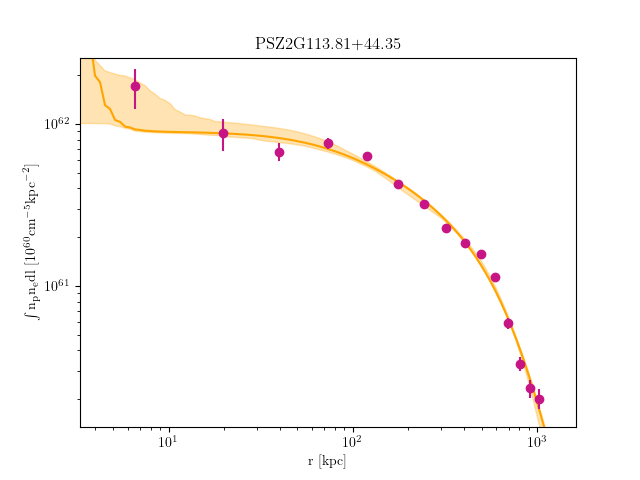

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G113.81+44.35_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.419545310246782 | 6.207509737 | 0.1283471187 | 1.0286265960000575e-05 | 7.713059920000431e-06 | 1.3310316010000748e-05 |
| 7.419545310246782 | 14.746318459580479 | 6.207509737 | 0.1283471187 | 1.5527318930000826e-05 | 1.2308314140000655e-05 | 1.9213161860001023e-05 |
| 14.746318459580479 | 29.860258419612087 | 6.207509737 | 0.1283471187 | 4.948344510000182e-05 | 4.365117155000161e-05 | 5.5775564300002044e-05 |
| 29.860258419612087 | 52.18577032664763 | 6.203489862 | 0.1301665374 | 0.00015264761720000823 | 0.0001422846762000077 | 0.00016346713900000884 |
| 52.18577032664763 | 81.14725931699317 | 5.959255254 | 0.1402931268 | 0.00026559231780001215 | 0.0002518321905000115 | 0.0002798073345000128 |
| 81.14725931699317 | 116.1691305269546 | 5.648295408 | 0.1444385041 | 0.0003214758721000137 | 0.00030548300810001307 | 0.0003379569873000144 |
| 116.1691305269546 | 156.6757890928381 | 5.208263449 | 0.1446108735 | 0.00038593510421700174 | 0.00036812169956214493 | 0.0004042415455882066 |
| 156.6757890928381 | 202.09164015094956 | 4.720117589 | 0.1400771848 | 0.00040601921733545755 | 0.0003872185991103571 | 0.0004253233625147093 |
| 202.09164015094956 | 251.84108883759498 | 4.338106639 | 0.1374287288 | 0.00045134655673537426 | 0.00043050269276623975 | 0.00047273171117790655 |
| 251.84108883759498 | 305.34854028908063 | 3.961951934 | 0.1378661642 | 0.000509149632016013 | 0.0004856806972616259 | 0.0005332123099748657 |
| 305.34854028908063 | 362.0383996417122 | 3.646711803 | 0.1372836507 | 0.00047028278104980007 | 0.00044683400580525006 | 0.000494345812225746 |
| 362.0383996417122 | 421.3350720317958 | 3.349774607 | 0.1339888651 | 0.00029877005366976125 | 0.00027827240886068753 | 0.0003199084511370104 |
| 421.3350720317958 | 482.66296259563757 | 3.089245715 | 0.1333035225 | 0.00020012893346426071 | 0.00018085419817510752 | 0.00022010201608785597 |
| 482.66296259563757 | 545.4464764695437 | 2.846503968 | 0.1328225206 | 0.00016431578073246604 | 0.00014408289621828046 | 0.0001853513682335541 |
| 545.4464764695437 | 609.1100187898197 | 2.638372984 | 0.131877061 | 0.00016129576294994567 | 0.00013945908179941187 | 0.00018402955940338743 |
Temperature Profiles

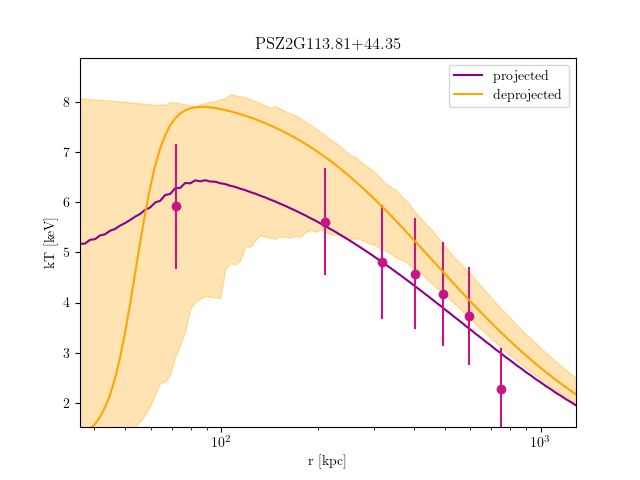

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G113.81+44.35_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 81.1472593169912 | 5.920210234 | 5.00894379 | 6.993693799 | 0.0438381825 | 0 | 0.2431816833 | 0.0005100477553 | 0.0004789696692 | 0.000537964663 |
| 81.1472593169912 | 156.67578909283426 | 5.614043052 | 4.939268788 | 6.451615808 | 0.1896610695 | 0.04492269629 | 0.3678657154 | 0.000695751971 | 0.0006568178975 | 0.0007346225879 |
| 156.67578909283426 | 202.0916401509446 | 4.808596863 | 4.083018081 | 5.794977177 | 8.588151234e-12 | 0 | 0.054864423 | 0.0004216401586 | 0.0003979560665 | 0.0004343805501 |
| 202.0916401509446 | 251.8410888375888 | 4.579237571 | 3.870213502 | 5.472614017 | 0.2189962053 | 0 | 0.5040258522 | 0.000435381548 | 0.0003954380539 | 0.0004762779448 |
| 251.8410888375888 | 305.3485402890732 | 4.169956298 | 3.510290211 | 4.915469333 | 6.513269502e-08 | 0 | 0.06311968676 | 0.0005282101935 | 0.0004956633396 | 0.000559735013 |
| 305.3485402890732 | 362.0383996417034 | 3.727643233 | 3.163498047 | 4.395284927 | 0.361514185 | 0.1203283163 | 0.6905484284 | 0.0004315210854 | 0.0003824158973 | 0.0004851299749 |
| 362.0383996417034 | 482.6629625956258 | 2.280195308 | 1.950816182 | 2.598950048 | 2.969625246e-10 | 0 | 0.01959187913 | 0.0006138378303 | 0.0005551447879 | 0.0006675186702 |
