Cluster
PSZ2G114.79-33.71
Emission Measure Profiles

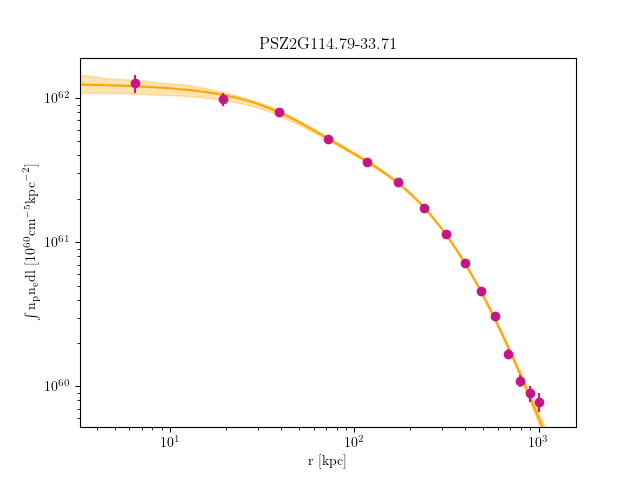

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G114.79-33.71_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 15.079657434011073 | 9.229333943 | 1.560640069 | 3.730782604000248e-05 | 3.2233851020002143e-05 | 4.287427093000285e-05 |
| 15.079657434011073 | 29.97076255821278 | 9.229333943 | 1.560640069 | 8.502038484000492e-05 | 7.684345298000444e-05 | 9.373847446000543e-05 |
| 29.97076255821278 | 60.688687652723324 | 9.229333943 | 1.560640069 | 0.0002883726548000037 | 0.0002716800089000035 | 0.000305706774600004 |
| 60.688687652723324 | 106.06358025322871 | 8.9349926 | 2.007685941 | 0.0005106803387000293 | 0.0004909983301000282 | 0.0005308496968000304 |
| 106.06358025322871 | 164.92558789541502 | 8.961631843 | 2.2359265 | 0.0007392258805719357 | 0.0007166678965677665 | 0.0007622145358747151 |
| 164.92558789541502 | 236.1048581149681 | 9.516757102 | 2.420171407 | 0.0009653250631358182 | 0.0009383088504629625 | 0.0009928016823850384 |
| 236.1048581149681 | 318.4315384475741 | 10.93568879 | 2.572518858 | 0.0010162262428307497 | 0.0009881440156045576 | 0.0010447599573047224 |
| 318.4315384475741 | 410.73577642891894 | 12.45561723 | 2.701199638 | 0.0009890423313023509 | 0.000959812742755461 | 0.0010187423380876362 |
| 410.73577642891894 | 511.84771959468856 | 12.97578581 | 2.811797329 | 0.0008592588798340753 | 0.0008304209687078605 | 0.0008885767230385623 |
| 511.84771959468856 | 620.5975154805694 | 13.00267887 | 2.908134544 | 0.0007319181305471953 | 0.0007035045054891945 | 0.0007608126829360797 |
| 620.5975154805694 | 735.8153116222469 | 12.72011016 | 2.992969294 | 0.0006260784821518441 | 0.0005966299009047042 | 0.0006560562547918683 |
| 735.8153116222469 | 856.3312555554072 | 12.35930133 | 3.068291585 | 0.00041729202831528424 | 0.00038828841338055123 | 0.00044687896550739566 |
| 856.3312555554072 | 980.9754948157365 | 12.1023963 | 3.135603108 | 0.0003238439553194321 | 0.00029244396890123174 | 0.0003559364851576256 |
| 980.9754948157365 | 1108.5781769389212 | 11.58674622 | 3.196075629 | 0.0003088239763512179 | 0.0002717265979822741 | 0.0003468254326348518 |
| 1108.5781769389212 | 1237.9694494606463 | 11.2067188 | 3.250603596 | 0.0003069259239725629 | 0.0002602822038005171 | 0.0003548912545601131 |
Temperature Profiles

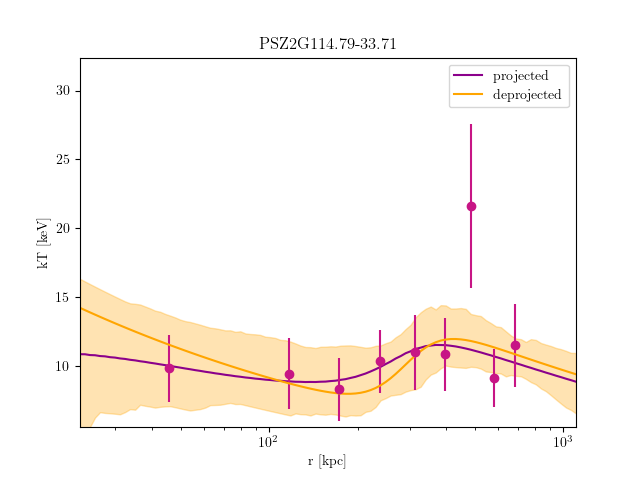

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G114.79-33.71_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 106.06358025322614 | 9.810263104 | 8.462749768 | 11.72088442 | 0.5483209253 | 0.259094648 | 0.9191246032 | 0.001113621986 | 0.001044173633 | 0.001179528317 |
| 106.06358025322614 | 164.925587895411 | 9.429193428 | 8.148427775 | 11.78819658 | 0.5080238491 | 0.2385058693 | 0.8495830717 | 0.0009611257727 | 0.0009033032045 | 0.00101623813 |
| 164.925587895411 | 236.10485811496235 | 8.307460643 | 7.204721484 | 9.985192312 | 0.6391343766 | 0.3781024343 | 0.9589951364 | 0.00123727989 | 0.001163924512 | 0.00130737761 |
| 236.10485811496235 | 318.43153844756637 | 10.31460518 | 9.14178177 | 11.91823295 | 1.637593136 | 1.169983953 | 2.256535705 | 0.001132386266 | 0.001044984929 | 0.001215230545 |
| 318.43153844756637 | 410.73577642890893 | 10.97071919 | 9.330041932 | 13.40999462 | 1.226306213 | 0.7600734482 | 1.839325695 | 0.001157468563 | 0.001064831309 | 0.001246782616 |
| 410.73577642890893 | 511.8477195946761 | 10.84026708 | 9.248586617 | 13.12463277 | 2.539816395 | 1.706724098 | 3.769602222 | 0.00084942751 | 0.0007489115374 | 0.0009434818711 |
| 511.8477195946761 | 620.5975154805543 | 21.59821561 | 15.72876761 | 27.03377087 | 4.994929154 | 3.40232416 | 0 | 0.000682187107 | 0.0006492768319 | 0.0008063857498 |
| 620.5975154805543 | 735.815311622229 | 9.124385835 | 8.067058712 | 10.25113141 | 5 | 4.727142369 | 0 | 0.0004717528874 | 0.0004485661948 | 0.0004991248631 |
| 735.815311622229 | 856.3312555553863 | 11.49115422 | 9.318552361 | 14.07757897 | 4.999806635 | 4.288296382 | 0 | 0.0003387178137 | 0.0003097367931 | 0.0003749981874 |
