PSZ2G114.90-34.35

Emission Measure Profiles

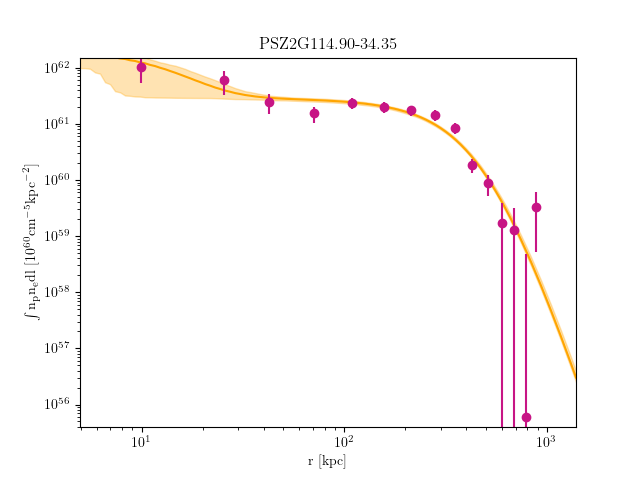

Here is the best-fit emission measure profile:

The EM data points are available in file format here: PSZ2G114.90-34.35_EM.txt

The columns in this file are: (1) \(r_{\rm inner}\) (pixels), (2) \(r_{\rm outer}\) (pixels), (3) kT (keV), (4) Z, (5) EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\), (6) EM\(_{\rm low}\), (7) EM\(_{\rm high}\).

The best-fit density model can be downloaded here and the best-fit EM model can be downloaded here. The first column in each file is the radius (in kpc) and the second column is the model evaluated at that radius (in \(\mathrm{cm}^{-3}\) or \(\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}\)). The models have been evaluated from the midpoint of the innermost density bin to the midpoint of the outermost density bin.

Temperature Profiles

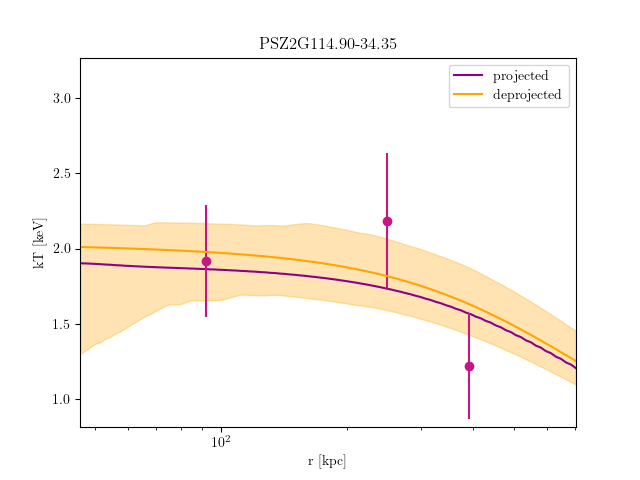

Here is the best-fit temperature profile:

The temperature data points are available in file format here: PSZ2G114.90-34.35_kT.txt

The columns in this file are: (1) \(r_{\rm inner}\) (pixels), (2) \(r_{\rm outer}\) (pixels), (3) kT (keV), (4) kT\(_{\rm low}\) (keV), (5) kT\(_{\rm high}\) (keV), (6) Z, (7) Z\(_{\rm low}\), (8) Z\(_{\rm high}\), (9) EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\), (10) EM\(_{\rm low}\), (11) EM\(_{\rm high}\).

The best-fit deprojected temperature model can be downloaded here and the best-fit projected temperature model can be downloaded here. The first column in each file is the radius (in kpc) and the second column is the model evaluated at that radius (in keV). The models have been evaluated from the midpoint of the innermost density bin to the midpoint of the outermost density bin.

All Models

All models can be found in a combined table here. The columns are: radius, density, EM, kT (deprojected), and kT (projected).
