Cluster
PSZ2G114.99+70.36
Emission Measure Profiles

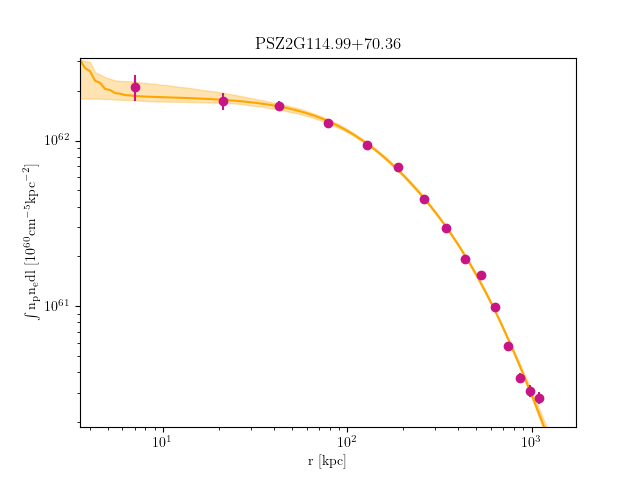

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G114.99+70.36_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.927682624401904 | 6.556025296 | 0.4674934902 | 1.3539231720000566e-05 | 1.1280756070000472e-05 | 1.6061579590000672e-05 |
| 7.927682624401904 | 15.756239464494199 | 6.556025296 | 0.4674934902 | 3.260484402107622e-05 | 2.90164119206381e-05 | 3.6458660381357456e-05 |
| 15.756239464494199 | 31.905277471165647 | 6.556025296 | 0.4674934902 | 0.0001277135003152086 | 0.00012069302927813484 | 0.00013498793580056612 |
| 31.905277471165647 | 55.75978140981692 | 6.192726955 | 0.434334098 | 0.0002739896148116025 | 0.00026343429064326645 | 0.0002848068553811496 |
| 55.75978140981692 | 86.70473604584873 | 7.264657395 | 0.3946037691 | 0.00042551463884123083 | 0.0004121516846778086 | 0.00043914318272606303 |
| 86.70473604584873 | 124.12512614466166 | 8.187177719 | 0.3650988034 | 0.0005561400154900962 | 0.0005407336906365135 | 0.0005718097613663783 |
| 124.12512614466166 | 167.40593647165647 | 7.321515594 | 0.3317764945 | 0.0005699864190563386 | 0.0005540578497393293 | 0.0005861814757263712 |
| 167.40593647165647 | 215.9321517922338 | 6.380059757 | 0.3054828741 | 0.0005645298308533364 | 0.0005480718622353714 | 0.0005812651812828788 |
| 215.9321517922338 | 269.08875687179426 | 5.6175789 | 0.2882507481 | 0.0005118814294093487 | 0.0004955328717376238 | 0.0005285167822361589 |
| 269.08875687179426 | 326.2607364757388 | 4.958283542 | 0.2722692168 | 0.0005405195990887985 | 0.0005227204215951377 | 0.0005586293876819985 |
| 326.2607364757388 | 386.8330753694677 | 4.359258872 | 0.253916398 | 0.0004390850229420427 | 0.00042114092605799013 | 0.0004573869477476976 |
| 386.8330753694677 | 450.19075831838177 | 3.870002432 | 0.2387579646 | 0.00031470189969084897 | 0.0002980170236474167 | 0.0003317617825918424 |
| 450.19075831838177 | 515.7187700878818 | 3.457332383 | 0.2244794612 | 0.0002388935721904985 | 0.0002227734995973133 | 0.0002554091472242516 |
| 515.7187700878818 | 582.8020954433686 | 3.112799086 | 0.2127861105 | 0.00023422834367578624 | 0.00021632116177992407 | 0.0002525967864654361 |
| 582.8020954433686 | 650.8257191502423 | 2.815203948 | 0.2003736524 | 0.00024038540905217776 | 0.00022073629762012881 | 0.000260553243986629 |
Temperature Profiles

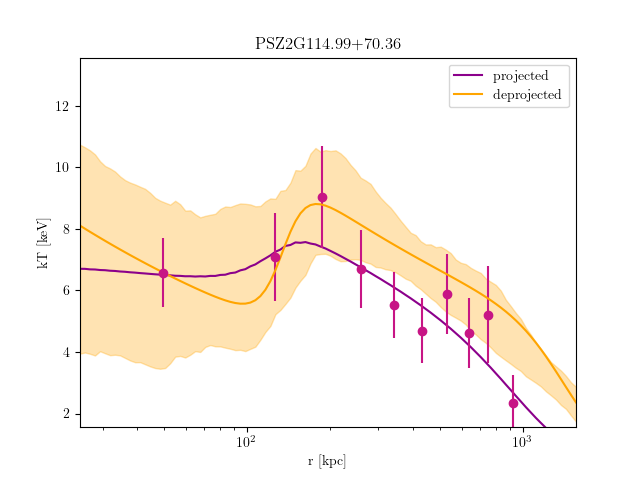

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G114.99+70.36_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 55.75978140981556 | 6.578082532 | 5.938779761 | 7.398807894 | 0.3928656924 | 0.216476917 | 0.6078252307 | 0.0004726650323 | 0.0004476003308 | 0.0004969388694 |
| 55.75978140981556 | 86.70473604584663 | 7.082592987 | 6.177491754 | 8.487974147 | 0.5060159782 | 0.2856539383 | 0.7591014389 | 0.000416476884 | 0.0003927278718 | 0.0004394081312 |
| 86.70473604584663 | 124.12512614465864 | 9.043800165 | 7.745645837 | 10.61191447 | 0.3634690121 | 0.150419776 | 0.6144724604 | 0.0005545322479 | 0.0005269711484 | 0.0005813998725 |
| 124.12512614465864 | 167.40593647165238 | 6.696149365 | 5.866568264 | 7.753270939 | 0.2624020748 | 0.09429674873 | 0.4619044391 | 0.000579987758 | 0.0005513788656 | 0.0006078911839 |
| 167.40593647165238 | 215.93215179222852 | 5.53372894 | 4.949582619 | 6.274532498 | 0.3203286582 | 0.1532442009 | 0.5235636617 | 0.0005670129908 | 0.0005354623543 | 0.000598174047 |
| 215.93215179222852 | 269.08875687178767 | 4.690863153 | 4.192391185 | 5.435537224 | 2.983758777e-06 | 0 | 0.1300580331 | 0.0005598099488 | 0.0005296733715 | 0.0005823860226 |
| 269.08875687178767 | 326.2607364757308 | 5.875141492 | 5.036461644 | 7.01010427 | 0.1452644408 | 0 | 0.3935175773 | 0.0005493586529 | 0.0005137625504 | 0.0005847989081 |
| 326.2607364757308 | 386.83307536945824 | 4.60825895 | 3.896585945 | 5.404560578 | 0.3384284484 | 0.0924400141 | 0.6455027915 | 0.0004250586289 | 0.0003872218221 | 0.0004632912475 |
| 386.83307536945824 | 450.1907583183708 | 5.21306869 | 4.139134375 | 6.777372275 | 0.5549529369 | 0.1380395921 | 1.096468911 | 0.0002823967428 | 0.0002472722624 | 0.0003173369588 |
| 450.1907583183708 | 582.8020954433543 | 2.335358256 | 2.0178368 | 2.765705994 | 5.718354045e-18 | 0 | 0.02223094332 | 0.0005924947432 | 0.0005457147442 | 0.0006425829531 |
