Cluster
PSZ2G125.30-27.99
Emission Measure Profiles

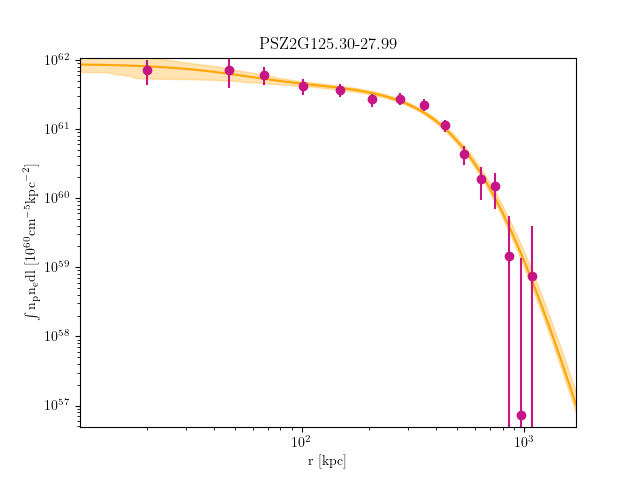

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G125.30-27.99_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 22.675450564436503 | 2.582820815 | 0.3302580523 | 3.547970466000174e-05 | 2.383291700000117e-05 | 4.965909918000244e-05 |
| 22.675450564436503 | 30.254929191905262 | 2.582820815 | 0.3302580523 | 2.7393927750001446e-05 | 1.718047731000091e-05 | 4.022480301000213e-05 |
| 30.254929191905262 | 45.89015940431103 | 2.582820815 | 0.3302580523 | 6.918861468000389e-05 | 5.229828376000294e-05 | 8.863180019000497e-05 |
| 45.89015940431103 | 68.98569367263539 | 2.654345304 | 0.269802792 | 0.00010616118600000144 | 8.405212826000115e-05 | 0.00013094672680000175 |
| 68.98569367263539 | 98.94608446785996 | 2.765580453 | 0.2032989015 | 0.00017927063230000696 | 0.00015027985330000584 | 0.0002108860251000082 |
| 98.94608446785996 | 135.17588426096614 | 2.7845326 | 0.145323288 | 0.00021834545777675603 | 0.00018320625268760412 | 0.0002563432384789551 |
| 135.17588426096614 | 177.07964552293575 | 2.733678679 | 0.08644523814 | 0.00034627173684890887 | 0.000298905409795867 | 0.00039692135009022255 |
| 177.07964552293575 | 224.06192072475014 | 2.637555467 | 0.001868540931 | 0.0004050773689319387 | 0.0003496908471483127 | 0.0004640103174031661 |
| 224.06192072475014 | 275.52726233739094 | 2.510213932 | 1 | 0.00028125871408802666 | 0.0002418639709570794 | 0.00032304605259385235 |
| 275.52726233739094 | 330.88022283183994 | 2.363970569 | 1 | 0.0001394856870023356 | 0.00010304567546735364 | 0.0001786892381261597 |
| 330.88022283183994 | 389.52535467907836 | 2.209687707 | 1 | 7.571931062554682e-05 | 4.080168615626259e-05 | 0.00011344284148628491 |
| 389.52535467907836 | 450.8672103500879 | 2.09496813 | 1 | 7.530392493501922e-05 | 3.7665293507671305e-05 | 0.00011572738658012318 |
| 450.8672103500879 | 514.3103423158502 | 2.09496813 | 1 | 8.501034082624149e-06 | 0.0 | 4.7064759447182735e-05 |
| 514.3103423158502 | 579.2593030473472 | 2.09496813 | 1 | 4.9764757726959735e-08 | 0.0 | 1.87803270870607e-05 |
| 579.2593030473472 | 645.1186450155593 | 2.09496813 | 1 | 5.732900889906195e-06 | 0.0 | 4.939447244393958e-05 |
Temperature Profiles

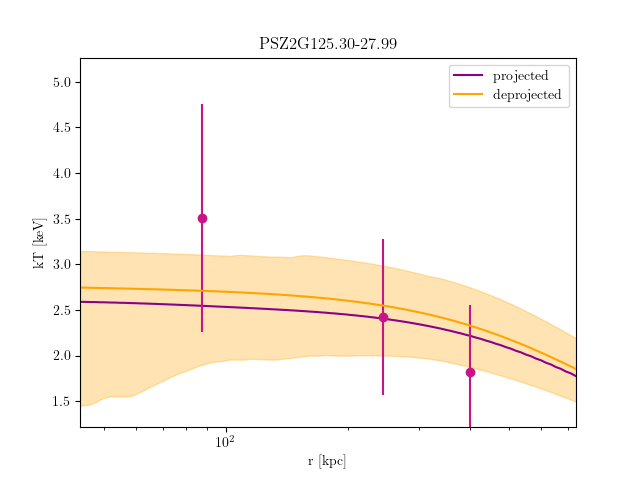

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G125.30-27.99_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 98.94608446785755 | 3.510192662 | 2.654439599 | 4.84304309 | 0.3423782481 | 0 | 1.060543052 | 0.0003663232002 | 0.0002850666241 | 0.0004760998964 |
| 98.94608446785755 | 177.07964552293146 | 2.422196921 | 1.856914477 | 3.065639518 | 9.286612494e-13 | 0 | 0.1576359261 | 0.0006428487802 | 0.0005181807637 | 0.0007972065411 |
| 177.07964552293146 | 275.52726233738423 | 1.822897126 | 1.47031811 | 2.308341427 | 1.551671698e-10 | 0 | 0.08501762592 | 0.001097928252 | 0.0008936988957 | 0.001420145341 |
