Cluster
PSZ2G135.19+57.88
Emission Measure Profiles

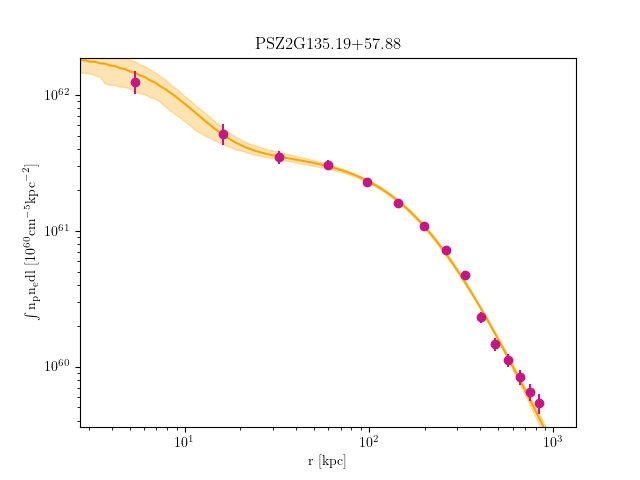

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G135.19+57.88_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.545119656808836 | 2.653004821 | 1.644029212 | 2.3113265930001073e-05 | 1.911193578000089e-05 | 2.7633523780001282e-05 |
| 11.545119656808836 | 22.945881990658393 | 2.653004821 | 1.644029212 | 2.8216935270001245e-05 | 2.3583946210001042e-05 | 3.339915186000148e-05 |
| 22.945881990658393 | 46.463798254800146 | 2.653004821 | 1.644029212 | 7.822527521000361e-05 | 7.061506082000325e-05 | 8.633319715000398e-05 |
| 46.463798254800146 | 81.20321901287119 | 2.657629093 | 1.656624177 | 0.000188008837900006 | 0.00017615638200000564 | 0.0002003450686000064 |
| 81.20321901287119 | 126.26849482850866 | 3.270405965 | 1.869369606 | 0.0002943786654000168 | 0.00027906577760001595 | 0.0003101911494000177 |
| 126.26849482850866 | 180.76397626534956 | 4.309979419 | 2.029645712 | 0.00037142855987798396 | 0.0003538102409526594 | 0.0003895562793854314 |
| 180.76397626534956 | 243.79401388703107 | 5.542085343 | 2.162171872 | 0.00040182841738331515 | 0.00038306662930405683 | 0.0004210970852501318 |
| 243.79401388703107 | 314.4629582571902 | 6.597002485 | 2.274118864 | 0.0003908519665585523 | 0.000371726875084604 | 0.00041048605079688455 |
| 314.4629582571902 | 391.87515993946397 | 7.188250569 | 2.370326083 | 0.00035871172921266204 | 0.00033964768995887063 | 0.0003782759931736569 |
| 391.87515993946397 | 475.1349694974899 | 7.387090989 | 2.454137786 | 0.00023033011442081437 | 0.00021315684021500414 | 0.0002480113600131197 |
| 475.1349694974899 | 563.3467374949045 | 7.269072924 | 2.527931123 | 0.0001857203755046093 | 0.0001683158965556527 | 0.00020365964765770692 |
| 563.3467374949045 | 655.6148144953452 | 7.017030285 | 2.593450845 | 0.0001733700088633107 | 0.000155496782667172 | 0.00019178066680513594 |
| 655.6148144953452 | 751.0435510624491 | 6.668887626 | 2.652015719 | 0.00015613291950742668 | 0.0001379961995447965 | 0.00017480462598500632 |
| 751.0435510624491 | 848.7372977598533 | 6.280105989 | 2.704619988 | 0.00014117689887717207 | 0.00012214503047486478 | 0.00016078968928069347 |
| 848.7372977598533 | 947.8004051511946 | 5.914442906 | 2.75205161 | 0.00013182814472328076 | 0.0001107785123797581 | 0.00015356905457536888 |
Temperature Profiles

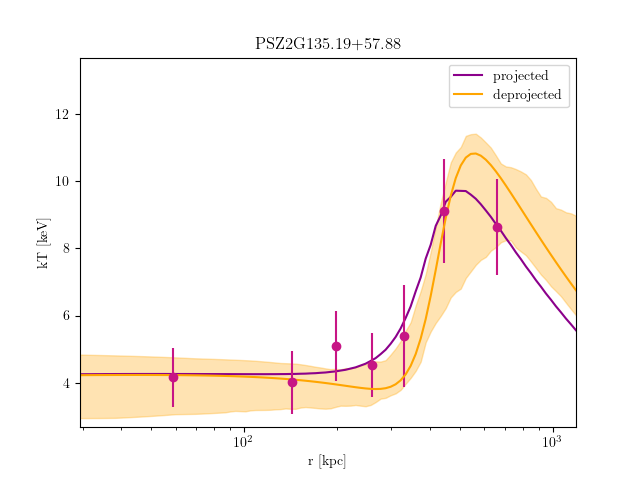

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G135.19+57.88_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 126.26849482850558 | 4.163706066 | 3.730581134 | 4.677507507 | 0.2077552504 | 0.05830868315 | 0.3948217387 | 0.0009818805112 | 0.0009133629037 | 0.001051996206 |
| 126.26849482850558 | 180.76397626534512 | 4.016864576 | 3.526553822 | 4.665364305 | 0.4139608755 | 0.1662360413 | 0.7528852495 | 0.000558928316 | 0.0004981082578 | 0.000619155593 |
| 180.76397626534512 | 243.79401388702513 | 5.090855412 | 4.422197598 | 5.911102526 | 0.7688364716 | 0.4300046188 | 1.234541736 | 0.0005290575285 | 0.0004720361293 | 0.0005844981293 |
| 243.79401388702513 | 314.46295825718255 | 4.523887401 | 3.928141042 | 5.144225193 | 1.432255844 | 0.9182906867 | 2.171866706 | 0.0004374218207 | 0.0003742601965 | 0.0004995923561 |
| 314.46295825718255 | 391.8751599394544 | 5.399867952 | 4.425472644 | 7.074454927 | 1.197119773 | 0.6156175924 | 2.26037014 | 0.0004241431702 | 0.0003527531447 | 0.0004890151594 |
| 391.8751599394544 | 563.3467374948907 | 9.115836209 | 7.709641353 | 10.43658868 | 4.999953339 | 4.395332181 | 0 | 0.0003303454339 | 0.0003069947189 | 0.0003577781647 |
| 563.3467374948907 | 848.7372977598326 | 8.632166601 | 7.512397191 | 9.947888517 | 5 | 4.74315672 | 0 | 0.0003918382346 | 0.0003603418319 | 0.0004257081051 |
