Cluster
PSZ2G137.74-27.08
Emission Measure Profiles

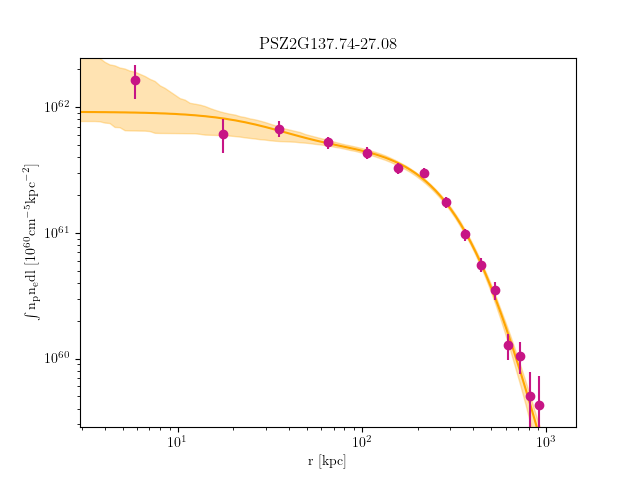

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G137.74-27.08_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 14.627122694269927 | 3.641573612 | 0.8152090814 | 4.4515391940003236e-05 | 3.271675262000238e-05 | 5.872397809000426e-05 |
| 14.627122694269927 | 29.071351461278006 | 3.641573612 | 0.8152090814 | 4.8945284290002265e-05 | 3.592954637000166e-05 | 6.436642110000297e-05 |
| 29.071351461278006 | 58.867443397518 | 3.641573612 | 0.8152090814 | 0.00022233952100000347 | 0.00019424889930000304 | 0.00025285843500000396 |
| 58.867443397518 | 102.88065286273947 | 3.651595661 | 0.7899963639 | 0.000469812127900024 | 0.0004269037543000218 | 0.0005152331381000263 |
| 102.88065286273947 | 159.97623421669195 | 3.983118736 | 0.6245852427 | 0.0008202451630059603 | 0.0007589871769514726 | 0.000884344188629243 |
| 159.97623421669195 | 229.01944181912475 | 4.074760599 | 0.4864399789 | 0.001107684733899137 | 0.001029879050636934 | 0.0011888162214347977 |
| 229.01944181912475 | 308.8755300297877 | 4.033274802 | 0.3195101901 | 0.0016270804570281243 | 0.0015282033315513885 | 0.0017295474529132214 |
| 308.8755300297877 | 398.40975320843006 | 3.90804253 | 0.215431988 | 0.0013934276804176875 | 0.0012966811352201615 | 0.0014938959598366412 |
| 398.40975320843006 | 496.48736571480146 | 3.728941624 | 0.142706547 | 0.001076465894403113 | 0.0009856012865838335 | 0.0011711841591399783 |
| 496.48736571480146 | 601.9736219086518 | 3.516773799 | 0.08292721328 | 0.0008100761033646675 | 0.0007234057662307389 | 0.0009008528218800651 |
| 601.9736219086518 | 713.7337761497298 | 3.289353244 | 0.0182394496 | 0.0006481074584169681 | 0.000556690122405516 | 0.000744163214228327 |
| 713.7337761497298 | 830.6330827977854 | 3.146866804 | 1 | 0.0002908838309549818 | 0.00022651109250889948 | 0.000359036342505092 |
| 830.6330827977854 | 951.5367962125681 | 3.146866804 | 1 | 0.00028707981319492663 | 0.00020824667719638142 | 0.00037092083208337026 |
| 951.5367962125681 | 1075.3101707538278 | 3.146866804 | 1 | 0.0001582810569348334 | 7.296611704170077e-05 | 0.00025018012188240344 |
| 1075.3101707538278 | 1200.8184607813134 | 3.146866804 | 1 | 0.00015370670042546801 | 5.114554525771803e-05 | 0.0002646648941261405 |
Temperature Profiles

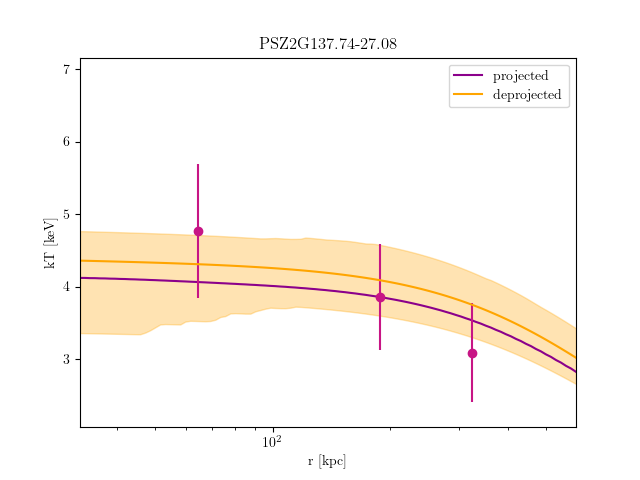

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G137.74-27.08_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 159.976234216688 | 4.773189335 | 4.106034067 | 5.638410557 | 0.8235642338 | 0.4635280613 | 1.324788801 | 0.001481580652 | 0.001307664097 | 0.001650057799 |
| 159.976234216688 | 308.8755300297801 | 3.85689343 | 3.382810573 | 4.418539432 | 0.003947228384 | 0 | 0.1705700792 | 0.003156395098 | 0.002893468202 | 0.003404844793 |
| 308.8755300297801 | 496.48736571478935 | 3.089575215 | 2.715634226 | 3.603919592 | 0.2605474128 | 0.0310953917 | 0.5807778529 | 0.002578679727 | 0.002227217117 | 0.002966098175 |
