Cluster

PSZ2G140.63+29.45

Emission Measure Profiles

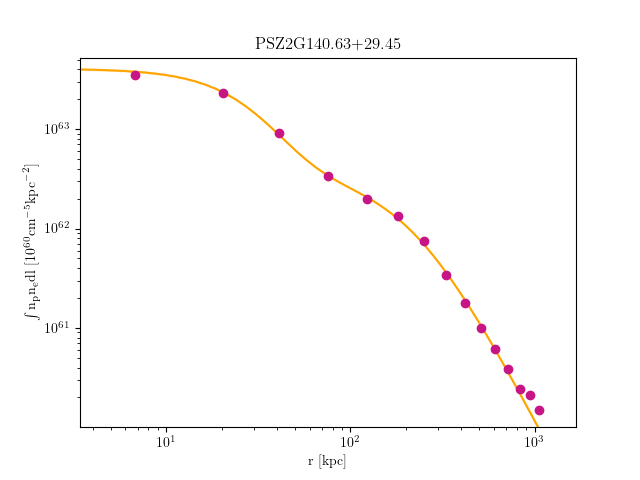

Here is the best-fit emission measure profile:

The annular profile information is given in the table below, or it is available in file format here: PSZ2G140.63+29.45_SB.data

\(r_{\rm inner}\) (pixels)	\(r_{\rm outer}\) (pixels)	kT (keV)	Z	EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)	EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)	EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)
0.0	7.926866893475035	3.357337241	0.6151846236	0.00022255828700000894	0.00022019786520000882	0.00022494341060000906
7.926866893475035	15.754618202338373	3.749830687	0.4969173736	0.0004376199183000206	0.00043426131370002046	0.0004410040689000208
15.754618202338373	31.901994529252267	4.204482298	0.4223499267	0.0007101318664000334	0.0007058255003000332	0.0007144640566000336
31.901994529252267	55.754043922542714	5.068955694	0.3570603293	0.0007130345478000332	0.000708666356500033	0.0007174288435000334
55.754043922542714	86.69581443053573	6.024157437	0.3057717887	0.0008813496465000547	0.0008764423174000543	0.0008862833013000549
86.69581443053573	124.11235410155714	6.621026567	0.2629112337	0.001076388013253613	0.0010708543141151185	0.0010819487558834447
124.11235410155714	167.38871098393312	6.871402127	0.2275816009	0.0009590661583674041	0.0009537875702743743	0.0009643714623236554
167.38871098393312	215.9099331259895	6.820990606	0.1978924673	0.0006361768240942587	0.0006316293194359087	0.0006407522973399035
215.9099331259895	269.0610685760523	6.46120685	0.1727912026	0.0004711158225971812	0.00046676977264545805	0.0004754935343024315
269.0610685760523	326.22716538244765	5.757328359	0.1507217274	0.0003409166361676273	0.0003368838611765941	0.00034498298558589114
326.22716538244765	386.79327159350123	4.829102846	0.1316888872	0.00027086951136433236	0.00026682856356767857	0.0002749479676311929
386.79327159350123	450.1444352575391	3.793568942	0.1148550401	0.00020674468874523963	0.00020274597767161	0.00021078420807286573
450.1444352575391	515.6657044228875	2.816610968	0.09953166105	0.0001546818534205432	0.00015059807722800532	0.00015881134688068332
515.6657044228875	582.7421271378723	2.026500967	0.08565593563	0.00015733615534363121	0.0001526309149417679	0.0001620951870744401
582.7421271378723	650.7587514508193	1.425698484	0.07386417671	0.00012817934624030064	0.00012283108370731552	0.00013359527739351994

Temperature Profiles

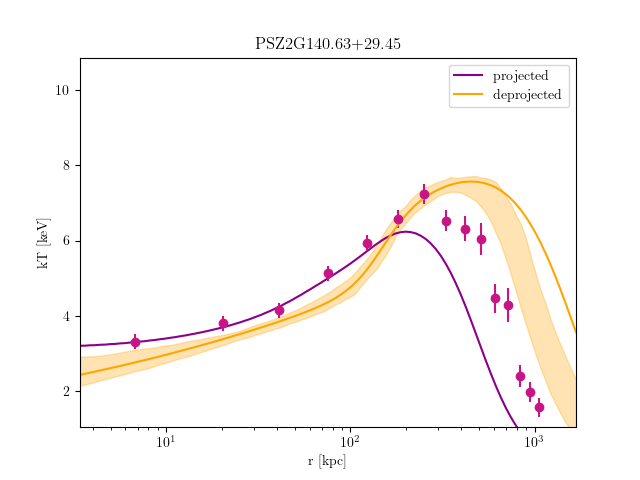

Here is the best-fit temperature profile:

The annular profile information is given in the table below, or it is available in file format here: PSZ2G140.63+29.45_kT.data

\(r_{\rm inner}\) (pixels)	\(r_{\rm outer}\) (pixels)	kT (keV)	kT\(_{\rm low}\) (keV)	kT\(_{\rm high}\) (keV)	Z	Z\(_{\rm low}\)	Z\(_{\rm high}\)	EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)	EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)	EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\)
0.0	7.926866893474842	3.312955997	3.235814883	3.391121526	0.5537522555	0.4981898786	0.6130830192	0.0002279577075	0.0002223918089	0.0002335497892
7.926866893474842	15.754618202337987	3.810303249	3.741443046	3.883315594	0.4605368698	0.4211692117	0.5017761785	0.0004417522615	0.0004346862949	0.0004488127937
15.754618202337987	31.90199452925149	4.151639334	4.085362277	4.218847708	0.4442539723	0.4127684507	0.4769143261	0.0007068309312	0.0006983438769	0.0007152930405
31.90199452925149	55.75404392254135	5.130085501	5.036906837	5.231969473	0.4357664746	0.4012796128	0.4715546515	0.000697178272	0.0006893590349	0.0007049525309
55.75404392254135	86.69581443053362	5.938715909	5.817226925	6.061288884	0.2976684706	0.2682117905	0.3281330459	0.000884391691	0.0008761873004	0.0008925400333
86.69581443053362	124.1123541015541	6.567762931	6.427889154	6.710016627	0.2746586099	0.2460137317	0.3041725179	0.001073869462	0.001064871471	0.001082808867
124.1123541015541	167.38871098392903	7.234965939	7.0609792	7.42756268	0.3270709095	0.2917259691	0.3635244685	0.0009348762367	0.0009262344512	0.0009434452591
167.38871098392903	215.90993312598425	6.524999308	6.331879199	6.741850048	0.2674860692	0.2237234742	0.3130240371	0.0006277919627	0.0006200551233	0.0006354510765
215.90993312598425	269.0610685760457	6.313787046	6.052478624	6.589202631	0.2360147163	0.1756164254	0.2993691041	0.0004630042647	0.0004552034589	0.0004707197972
269.0610685760457	326.2271653824397	6.041513948	5.681451449	6.438189729	0.04705963057	0	0.1256815613	0.0003455194821	0.0003377557709	0.000353053157
326.2271653824397	386.7932715934918	4.464667781	4.162693096	4.833096155	0.06783535692	0	0.1529778309	0.0002770965784	0.0002679872539	0.0002862268044
386.7932715934918	450.14443525752813	4.284659189	3.881914533	4.693877132	0.1802284746	0.06262136023	0.3159069835	0.0001966808945	0.0001871632651	0.0002070916976
450.14443525752813	515.665704422875	2.415523219	2.203045786	2.660864542	0.001578304853	0	0.06559588604	0.0001725425795	0.0001607569851	0.0001812774454
515.665704422875	582.7421271378581	1.970779353	1.799108153	2.183490325	0.05102385923	0.006184283817	0.1124802944	0.0001636110582	0.0001498310426	0.0001776631149
582.7421271378581	650.7587514508034	1.575045928	1.410591957	1.756647538	0.0375418618	0.004289725004	0.08382033576	0.0001328053133	0.0001188290964	0.0001491951199
