Cluster
PSZ2G143.62+42.61
Emission Measure Profiles

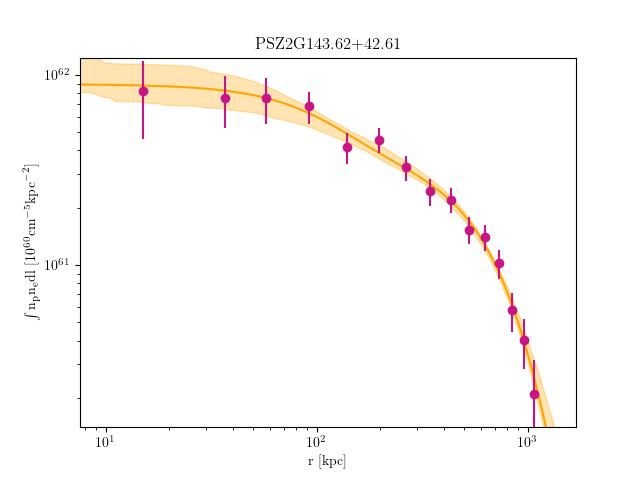

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G143.62+42.61_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 18.173950321915175 | 4.128174533 | 0.04115644366 | 2.4354496880001375e-05 | 1.5113909810000854e-05 | 3.629580949000205e-05 |
| 18.173950321915175 | 26.245695589092968 | 4.128174533 | 0.04115644366 | 1.056688013000049e-05 | 4.5609206230002115e-06 | 1.93920774300009e-05 |
| 26.245695589092968 | 42.89639172152185 | 4.128174533 | 0.04115644366 | 7.805872970000325e-05 | 5.9558904770002484e-05 | 9.937641021000415e-05 |
| 42.89639172152185 | 67.49191848343935 | 4.128174533 | 0.04115644366 | 0.0001664272098000018 | 0.00013868398930000153 | 0.00019699831070000214 |
| 67.49191848343935 | 99.39815563908303 | 4.207947867 | 0.04138732243 | 0.0001998326710125696 | 0.00016750072510196646 | 0.00023511014886132948 |
| 99.39815563908303 | 137.98098295269028 | 4.253457461 | 0.04274132789 | 0.00037495971390986846 | 0.0003291388290045237 | 0.0004239130235833428 |
| 137.98098295269028 | 182.60628018849872 | 4.186664588 | 0.04451673039 | 0.0004200746272430197 | 0.0003695096406591549 | 0.00047396752469475737 |
| 182.60628018849872 | 232.63992711074584 | 4.045418778 | 0.04314749798 | 0.00045441424590397745 | 0.00039340109648536585 | 0.0005194931966674283 |
| 232.63992711074584 | 287.447803483669 | 3.853620992 | 0.04128009422 | 0.0005646112271865331 | 0.0004962476797446858 | 0.0006370565552758345 |
| 287.447803483669 | 346.39578907150616 | 3.631054446 | 0.03426508853 | 0.0005153774068633193 | 0.00044926508290274057 | 0.0005852402443042057 |
| 346.39578907150616 | 408.84976363849427 | 3.394735431 | 0.02787815801 | 0.0005934263983538023 | 0.000519324838669899 | 0.0006714829943858155 |
| 408.84976363849427 | 474.1756069488711 | 3.158823653 | 0.02127218532 | 0.0005283472054235585 | 0.0004515532930019917 | 0.0006093337749021999 |
| 474.1756069488711 | 541.7391987668742 | 2.933038593 | 0.01748993853 | 0.0003566924222160401 | 0.0002807156953048545 | 0.0004373547489461749 |
| 541.7391987668742 | 610.9064188567415 | 2.723327847 | 0.01605801504 | 0.0002890723452820563 | 0.00021044089004720683 | 0.00037271139960624736 |
| 610.9064188567415 | 681.0431469827095 | 2.532428735 | 0.01416430912 | 0.00017113596557963537 | 8.948340134514327e-05 | 0.0002583821213348256 |
Temperature Profiles

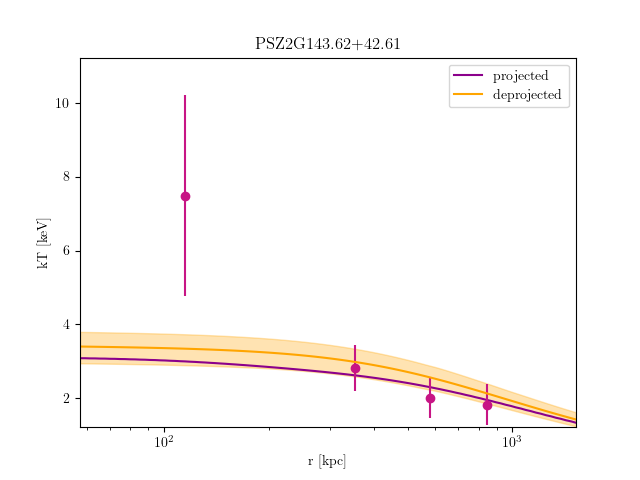

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G143.62+42.61_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 137.98098295268693 | 7.483685238 | 5.343112406 | 10.71602653 | 2.013399543e-06 | 0 | 0.2115617902 | 0.0007180064047 | 0.0006481501184 | 0.0007796274812 |
| 137.98098295268693 | 287.447803483662 | 2.805442325 | 2.402066638 | 3.325411928 | 5.050099618e-12 | 0 | 0.07162912178 | 0.00178750177 | 0.001525323463 | 0.001958368952 |
| 287.447803483662 | 408.8497636384843 | 2.015617228 | 1.716917814 | 2.44458515 | 2.47543828e-09 | 0 | 0.0769132559 | 0.001639685893 | 0.001359745044 | 0.002045290538 |
| 408.8497636384843 | 610.9064188567266 | 1.821102297 | 1.48785302 | 2.233697492 | 8.821554403e-14 | 0 | 0.1217504183 | 0.001705969948 | 0.001364651057 | 0.002137874374 |
