Cluster
PSZ2G145.19+32.14
Emission Measure Profiles

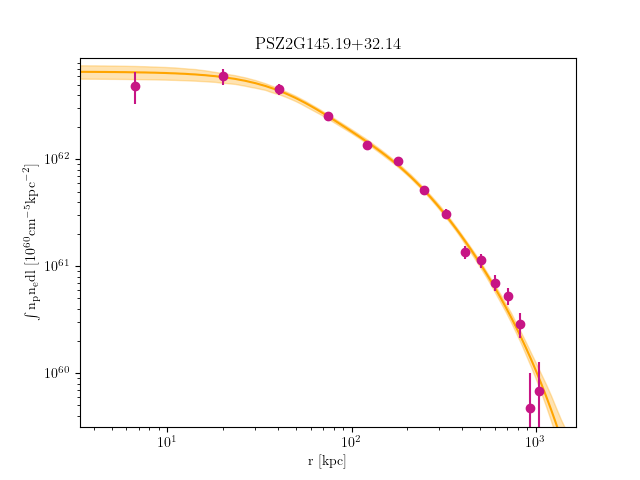

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G145.19+32.14_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.603765173678185 | 3.784172378 | 0.678604191 | 2.8214184430001e-05 | 1.9930595640000705e-05 | 3.8246304620001356e-05 |
| 7.603765173678185 | 15.112454746798534 | 3.784172378 | 0.678604191 | 0.00010113548440000553 | 8.534995975000467e-05 | 0.0001186894019000065 |
| 15.112454746798534 | 30.601658666941308 | 3.784172378 | 0.678604191 | 0.000318980414600019 | 0.00029117544910001734 | 0.0003484376618000207 |
| 30.601658666941308 | 53.48149062764244 | 4.336319852 | 0.6178489504 | 0.00048734559977024066 | 0.00045282437207700473 | 0.0005234674494856412 |
| 53.48149062764244 | 83.16206432243789 | 4.728732684 | 0.5412598871 | 0.0005484893816995272 | 0.0005114193296115395 | 0.0005871482603336233 |
| 83.16206432243789 | 119.05349344486345 | 4.839030769 | 0.5127180106 | 0.0006967873837513929 | 0.0006542443160136565 | 0.0007409201068700624 |
| 119.05349344486345 | 160.5658916884552 | 4.789447201 | 0.4829925379 | 0.0005963819624314674 | 0.0005531713815245067 | 0.0006413876640837529 |
| 160.5658916884552 | 207.109372746749 | 4.641640584 | 0.4925920946 | 0.0005282719649419241 | 0.0004838619938481717 | 0.0005746944167989574 |
| 207.109372746749 | 258.09405031328066 | 4.429643112 | 0.5121253331 | 0.0003236186401365627 | 0.00028490055556000093 | 0.000364414125645282 |
| 258.09405031328066 | 312.9300380815864 | 4.177976945 | 0.5254922455 | 0.00035379491379191106 | 0.0003096619973291032 | 0.0004003119420862843 |
| 312.9300380815864 | 371.0274497452018 | 3.908236545 | 0.5353707937 | 0.00027772509783333273 | 0.00023464868943854234 | 0.0003231864946953605 |
| 371.0274497452018 | 431.7963989976629 | 3.636995695 | 0.5417053432 | 0.0002580127130846366 | 0.00021367982867200576 | 0.0003048180273922183 |
| 431.7963989976629 | 494.6469995325058 | 3.376240114 | 0.5532615973 | 0.0001670047394556638 | 0.00012500079896236938 | 0.00021151825630725274 |
| 494.6469995325058 | 558.9893650432664 | 3.133734035 | 0.5615866805 | 3.1584993808979285e-05 | 0.0 | 7.245687818832646e-05 |
| 558.9893650432664 | 624.2336092234802 | 2.912945775 | 0.5690791135 | 5.2622003463119465e-05 | 9.186777756293215e-06 | 9.888403194579994e-05 |
Temperature Profiles

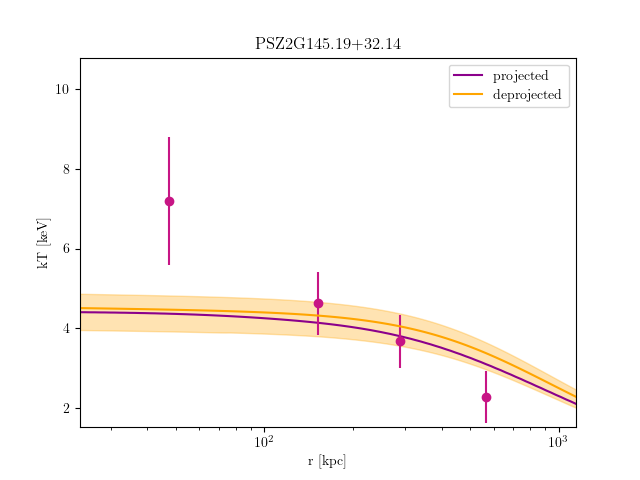

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G145.19+32.14_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 53.48149062764113 | 7.19367257 | 5.901300347 | 8.935939382 | 0.5022286149 | 0.2455612992 | 0.8452460048 | 0.0008350108892 | 0.0007606506555 | 0.0009119581484 |
| 53.48149062764113 | 119.05349344486054 | 4.625742647 | 4.133974402 | 5.343107569 | 0.3935585176 | 0.2137367434 | 0.6191289106 | 0.001287321786 | 0.001186677356 | 0.001388017981 |
| 119.05349344486054 | 207.10937274674393 | 3.672602187 | 3.281741563 | 4.147203975 | 6.353484286e-08 | 0 | 0.09410245538 | 0.001447484084 | 0.001310665963 | 0.001552459491 |
| 207.10937274674393 | 431.7963989976524 | 2.284037642 | 1.910172979 | 2.72745673 | 1.324287317e-17 | 0.5 | 0 | 0.001929583245 | 0.001690852822 | 0.002242311792 |
