Cluster
PSZ2G147.11+21.84
Emission Measure Profiles

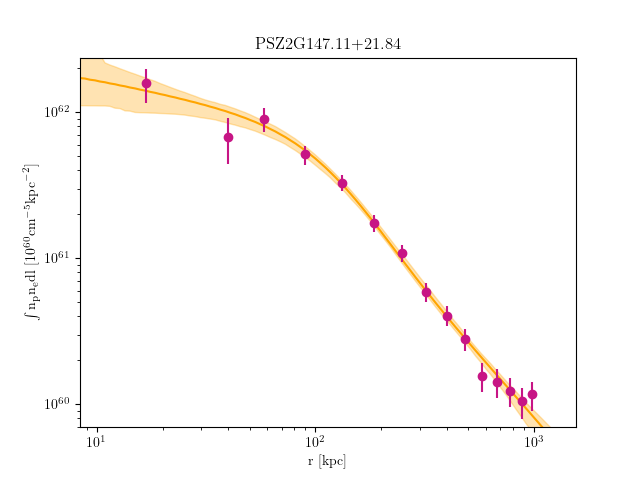

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G147.11+21.84_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 33.25545399994611 | 9.249551658 | 1.595204455 | 0.00019560810070001048 | 0.00015075917280000806 | 0.0002483369824000133 |
| 33.25545399994611 | 45.35766883185646 | 9.249551658 | 1.595204455 | 7.240206075000429e-05 | 5.0544086000002986e-05 | 9.941463350000588e-05 |
| 45.35766883185646 | 70.32256737925192 | 9.249551658 | 1.595204455 | 0.00029146705330002044 | 0.00024624217160001727 | 0.00034174609440002396 |
| 70.32256737925192 | 107.19939375620719 | 9.249551658 | 1.595204455 | 0.0003772890120000234 | 0.00033279035780002064 | 0.0004253607654000264 |
| 107.19939375620719 | 155.037392076797 | 9.480747844 | 1.958568113 | 0.0004626203429000204 | 0.00041832401040001844 | 0.0005096714867000225 |
| 155.037392076797 | 212.8858064550958 | 9.634347389 | 2.094362596 | 0.0004172442177155153 | 0.0003761871359367008 | 0.0004607436676737621 |
| 212.8858064550958 | 279.79388100517855 | 9.541014772 | 2.211455647 | 0.00040242387455055183 | 0.0003615978182401445 | 0.0004455536085314746 |
| 279.79388100517855 | 354.8108598411196 | 9.274289789 | 2.312975067 | 0.00031280039391369475 | 0.00027555669686733596 | 0.0003522503880052459 |
| 354.8108598411196 | 436.98598707699375 | 8.884618078 | 2.401721944 | 0.00029523776050682874 | 0.0002572209148110628 | 0.000335426422177209 |
| 436.98598707699375 | 525.368506826876 | 8.415947991 | 2.479949896 | 0.0002675978205466896 | 0.00022777089615436935 | 0.0003097015156076031 |
| 525.368506826876 | 619.0076632048405 | 7.908367966 | 2.549424144 | 0.0001876317488099747 | 0.0001487883243407364 | 0.00022886100376688702 |
| 619.0076632048405 | 716.952700324962 | 7.393576757 | 2.611495655 | 0.00020826369893081278 | 0.00016604663071007148 | 0.00025290818843669467 |
| 716.952700324962 | 818.2528623013153 | 6.895850922 | 2.667246239 | 0.0002154626431941111 | 0.00017180847622192308 | 0.0002615375372049587 |
| 818.2528623013153 | 921.9573932479756 | 6.429289948 | 2.717507443 | 0.0002113886563924748 | 0.00016415633721598776 | 0.00026121082573158375 |
| 921.9573932479756 | 1027.1155372790163 | 6.002121339 | 2.762964945 | 0.00026820420604573215 | 0.00021329155227224283 | 0.00032602856052788687 |
Temperature Profiles

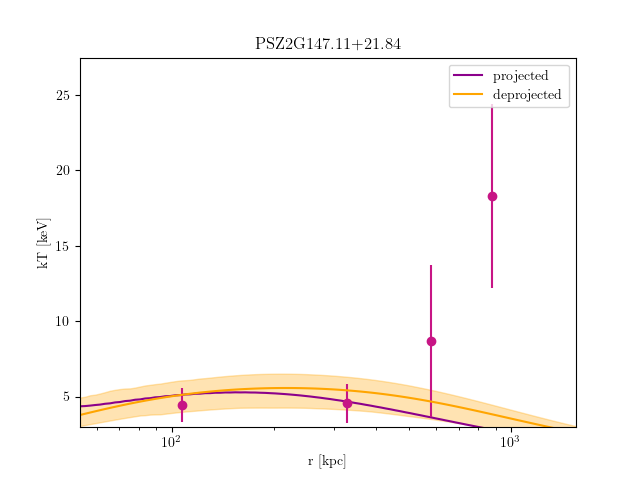

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G147.11+21.84_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 212.8858064550906 | 4.45200855 | 3.787220341 | 5.231320212 | 0.3725745234 | 0.1673955838 | 0.6543775268 | 0.002413251557 | 0.00218325818 | 0.002665790767 |
| 212.8858064550906 | 436.98598707698306 | 4.567616456 | 3.781624303 | 5.737093328 | 0.3261799849 | 0.08098374986 | 0.6750286612 | 0.001581979358 | 0.001398530999 | 0.001787097556 |
| 436.98598707698306 | 716.9527003249447 | 8.687986735 | 6.006070412 | 15.95168044 | 2.437479681 | 0.9540772881 | 0 | 0.0006783697969 | 0.000484586959 | 0.0008702256265 |
| 716.9527003249447 | 1027.1155372789913 | 18.31446821 | 12.09189937 | 0 | 4.994888455 | 2.205395741 | 0 | 0.0006708298298 | 0.0005775557599 | 0.000878645102 |
