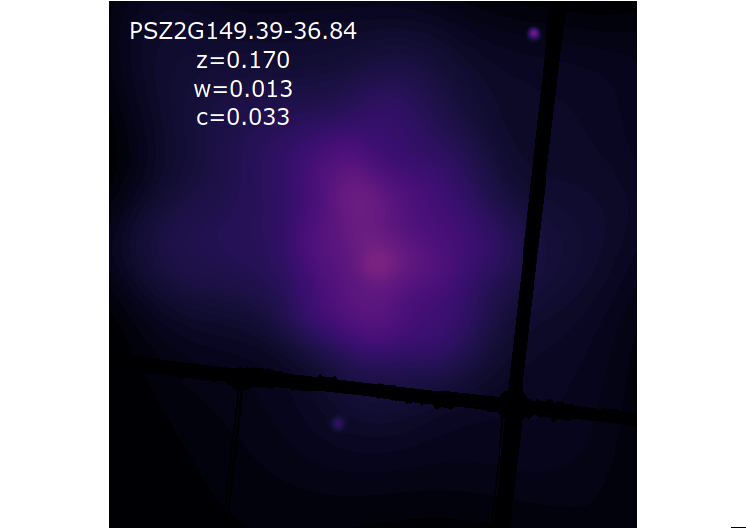

Cluster
PSZ2G149.39-36.84
Emission Measure Profiles

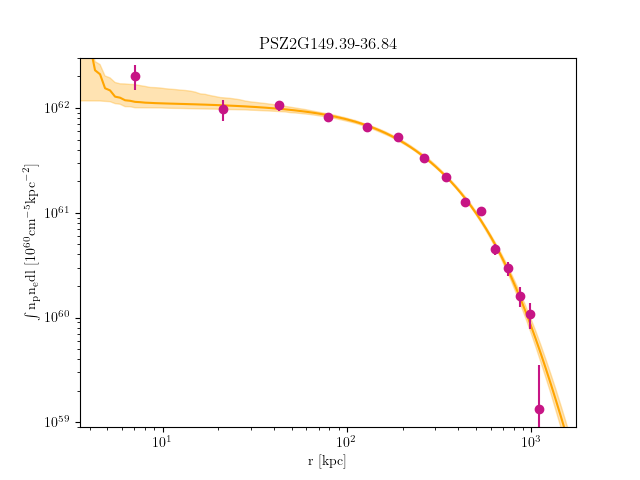

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G149.39-36.84_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.941628215491425 | 9.985913044 | 1.291642056 | 2.177960810000126e-05 | 1.6616509170000963e-05 | 2.781405415000161e-05 |
| 9.941628215491425 | 19.758948768723293 | 9.985913044 | 1.291642056 | 3.086871498000074e-05 | 2.4612935400000588e-05 | 3.799631266000091e-05 |
| 19.758948768723293 | 40.01048247745077 | 9.985913044 | 1.291642056 | 0.0001401260909000078 | 0.00012656892630000705 | 0.00015455338190000862 |
| 40.01048247745077 | 69.92497586207195 | 10.03875848 | 1.309489364 | 0.00029397057038614224 | 0.00027309078788427825 | 0.00031578649739084637 |
| 69.92497586207195 | 108.7311754429849 | 12.51150322 | 1.455702622 | 0.0004998052428947633 | 0.00047239849284393457 | 0.0005281429474955077 |
| 108.7311754429849 | 155.65782774058758 | 14.48438018 | 1.567442282 | 0.0007161626275052862 | 0.0006831021092979524 | 0.0007501362471798997 |
| 155.65782774058758 | 209.93367927527825 | 16.02146533 | 1.664409247 | 0.0007224614891931012 | 0.0006871132245462822 | 0.0007587747328371355 |
| 209.93367927527825 | 270.7874765674548 | 17.04944146 | 1.746318212 | 0.0007058322423646797 | 0.0006689043677280854 | 0.0007437639409785144 |
| 270.7874765674548 | 337.44796613751527 | 17.18170916 | 1.816707505 | 0.0005624012729004846 | 0.0005254787135500924 | 0.0006004047509437426 |
| 337.44796613751527 | 409.14389450585827 | 16.87236381 | 1.878029078 | 0.000604484574180236 | 0.0005640818445449262 | 0.0006460164842314936 |
| 409.14389450585827 | 485.104008192881 | 16.11263777 | 1.924906271 | 0.0003352074420523031 | 0.0002994388699885662 | 0.0003720787448894879 |
| 485.104008192881 | 564.557053718982 | 15.19329509 | 1.972670403 | 0.0002675368660695169 | 0.00023139293074027925 | 0.00030479558752584103 |
| 564.557053718982 | 646.7317776045593 | 14.24218755 | 2.01536276 | 0.00017450191837399174 | 0.00013843315321010813 | 0.00021170870864911632 |
| 646.7317776045593 | 730.8569263700114 | 13.34323535 | 2.053709921 | 0.00013668767136747756 | 9.918009949618853e-05 | 0.00017536140129650974 |
| 730.8569263700114 | 816.1612465357354 | 12.54808879 | 2.088286837 | 1.940592492444021e-05 | 0.0 | 6.181334749851914e-05 |
Temperature Profiles

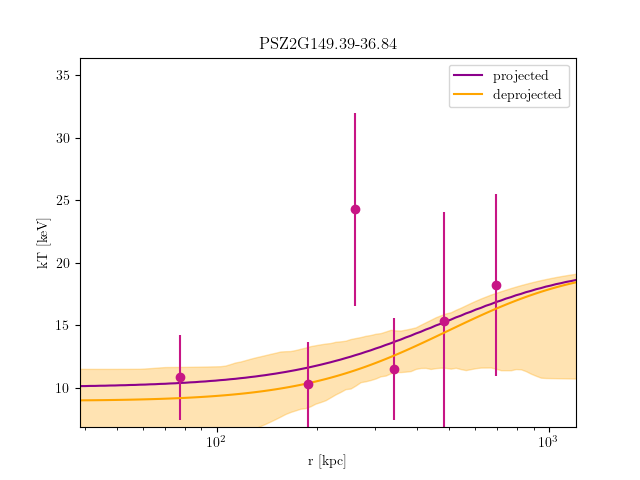

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G149.39-36.84_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 108.73117544298225 | 10.85254364 | 8.95806657 | 13.78339874 | 0.9138367474 | 0.5325402501 | 1.445424975 | 0.001055541243 | 0.0009714156993 | 0.001135321067 |
| 108.73117544298225 | 155.6578277405838 | 10.26517717 | 8.101056436 | 12.89854086 | 0.5907761562 | 0.2320826939 | 1.07968397 | 0.0007948239501 | 0.0007276173874 | 0.0008593612921 |
| 155.6578277405838 | 209.9336792752731 | 24.28376419 | 14.71691763 | 0 | 1.411977349e-08 | 0 | 0.7328394461 | 0.0009254716054 | 0.0008322140895 | 0.0009816458669 |
| 209.9336792752731 | 270.7874765674482 | 11.50310271 | 9.252248692 | 15.89274355 | 1.262549878 | 0.6240204215 | 2.311569746 | 0.0007096022266 | 0.0006213704523 | 0.0007910369326 |
| 270.7874765674482 | 409.14389450584827 | 15.34923321 | 11.94854285 | 28.67372187 | 2.128212436 | 1.119991739 | 4.842834086 | 0.0011104393 | 0.0009233080457 | 0.00126733687 |
| 409.14389450584827 | 564.5570537189682 | 18.23123524 | 13.7340434 | 0 | 5 | 3.640173632 | 0 | 0.0004629025133 | 0.0004161846754 | 0.0005609987025 |
