Cluster
PSZ2G149.75+34.68
Emission Measure Profiles

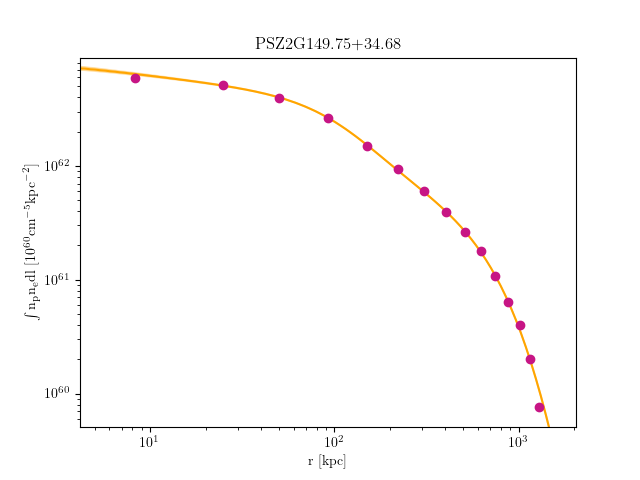

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G149.75+34.68_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.049947273982262 | 6.930569663 | 0.379323419 | 7.773947626000315e-05 | 7.503099164000304e-05 | 8.050988108000325e-05 |
| 11.049947273982262 | 21.961728738104554 | 7.323366019 | 0.577263539 | 0.00019728156290001032 | 0.0001930808006000101 | 0.00020154143240001056 |
| 21.961728738104554 | 44.47095709066083 | 7.767581936 | 0.7029303442 | 0.0006355145498346908 | 0.0006280575165400207 | 0.0006430578623131993 |
| 44.47095709066083 | 77.72039747034368 | 8.312575851 | 0.8124313999 | 0.0011398631005321552 | 0.0011298283104117406 | 0.0011499844507916288 |
| 77.72039747034368 | 120.85281501584574 | 8.977252719 | 0.8996850489 | 0.0013743194451705544 | 0.0013628783036131842 | 0.001385852491855539 |
| 120.85281501584574 | 173.01097486585942 | 9.541582723 | 0.9701214341 | 0.001535281303677237 | 0.0015226080666653431 | 0.0015480533829825443 |
| 173.01097486585942 | 233.33764215907755 | 9.97917281 | 1.02835887 | 0.0015711540351995635 | 0.0015579556251619172 | 0.0015844544112101164 |
| 233.33764215907755 | 300.97558203419254 | 10.31411389 | 1.077555406 | 0.0015175973417569895 | 0.0015044975465738433 | 0.001530797357735248 |
| 300.97558203419254 | 375.06755962989683 | 10.51717829 | 1.119829192 | 0.0014044541310684216 | 0.0013915490904799674 | 0.0014174592250886986 |
| 375.06755962989683 | 454.75634008488356 | 10.60362032 | 1.156664148 | 0.00125596500658466 | 0.00124344074387919 | 0.0012685881696523004 |
| 454.75634008488356 | 539.1846885378447 | 10.51170342 | 1.189083968 | 0.0009714601776939613 | 0.0009597489974439632 | 0.0009832723787427092 |
| 539.1846885378447 | 627.495370127473 | 10.27153941 | 1.217878041 | 0.0007026088337029922 | 0.0006917565516536108 | 0.0007135642459314952 |
| 627.495370127473 | 718.8311499924612 | 9.770556038 | 1.243621527 | 0.000530914306477312 | 0.0005203245850698688 | 0.0005416143161622836 |
| 718.8311499924612 | 812.3347932715022 | 9.03095187 | 1.266729991 | 0.00030689316265512405 | 0.00029684391191547903 | 0.0003170639104677727 |
| 812.3347932715022 | 907.1490651032876 | 8.146865157 | 1.287572852 | 0.0001326460533183354 | 0.0001227519028239318 | 0.0001426836801551095 |
Temperature Profiles

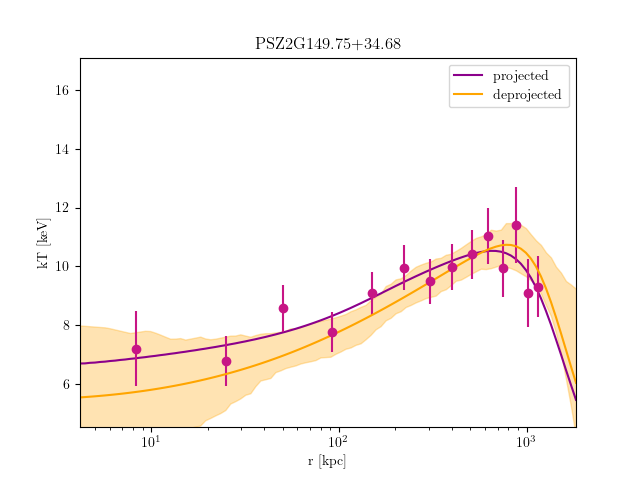

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G149.75+34.68_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 11.049947273981994 | 7.196968985 | 6.193869249 | 8.477981507 | 0.162450533 | 0 | 0.387113929 | 8.121139754e-05 | 7.662982662e-05 | 8.561013787e-05 |
| 11.049947273981994 | 21.961728738104018 | 6.77727296 | 6.22767919 | 7.422428005 | 0.1164107156 | 0.01634317918 | 0.2313205259 | 0.0002184531296 | 0.0002112775574 | 0.0002254945538 |
| 21.961728738104018 | 44.470957090659745 | 8.5662886 | 8.075128513 | 9.139324828 | 0.2509445868 | 0.1740380598 | 0.3335807238 | 0.0006910037708 | 0.0006776884619 | 0.0007040302217 |
| 44.470957090659745 | 77.72039747034178 | 7.772153938 | 7.458416346 | 8.101172879 | 0.340879369 | 0.283123391 | 0.4017385103 | 0.001244595534 | 0.00122627153 | 0.001262724213 |
| 77.72039747034178 | 120.85281501584278 | 9.075642709 | 8.686044765 | 9.509054151 | 0.3186334797 | 0.2582955575 | 0.3820723835 | 0.001519906323 | 0.001498557845 | 0.001540920928 |
| 120.85281501584278 | 173.01097486585522 | 9.959767616 | 9.480637116 | 10.4739402 | 0.2487213427 | 0.1823593331 | 0.3176573322 | 0.001722650201 | 0.001697736197 | 0.001747282359 |
| 173.01097486585522 | 233.33764215907183 | 9.487511809 | 9.047612372 | 9.968241999 | 0.2829027449 | 0.2162887803 | 0.3524848783 | 0.001769837536 | 0.001743793173 | 0.001795552636 |
| 233.33764215907183 | 300.97558203418515 | 9.988508657 | 9.503535072 | 10.52858451 | 0.2805491525 | 0.2080463564 | 0.356848471 | 0.001714922449 | 0.001688547264 | 0.001741081305 |
| 300.97558203418515 | 375.0675596298877 | 10.40718792 | 9.842729255 | 11.04114177 | 0.4353132155 | 0.3432286436 | 0.5330815803 | 0.001552834521 | 0.001524862373 | 0.001580630057 |
| 375.0675596298877 | 454.7563400848725 | 11.03322817 | 10.3211511 | 11.83819997 | 0.5126008347 | 0.3992379327 | 0.6335338349 | 0.001364531167 | 0.001336020409 | 0.001393019992 |
| 454.7563400848725 | 539.1846885378316 | 9.933205278 | 9.214105928 | 10.75381411 | 0.5837094869 | 0.4467423688 | 0.7314442986 | 0.001049698807 | 0.001022504694 | 0.001076690267 |
| 539.1846885378316 | 627.4953701274577 | 11.40885586 | 10.34854068 | 12.62956453 | 1.356400052 | 1.072043622 | 1.683693478 | 0.0006957988374 | 0.00066695331 | 0.0007240521676 |
| 627.4953701274577 | 718.8311499924437 | 9.092943011 | 8.228234971 | 10.20007367 | 1.830298641 | 1.447075721 | 2.314746265 | 0.0004813727423 | 0.0004528592856 | 0.0005086334292 |
| 718.8311499924437 | 812.3347932714823 | 9.302109922 | 8.629322181 | 10.34136161 | 4.999736943 | 4.23032748 | 0 | 0.0001975784825 | 0.0001894922826 | 0.0002140074632 |
