Cluster
PSZ2G162.49-71.98
Emission Measure Profiles

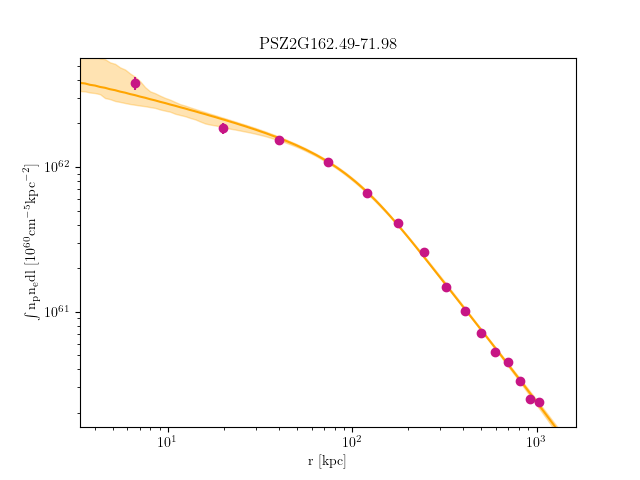

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G162.49-71.98_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.848496840104399 | 2.597582664 | 1.057462888 | 2.3245859210000818e-05 | 2.101432775000074e-05 | 2.56236070100009e-05 |
| 7.848496840104399 | 15.598858015376285 | 2.597582664 | 1.057462888 | 3.3484776350001626e-05 | 3.0789422350001495e-05 | 3.632596688000177e-05 |
| 15.598858015376285 | 31.58659109842827 | 2.928210807 | 1.217892109 | 0.00011462695193496964 | 0.00010968983225643682 | 0.00011970548192470363 |
| 31.58659109842827 | 55.202823944138 | 3.773935802 | 1.419222634 | 0.00021969353997029932 | 0.00021290425758334225 | 0.00022662101693047846 |
| 55.202823944138 | 85.83868440738313 | 4.971095521 | 1.57964681 | 0.0002819224199997379 | 0.00027420243897210327 | 0.0002897799735649384 |
| 85.83868440738313 | 122.8853003430412 | 6.562199633 | 1.709150175 | 0.00031542679931879236 | 0.0003070654192826083 | 0.00032392980176304596 |
| 122.8853003430412 | 165.73379960598996 | 8.24728914 | 1.816220371 | 0.00031692388002547213 | 0.0003080263130921772 | 0.00032597642889446027 |
| 165.73379960598996 | 213.77531005110697 | 9.824093183 | 1.906665395 | 0.00026897106929814774 | 0.0002604848822898782 | 0.0002776149583903562 |
| 213.77531005110697 | 266.4009595332699 | 11.22090974 | 1.984401106 | 0.00025394751673786677 | 0.00024564416279584586 | 0.00026240342322323665 |
| 266.4009595332699 | 323.0018759073564 | 12.41528295 | 2.052115176 | 0.00023543058301411183 | 0.00022700172787463232 | 0.0002440190837375721 |
| 323.0018759073564 | 382.96918702824416 | 13.4553251 | 2.111730924 | 0.00022256346742250056 | 0.00021400706478717852 | 0.00023128271101095337 |
| 382.96918702824416 | 445.6940207508105 | 14.31938166 | 2.164671245 | 0.0002314714658926249 | 0.00022228466864396163 | 0.0002408284099362266 |
| 445.6940207508105 | 510.56750492993353 | 14.91765011 | 2.211993629 | 0.00020381621338157595 | 0.00019432638431681975 | 0.0002134960193020959 |
| 510.56750492993353 | 576.9807674204908 | 15.14137806 | 2.254499925 | 0.0001804914341646829 | 0.00017065264803362712 | 0.00019053959459769938 |
| 576.9807674204908 | 644.3249360773596 | 15.23419291 | 2.292817464 | 0.0001957232322582175 | 0.00018464708377008377 | 0.0002070397632614598 |
Temperature Profiles

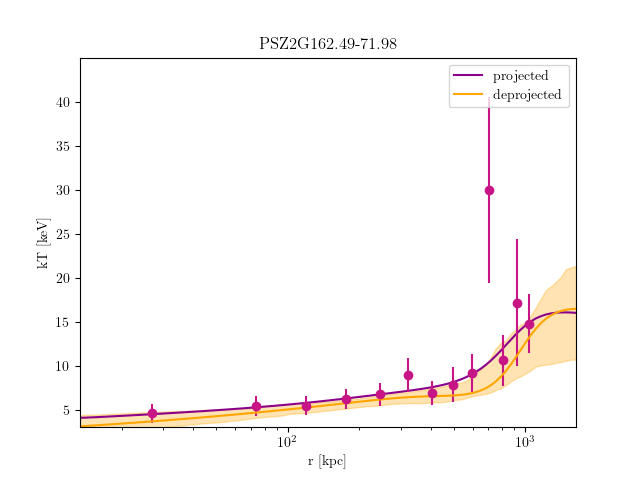

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G162.49-71.98_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 31.586591098427498 | 4.659978163 | 4.259999908 | 5.172205619 | 0.4273920671 | 0.2710067112 | 0.6201075891 | 0.0002071669691 | 0.0001940660188 | 0.0002201312063 |
| 31.586591098427498 | 55.20282394413665 | 5.548607229 | 4.905270853 | 6.206630456 | 0.1807431486 | 0.06203736124 | 0.3239490164 | 0.0002939592228 | 0.0002800023783 | 0.0003083901236 |
| 55.20282394413665 | 85.83868440738102 | 5.530141568 | 5.074575879 | 6.098909151 | 0.2823278693 | 0.1627405488 | 0.4229745768 | 0.0003782092955 | 0.0003612464752 | 0.0003950966948 |
| 85.83868440738102 | 122.8853003430382 | 6.296842293 | 5.700758527 | 7.043885051 | 0.1667246999 | 0.05485598945 | 0.3010667611 | 0.0004291501975 | 0.0004110688804 | 0.0004469971803 |
| 122.8853003430382 | 165.73379960598592 | 6.85095878 | 6.191226947 | 7.958430433 | 0.2262556476 | 0.08851033236 | 0.3882472945 | 0.0004212763434 | 0.0004023294075 | 0.0004400083617 |
| 165.73379960598592 | 213.77531005110177 | 9.017386076 | 7.696459996 | 11.04751247 | 0.4531489532 | 0.2051188736 | 0.7496388301 | 0.0003343186894 | 0.0003149388111 | 0.0003531249162 |
| 213.77531005110177 | 266.4009595332634 | 6.991070074 | 6.1944863 | 8.091295677 | 0.8341373517 | 0.5582188262 | 1.176796107 | 0.0002867109539 | 0.000267473336 | 0.000305587508 |
| 266.4009595332634 | 323.00187590734856 | 7.941784448 | 6.544530988 | 9.914123136 | 0.4576985312 | 0.1626578347 | 0.7877522174 | 0.0002846821669 | 0.0002653551977 | 0.0003038320866 |
| 323.00187590734856 | 382.96918702823484 | 9.228858082 | 7.752319985 | 11.63087014 | 1.29346236 | 0.7984566659 | 1.953692096 | 0.0002319016261 | 0.0002103526068 | 0.0002528201303 |
| 382.96918702823484 | 445.69402075079967 | 29.99981382 | 21.06306531 | 0 | 1.678055736 | 0.9221918789 | 2.184869282 | 0.0002760190612 | 0.0002254195368 | 0.0002916523804 |
| 445.69402075079967 | 510.5675049299211 | 10.68382336 | 8.807845326 | 14.18591785 | 3.09578494 | 1.9638119 | 4.903054438 | 0.000169153234 | 0.0001426156219 | 0.0001945233077 |
| 510.5675049299211 | 576.9807674204767 | 17.21260999 | 12.94592381 | 27.23788011 | 5 | 4.12474944 | 0 | 0.0001407635464 | 0.0001281436922 | 0.0001548232356 |
| 576.9807674204767 | 644.3249360773439 | 14.83763984 | 11.97202313 | 18.40531783 | 4.999993997 | 4.511239914 | 0 | 0.0001486973372 | 0.0001389636849 | 0.0001622168829 |
