Cluster
PSZ2G163.69+53.52
Emission Measure Profiles

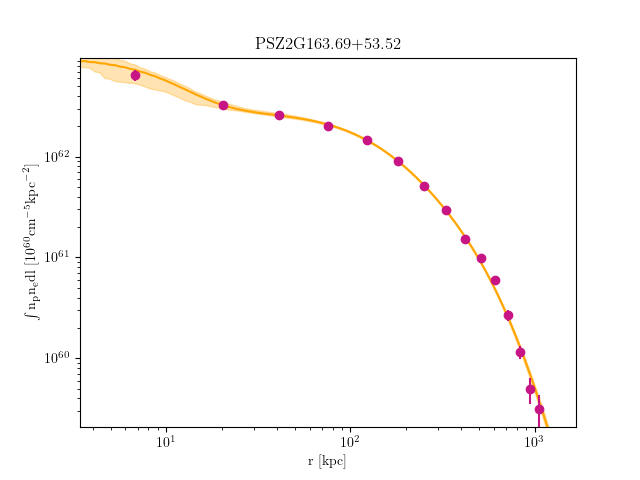

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G163.69+53.52_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 10.133950612222735 | 6.007649013 | 0.6269999899 | 7.313551990000412e-05 | 6.477451434000365e-05 | 8.217984751000464e-05 |
| 10.133950612222735 | 20.141188810467217 | 6.007649013 | 0.6269999899 | 0.00010999758510000898 | 0.00010001913710000818 | 0.00012060639760000986 |
| 20.141188810467217 | 40.784491695824954 | 7.175724436 | 0.5405591508 | 0.0003578406131000148 | 0.00033947495500001406 | 0.0003768424023000156 |
| 40.784491695824954 | 71.2776857660912 | 7.194719071 | 0.4294283226 | 0.0007692983990000149 | 0.0007427160605000143 | 0.0007964897481000154 |
| 71.2776857660912 | 110.83459751906115 | 6.6842675 | 0.3406289959 | 0.0011751657248714167 | 0.0011419140017730816 | 0.0012090329503671579 |
| 110.83459751906115 | 158.66905345252988 | 6.087215127 | 0.2679394819 | 0.0013089111930833512 | 0.0012720188800838992 | 0.0013464705972691983 |
| 158.66905345252988 | 213.99488006429283 | 5.440132075 | 0.2094040454 | 0.0011779135246309587 | 0.0011416241517479588 | 0.0012148950442424505 |
| 213.99488006429283 | 276.02590385214495 | 4.698921167 | 0.1597330971 | 0.0009885153595566973 | 0.000953655323153371 | 0.001024093800070547 |
| 276.02590385214495 | 343.9759513138816 | 3.994859114 | 0.1156565706 | 0.0007184135883608601 | 0.0006865504970759248 | 0.0007510457408029498 |
| 343.9759513138816 | 417.0588489472981 | 3.397895788 | 0.0802314674 | 0.0006082478303778067 | 0.0005746229455433708 | 0.0006428180009165994 |
| 417.0588489472981 | 494.4884232501893 | 2.902894761 | 0.04708278145 | 0.0004674393360947225 | 0.0004321645911290949 | 0.0005039041418657823 |
| 494.4884232501893 | 575.4785007203506 | 2.505828405 | 0.01624516171 | 0.00025841986622481705 | 0.00022598049476865788 | 0.0002921807315449092 |
| 575.4785007203506 | 659.2429078555773 | 2.177764972 | 1 | 0.00013348576387616274 | 0.00011461154873359394 | 0.0001532335045414468 |
| 659.2429078555773 | 744.9954711536648 | 1.91488861 | 1 | 6.654021937230709e-05 | 4.78592395068221e-05 | 8.642891136047257e-05 |
| 744.9954711536648 | 831.9500171124075 | 1.701552937 | 1 | 4.7225933353410526e-05 | 2.9877814977800003e-05 | 6.596450837370023e-05 |
Temperature Profiles

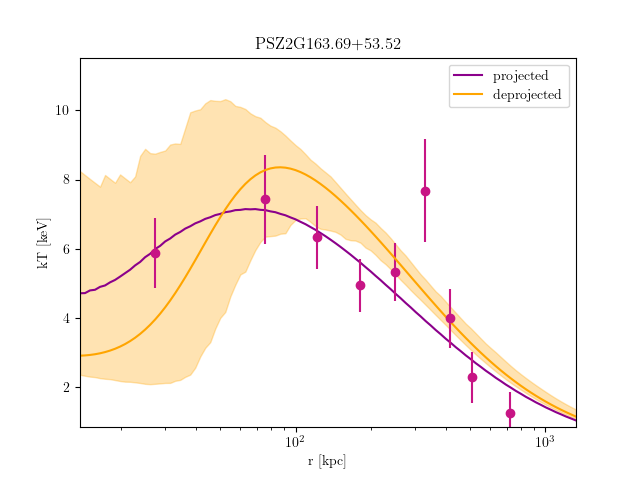

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G163.69+53.52_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 40.78449169582396 | 5.87769087 | 5.159392906 | 6.793948524 | 0.6203353534 | 0.3668170734 | 0.9587760866 | 0.0005539819759 | 0.0005089820646 | 0.000597486119 |
| 40.78449169582396 | 71.27768576608946 | 7.428448341 | 6.432082867 | 8.723338019 | 0.4652657956 | 0.2379927719 | 0.7481028064 | 0.0007626842826 | 0.0007150304157 | 0.0008083669176 |
| 71.27768576608946 | 110.83459751905843 | 6.339391252 | 5.699240398 | 7.082436206 | 0.292515968 | 0.1516047547 | 0.4620572277 | 0.001193459324 | 0.001137281909 | 0.001248682154 |
| 110.83459751905843 | 158.66905345252601 | 4.951284429 | 4.517947459 | 5.487377631 | 0.01449595007 | 0 | 0.1169616287 | 0.001444496874 | 0.001380519536 | 0.001499580508 |
| 158.66905345252601 | 213.9948800642876 | 5.321533337 | 4.758859392 | 5.948305113 | 0.2826819252 | 0.133921987 | 0.4616343028 | 0.001159117248 | 0.001096183334 | 0.001221456293 |
| 213.9948800642876 | 276.02590385213824 | 7.685631607 | 6.550194123 | 9.254606751 | 0.2264006198 | 0 | 0.499777542 | 0.0009195269351 | 0.000863446252 | 0.0009733128633 |
| 276.02590385213824 | 343.97595131387317 | 3.987059147 | 3.4598636 | 4.649847551 | 0.1180596642 | 0 | 0.3294613503 | 0.0007169007164 | 0.0006560883728 | 0.0007813787784 |
| 343.97595131387317 | 417.0588489472879 | 2.281892398 | 1.90311192 | 2.748165743 | 1.264149987e-07 | 0 | 0.1153405611 | 0.0007326156007 | 0.000638009664 | 0.0007983774661 |
| 417.0588489472879 | 659.2429078555613 | 1.263413152 | 1.108313877 | 1.385759211 | 8.69627134e-08 | 0 | 0.005947806572 | 0.001548582261 | 0.001367636976 | 0.00169908506 |
