Cluster
PSZ2G166.09+43.38
Emission Measure Profiles

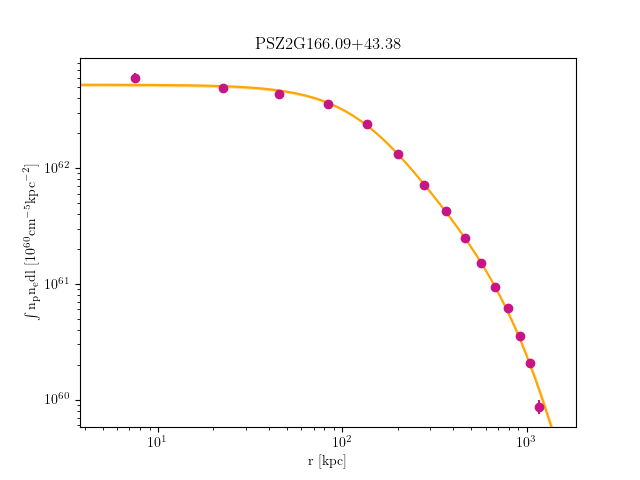

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G166.09+43.38_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.709870425255449 | 8.746908814 | 0.2750474579 | 4.624483754000162e-05 | 4.1721943580001456e-05 | 5.1079960700001786e-05 |
| 8.709870425255449 | 17.310834783247177 | 8.746908814 | 0.2750474579 | 0.00011122263170001073 | 0.00010444266890001009 | 0.00011828557190001141 |
| 17.310834783247177 | 35.053223725216895 | 8.963790827 | 0.3017623659 | 0.0004134750895000187 | 0.0004000251343000181 | 0.00042722003800001933 |
| 35.053223725216895 | 61.26134130611884 | 8.619422932 | 0.3216161977 | 0.0009244096161484883 | 0.0009049858501973982 | 0.0009441055740604384 |
| 61.26134130611884 | 95.25949158090725 | 8.313020057 | 0.3366453663 | 0.0013069555620358983 | 0.001283749164205324 | 0.001330434612192222 |
| 95.25949158090725 | 136.37197860453625 | 8.061037084 | 0.3455990841 | 0.0012734164250489705 | 0.0012498066632988126 | 0.0012973117141284701 |
| 136.37197860453625 | 183.9231064319602 | 7.821346974 | 0.3574255156 | 0.0011066340463446098 | 0.0010843137522745425 | 0.0011292413802269441 |
| 183.9231064319602 | 237.2371791181333 | 7.55660325 | 0.3616406919 | 0.0009737462436240992 | 0.0009529922799463978 | 0.0009947740946849037 |
| 237.2371791181333 | 295.6385007180096 | 7.156208718 | 0.3631811045 | 0.000783658206905468 | 0.0007646493693505955 | 0.0008029399140646687 |
| 295.6385007180096 | 358.45137528654374 | 6.519150574 | 0.3679734233 | 0.0006344363426356003 | 0.000616694922878189 | 0.0006524568272564151 |
| 358.45137528654374 | 425.0001068786894 | 5.472170713 | 0.3722302465 | 0.0004949559954480737 | 0.0004776920249446822 | 0.0005125369102029549 |
| 425.0001068786894 | 494.6089995494011 | 4.226175473 | 0.37433416 | 0.0004015910155568236 | 0.00038372122974268934 | 0.0004198501676849067 |
| 494.6089995494011 | 566.602357353633 | 2.989031552 | 0.3771146764 | 0.00027736253185971005 | 0.0002611949979661666 | 0.0002939356138262833 |
| 566.602357353633 | 640.3044843463398 | 1.950768946 | 0.3800777708 | 0.00018874359475056925 | 0.0001734882298106691 | 0.0002044690784022152 |
| 640.3044843463398 | 715.0396845824748 | 1.186537027 | 0.3827443555 | 8.933821495118815e-05 | 7.71966249840992e-05 | 0.00010204477120441935 |
Temperature Profiles

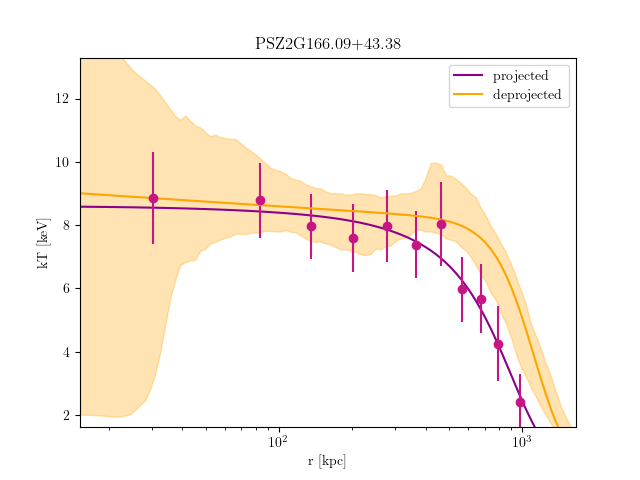

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G166.09+43.38_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 35.053223725216036 | 8.863082462 | 7.772252254 | 10.23042816 | 5.876991496e-08 | 0 | 0.102478745 | 0.0006183295511 | 0.0005993251675 | 0.0006357698403 |
| 35.053223725216036 | 61.261341306117345 | 8.782319247 | 7.999829389 | 9.777850725 | 0.6128746337 | 0.4476259926 | 0.8022061076 | 0.0008768255783 | 0.0008432478113 | 0.0009096375107 |
| 61.261341306117345 | 95.25949158090492 | 7.957505425 | 7.339056724 | 8.674237426 | 0.3142554777 | 0.2025286585 | 0.4381756822 | 0.001290256698 | 0.001252331205 | 0.001327402418 |
| 95.25949158090492 | 136.37197860453293 | 7.59452085 | 6.974397376 | 8.483714013 | 0.2843526586 | 0.1724546971 | 0.4080210753 | 0.001274496088 | 0.001235587337 | 0.001312620715 |
| 136.37197860453293 | 183.92310643195574 | 7.974189156 | 7.236804177 | 8.884609512 | 0.4496444668 | 0.3030048965 | 0.6158705299 | 0.001078201952 | 0.001039054926 | 0.001116418994 |
| 183.92310643195574 | 237.23717911812753 | 7.379516051 | 6.766246815 | 8.216619686 | 0.4389564592 | 0.2943930637 | 0.6092564737 | 0.0009593948844 | 0.0009224012156 | 0.0009952084631 |
| 237.23717911812753 | 295.6385007180024 | 8.041626284 | 7.090579235 | 9.232027612 | 0.1522266502 | 0 | 0.3256474725 | 0.0008150877393 | 0.0007823049608 | 0.0008469424335 |
| 295.6385007180024 | 358.4513752865349 | 5.976077528 | 5.330737881 | 6.683173223 | 0.5492509318 | 0.3421491107 | 0.7965119155 | 0.0006073402069 | 0.0005722261519 | 0.0006418099102 |
| 358.4513752865349 | 425.000106878679 | 5.673274699 | 4.923837393 | 6.471021153 | 0.6489305193 | 0.376313551 | 0.9842657044 | 0.0004577526188 | 0.0004227808083 | 0.0004920014629 |
| 425.000106878679 | 494.608999549389 | 4.258140267 | 3.499932432 | 5.262023164 | 0.1798559689 | 0 | 0.4600326664 | 0.0004201992372 | 0.0003799854606 | 0.0004633106517 |
| 494.608999549389 | 640.3044843463242 | 2.420669995 | 2.035597439 | 2.898358823 | 0.0117150249 | 0 | 0.1341471376 | 0.0006032476015 | 0.0005329382709 | 0.0006603018168 |
