Cluster
PSZ2G175.69-85.98
Emission Measure Profiles

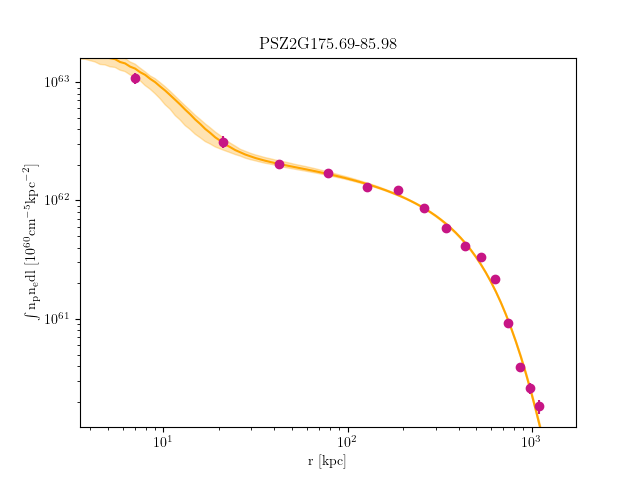

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G175.69-85.98_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.795368729596433 | 7.195793589 | 0.7991756072 | 5.6798173810002666e-05 | 5.11539567500024e-05 | 6.283997541000294e-05 |
| 7.795368729596433 | 15.49326609512421 | 7.195793589 | 0.7991756072 | 4.8999701720002366e-05 | 4.338332998000209e-05 | 5.506759425000265e-05 |
| 15.49326609512421 | 31.372774881560822 | 7.195793589 | 0.7991756072 | 0.00013217968080000595 | 0.00012153890420000548 | 0.00014339681510000646 |
| 31.372774881560822 | 54.829144526205404 | 7.230103504 | 0.6819020122 | 0.0003008296560000162 | 0.00028306370480001524 | 0.00031928358390001716 |
| 54.829144526205404 | 85.25762446635711 | 6.935176 | 0.5478828691 | 0.00048279922476376886 | 0.00046155867637819004 | 0.0005046406037209961 |
| 85.25762446635711 | 122.05346413931498 | 7.264272937 | 0.4385736383 | 0.0008111429054912497 | 0.0007843887249475724 | 0.0008384586817762328 |
| 122.05346413931498 | 164.61191298237824 | 7.28572994 | 0.3512089264 | 0.0009138926646974845 | 0.000885915441758528 | 0.00094239943663708 |
| 164.61191298237824 | 212.32822043284594 | 6.250334537 | 0.2686359177 | 0.0009117076450703169 | 0.0008834607179319095 | 0.0009404776340447187 |
| 212.32822043284594 | 264.5976359280171 | 5.193757496 | 0.2076541138 | 0.000891437670009674 | 0.0008622361454231368 | 0.0009211938960750293 |
| 264.5976359280171 | 320.81540890519125 | 4.346961871 | 0.07269717839 | 0.0009606692793290999 | 0.0009287216984592974 | 0.0009932170206856652 |
| 320.81540890519125 | 380.37678880166703 | 3.656130073 | 0.01378368969 | 0.0007850883538557548 | 0.0007536799504605518 | 0.0008171557040758325 |
| 380.37678880166703 | 442.6770250547438 | 3.124048931 | 1 | 0.00040889171183847324 | 0.00038852378029319144 | 0.0004297486876642573 |
| 442.6770250547438 | 507.1113671017207 | 2.70442482 | 1 | 0.0002069488623784428 | 0.00018962587507702678 | 0.0002248354693932393 |
| 507.1113671017207 | 573.075064379897 | 2.367238835 | 1 | 0.00016192272331152103 | 0.00014534320869111502 | 0.00017908142425965436 |
| 573.075064379897 | 639.9633663265713 | 2.088682746 | 1 | 0.00012876032076738434 | 0.00011226448678606505 | 0.0001458930233433987 |
Temperature Profiles

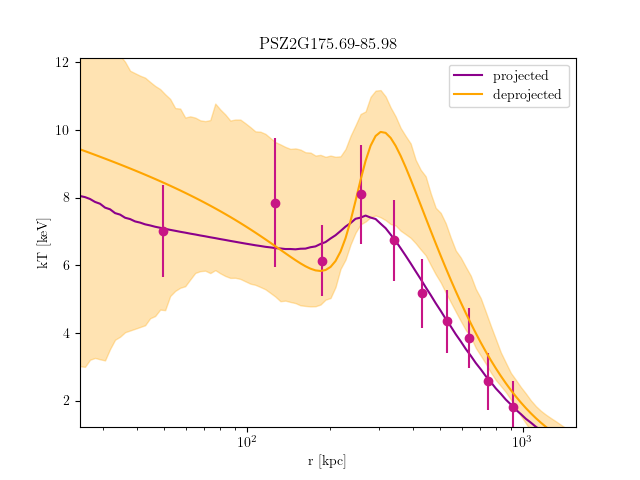

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G175.69-85.98_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 54.82914452620407 | 7.012675118 | 5.98789296 | 8.306766866 | 5.462170503e-18 | 0.5 | 0 | 0.0006705940894 | 0.0006407207914 | 0.0007023949284 |
| 54.82914452620407 | 85.25762446635503 | 7.845200203 | 6.444389992 | 9.968515481 | 0.4012916167 | 0.1139674157 | 0.7554849931 | 0.0004951349837 | 0.0004566156112 | 0.0005322119545 |
| 85.25762446635503 | 122.05346413931201 | 6.136600906 | 5.412119828 | 6.911338428 | 3.635836415e-08 | 0 | 0.1241870688 | 0.0009097892165 | 0.000868901312 | 0.0009444298961 |
| 122.05346413931201 | 164.6119129823742 | 8.091526198 | 6.939835768 | 9.470572214 | 0.1744385464 | 0 | 0.3818587116 | 0.000942211278 | 0.0008953486359 | 0.0009876259366 |
| 164.6119129823742 | 212.32822043284074 | 6.73177277 | 5.892284683 | 7.7720348 | 0.02673535408 | 0 | 0.1942133483 | 0.0009571274448 | 0.0009108604649 | 0.000994655666 |
| 212.32822043284074 | 264.5976359280106 | 5.168695882 | 4.586161987 | 6.00269248 | 0.1279232333 | 0 | 0.3110852689 | 0.0009105653531 | 0.000857606064 | 0.0009634267268 |
| 264.5976359280106 | 320.8154089051834 | 4.339576101 | 3.86251045 | 5.003664779 | 2.317719167e-18 | 0 | 0.04329206907 | 0.0009837793295 | 0.0009390693015 | 0.001029525661 |
| 320.8154089051834 | 380.37678880165777 | 3.850850211 | 3.384185511 | 4.416804308 | 4.398538307e-07 | 0 | 0.06810786195 | 0.0007774799409 | 0.0007338461385 | 0.000818518363 |
| 380.37678880165777 | 442.67702505473295 | 2.568205648 | 2.227694399 | 3.029590157 | 1.14171964e-06 | 0 | 0.1281973215 | 0.0006655869273 | 0.000594780892 | 0.0006914588913 |
| 442.67702505473295 | 573.075064379883 | 1.820323025 | 1.597567775 | 2.06817945 | 0.3363644785 | 0.1297991073 | 0.6754469152 | 0.0005144469061 | 0.0004009658412 | 0.0006591007648 |
