Cluster
PSZ2G178.94+56.00
Emission Measure Profiles

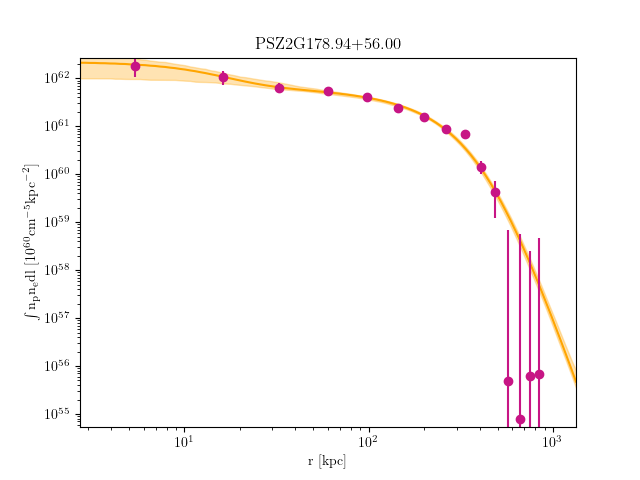

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G178.94+56.00_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 12.827293358722896 | 1.81618312 | 0.03570224738 | 3.6873495720001734e-05 | 2.399739468000113e-05 | 5.329489841000251e-05 |
| 12.827293358722896 | 25.494197411390697 | 1.81618312 | 0.03570224738 | 6.503173125000388e-05 | 4.733534734000282e-05 | 8.619773694000514e-05 |
| 25.494197411390697 | 51.623957870660895 | 1.81618312 | 0.03570224738 | 0.00016049784500000815 | 0.00013078509750000665 | 0.00019377335580000987 |
| 51.623957870660895 | 90.22145659065737 | 1.821181375 | 0.04080188627 | 0.0003665794312000162 | 0.0003193945959000141 | 0.00041750012250001844 |
| 90.22145659065737 | 140.291575425504 | 1.986519103 | 0.0425597202 | 0.00059210013290003 | 0.0005287125194000268 | 0.0006594601553000335 |
| 140.291575425504 | 200.8391962293245 | 2.032221268 | 0.03438024995 | 0.0006243171439000294 | 0.0005550938595000262 | 0.0006976345105000328 |
| 200.8391962293245 | 270.8692008562429 | 2.010742527 | 0.02424158948 | 0.000654823167600028 | 0.0005812307140000249 | 0.0007324345267000314 |
| 270.8692008562429 | 349.38647116038294 | 1.948308525 | 0.01025623563 | 0.0005401934318000177 | 0.0004630808273000152 | 0.0006217731523000204 |
| 349.38647116038294 | 435.39588899586846 | 1.859019266 | 5.095726101e-06 | 0.0005883942315000336 | 0.0005015973610000286 | 0.0006799014715000388 |
| 435.39588899586846 | 527.9023362168236 | 1.753245076 | 1 | 0.00015850759706331066 | 0.00011739371725162572 | 0.00020205520696314015 |
| 527.9023362168236 | 625.9106946773719 | 1.639866955 | 1 | 5.8398394491789955e-05 | 1.9074326785480905e-05 | 0.00010020808383989867 |
| 625.9106946773719 | 728.4258462316371 | 1.5688319 | 1 | 8.53038318557655e-09 | 0.0 | 2.3437285107781164e-05 |
| 728.4258462316371 | 834.4526727337434 | 1.5688319 | 1 | 1.6299631228465567e-09 | 0.0 | 2.3099846350559233e-05 |
| 834.4526727337434 | 942.9960560378149 | 1.5688319 | 1 | 1.4579788925101513e-08 | 0.0 | 1.2228167971985976e-05 |
| 942.9960560378149 | 1053.0608779979746 | 1.5688319 | 1 | 1.8129702611884685e-08 | 0.0 | 2.563571518228619e-05 |
Temperature Profiles

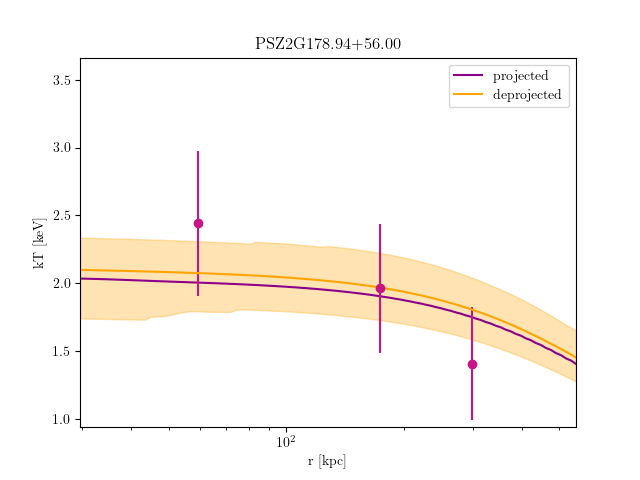

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G178.94+56.00_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 140.29157542550058 | 2.442518398 | 2.198559387 | 3.029769726 | 3.150681e-05 | 0 | 0.2506070117 | 0.001061136668 | 0.0008443422633 | 0.001196074462 |
| 140.29157542550058 | 270.86920085623626 | 1.961343325 | 1.671622496 | 2.340087483 | 5.54205434e-12 | 0 | 0.09815674439 | 0.001336022768 | 0.001126984193 | 0.001572360026 |
| 270.86920085623626 | 435.3958889958578 | 1.408028265 | 1.184852399 | 1.687309846 | 3.795213864e-11 | 0 | 0.02390345631 | 0.001506216389 | 0.001213060433 | 0.001887461363 |
