Cluster
PSZ2G192.18+56.12
Emission Measure Profiles

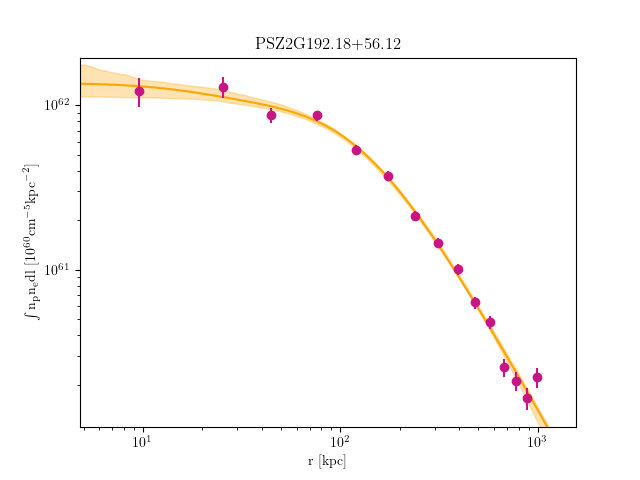

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G192.18+56.12_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 17.500206255496906 | 4.565680955 | 0.1894408802 | 4.3410489840001466e-05 | 3.54741993800012e-05 | 5.241211583000177e-05 |
| 17.500206255496906 | 28.85661677410476 | 4.565680955 | 0.1894408802 | 7.901213249000365e-05 | 6.818073068000314e-05 | 9.09056599500042e-05 |
| 28.85661677410476 | 52.28304246538192 | 4.565680955 | 0.1894408802 | 0.00019046920100000922 | 0.0001730962308000084 | 0.0002089032256000101 |
| 52.28304246538192 | 86.88731819315169 | 4.920818394 | 0.2512370709 | 0.00048276003880001305 | 0.00045529105960001235 | 0.0005112508744000139 |
| 86.88731819315169 | 131.77727882123745 | 5.079907816 | 0.2774340177 | 0.0006080353151000328 | 0.0005766849639000312 | 0.0006404146930000346 |
| 131.77727882123745 | 186.06075921346235 | 5.107222292 | 0.2980837196 | 0.000742347154800037 | 0.0007052933510000351 | 0.0007805412380000389 |
| 186.06075921346235 | 248.8455942336499 | 5.044556769 | 0.3162029373 | 0.0006680089217528762 | 0.0006287959242329607 | 0.0007085623604025557 |
| 248.8455942336499 | 319.23961874562326 | 4.892997606 | 0.3314904122 | 0.0006709215155782211 | 0.0006307240136775885 | 0.0007124437321868933 |
| 319.23961874562326 | 396.35066761320576 | 4.681711441 | 0.3449761087 | 0.0006407140302770885 | 0.0006002519459831307 | 0.0006824744742159011 |
| 396.35066761320576 | 479.286575700221 | 4.418124486 | 0.3566395438 | 0.0005307245401161827 | 0.0004916846232747298 | 0.0005710808054921383 |
| 479.286575700221 | 567.1551778704919 | 4.143981447 | 0.3669351159 | 0.0005089117148353511 | 0.00046838685301280606 | 0.0005508045289774649 |
| 567.1551778704919 | 659.0643089878419 | 3.872413876 | 0.3760956929 | 0.00033127124648320755 | 0.00029323561394182504 | 0.0003707730654060547 |
| 659.0643089878419 | 754.1218039160942 | 3.606850485 | 0.3842953865 | 0.0003285153029168853 | 0.00028725116581478517 | 0.0003713771887797761 |
| 754.1218039160942 | 851.4354975190728 | 3.3591067 | 0.3916693673 | 0.0002984363198310394 | 0.0002544097035416997 | 0.00034424220941535466 |
| 851.4354975190728 | 950.1132246605998 | 3.131092919 | 0.3983250507 | 0.00045765842767418605 | 0.00039810673367494064 | 0.0005196668411535327 |
Temperature Profiles

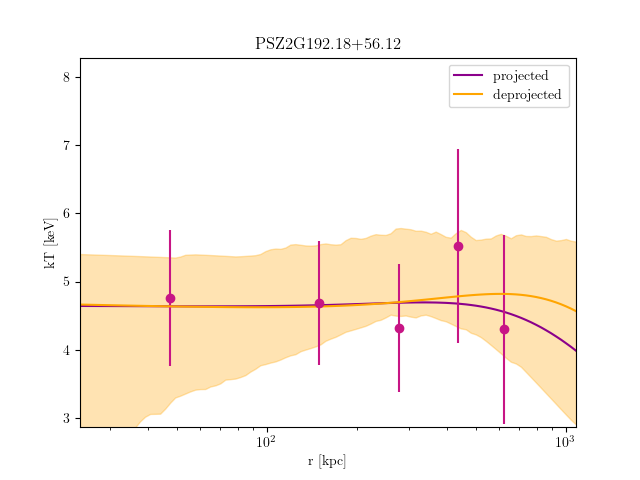

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G192.18+56.12_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 86.88731819314957 | 4.753300046 | 4.131401327 | 5.540407503 | 2.90462384e-06 | 0 | 0.1376329551 | 0.0008550969851 | 0.0007982227929 | 0.0009025770902 |
| 86.88731819314957 | 186.0607592134578 | 4.682122468 | 4.20262951 | 5.355849036 | 0.1392627098 | 0.02240485094 | 0.2854060929 | 0.001442348442 | 0.001354010609 | 0.001532045988 |
| 186.0607592134578 | 319.2396187456155 | 4.317809756 | 3.759838673 | 4.984712318 | 0.1312908219 | 0 | 0.3265791522 | 0.00145248107 | 0.001338339999 | 0.00157499045 |
| 319.2396187456155 | 479.2865757002093 | 5.52197218 | 4.643352265 | 7.109330584 | 0.5052331161 | 0.1913315551 | 0.9098161667 | 0.00109714259 | 0.0009883151935 | 0.001203826959 |
| 479.2865757002093 | 659.0643089878258 | 4.300528071 | 3.358557593 | 5.743240594 | 0.4496157334 | 0.06975732448 | 1.022587362 | 0.0008119882966 | 0.0006850338586 | 0.0009556221863 |
