Cluster
PSZ2G195.75-24.32
Emission Measure Profiles

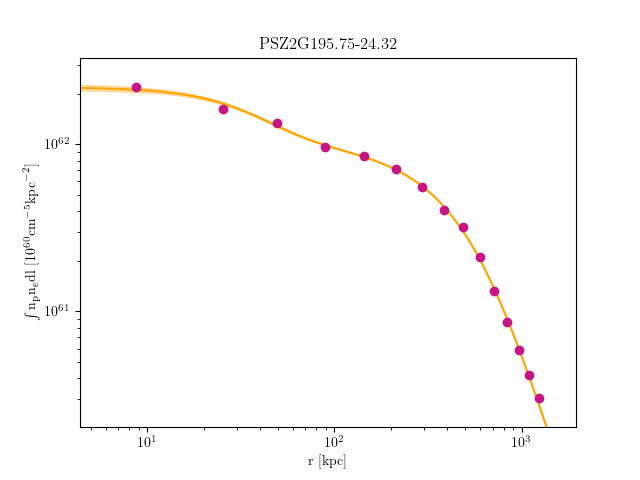

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G195.75-24.32_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 10.633771527817036 | 2.940025681 | 0.5984653053 | 2.58514839930294e-05 | 2.489971816157808e-05 | 2.6824903615754927e-05 |
| 10.633771527817036 | 20.147084757314325 | 4.038150066 | 0.9046882348 | 4.955266719393375e-05 | 4.818017712546193e-05 | 5.0948895510902324e-05 |
| 20.147084757314325 | 39.771500859875424 | 5.180018594 | 1.091290305 | 0.00016301480641411317 | 0.00016039094725579014 | 0.00016567859594243087 |
| 39.771500859875424 | 68.75964931917575 | 6.731299486 | 1.257686341 | 0.00031594051395594547 | 0.0003126360985609865 | 0.0003192778477509108 |
| 68.75964931917575 | 106.36415961889075 | 8.479330106 | 1.391695642 | 0.0005795297612379289 | 0.0005749229219572016 | 0.0005841714232771532 |
| 106.36415961889075 | 151.8376612426957 | 10.2234454 | 1.500457665 | 0.0008682188691339361 | 0.0008625531315861277 | 0.0008739193848077721 |
| 151.8376612426957 | 204.4327836742662 | 11.99176292 | 1.590634364 | 0.001078195693115461 | 0.001071973948599406 | 0.001084450869711655 |
| 204.4327836742662 | 263.40215639727757 | 13.63101367 | 1.666944777 | 0.0011645949412753597 | 0.0011583359597136286 | 0.00117088463902729 |
| 263.40215639727757 | 327.99840889540513 | 15.12778986 | 1.732584483 | 0.0012640011616090246 | 0.0012577092914476207 | 0.0012703211717237394 |
| 327.99840889540513 | 397.47417065232463 | 16.46992638 | 1.789827952 | 0.001106561818010738 | 0.0011004720783276136 | 0.001112680424904923 |
| 397.47417065232463 | 471.082071151711 | 17.68963993 | 1.840238756 | 0.0008759481543575452 | 0.0008702028196962373 | 0.000881723693888074 |
| 471.082071151711 | 548.0747398772398 | 18.83575648 | 1.885028299 | 0.0007024003708404018 | 0.0006969691667610955 | 0.0007078625964125199 |
| 548.0747398772398 | 627.7048063125868 | 19.87148658 | 1.92508474 | 0.0005715699037628073 | 0.0005662531255467884 | 0.0005769198436486955 |
| 627.7048063125868 | 709.2248999414273 | 20.80068962 | 1.961049299 | 0.00046832332006570146 | 0.00046302765568437796 | 0.0004736549127258181 |
| 709.2248999414273 | 791.8876502474362 | 21.63530733 | 1.993493444 | 0.0003922998033902135 | 0.0003869156923495736 | 0.0003977234109569457 |
Temperature Profiles

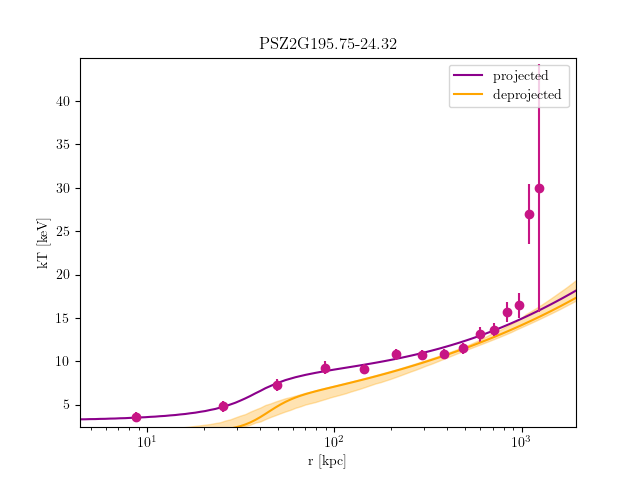

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G195.75-24.32_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 10.633771527816776 | 3.603869572 | 3.261696142 | 3.981458234 | 0.2514533672 | 0.09961834008 | 0.4344905487 | 2.880967902e-05 | 2.666220092e-05 | 3.102586065e-05 |
| 10.633771527816776 | 20.147084757313834 | 4.819657379 | 4.418205099 | 5.290276611 | 0.3011349508 | 0.1701537537 | 0.4549956679 | 4.762910073e-05 | 4.52590848e-05 | 4.999492955e-05 |
| 20.147084757313834 | 39.77150085987446 | 7.26169196 | 6.810810601 | 7.802212568 | 0.4526529739 | 0.3439659074 | 0.5725211902 | 0.0001308476061 | 0.0001271559917 | 0.0001344839086 |
| 39.77150085987446 | 68.75964931917407 | 9.277215035 | 8.776768735 | 9.869093773 | 0.2967130929 | 0.2187574994 | 0.379258264 | 0.0003494213111 | 0.0003432069994 | 0.0003555711316 |
| 68.75964931917407 | 106.36415961888817 | 9.081553132 | 8.713839325 | 9.484437793 | 0.3405931982 | 0.2792081407 | 0.4047156922 | 0.0005911301657 | 0.000582927684 | 0.0005992236997 |
| 106.36415961888817 | 151.83766124269198 | 10.7827592 | 10.35876763 | 11.22779151 | 0.2310847729 | 0.1756008652 | 0.2880747141 | 0.0008703767589 | 0.0008603601086 | 0.0008804389721 |
| 151.83766124269198 | 204.43278367426123 | 10.72739328 | 10.34759865 | 11.13756139 | 0.2621959917 | 0.2121285421 | 0.3136712215 | 0.001143465222 | 0.001131673856 | 0.001155226216 |
| 204.43278367426123 | 263.40215639727114 | 10.83912834 | 10.49426099 | 11.22477857 | 0.4894158777 | 0.4350394721 | 0.5456153528 | 0.001215641808 | 0.001202978606 | 0.001228341045 |
| 263.40215639727114 | 327.9984088953972 | 11.52516726 | 11.09955246 | 11.98967455 | 0.4180559239 | 0.3631693168 | 0.4725320402 | 0.001424308832 | 0.001409617101 | 0.001439487414 |
| 327.9984088953972 | 397.47417065231497 | 13.08946678 | 12.44326185 | 13.95761078 | 0.4466462666 | 0.3757904583 | 0.5191180832 | 0.001250429679 | 0.001229254164 | 0.001282382812 |
| 397.47417065231497 | 471.08207115169944 | 13.66178189 | 13.04080438 | 14.37313918 | 0.9471848951 | 0.838498119 | 1.063607891 | 0.0009172248302 | 0.0008990611053 | 0.0009326765248 |
| 471.08207115169944 | 548.0747398772264 | 15.72464774 | 14.74095433 | 16.8700572 | 1.113215092 | 0.9495546201 | 1.288831967 | 0.0007343234604 | 0.0007174228991 | 0.0007515054735 |
| 548.0747398772264 | 627.7048063125716 | 16.43682287 | 15.20214803 | 17.88532035 | 2.272409965 | 1.964924118 | 2.625353548 | 0.0005210970286 | 0.0005033960422 | 0.0005387044578 |
| 627.7048063125716 | 709.2248999414102 | 26.97835421 | 22.2027732 | 29.06093079 | 4.999999998 | 4.363040695 | 0 | 0.0003746427812 | 0.0003699071933 | 0.0003940433994 |
| 709.2248999414102 | 791.8876502474169 | 29.99999984 | 28.59678699 | 0 | 5 | 4.822438033 | 0 | 0.0003215088456 | 0.0003163278551 | 0.0003259612665 |
