Cluster
PSZ2G200.63-64.71
Emission Measure Profiles

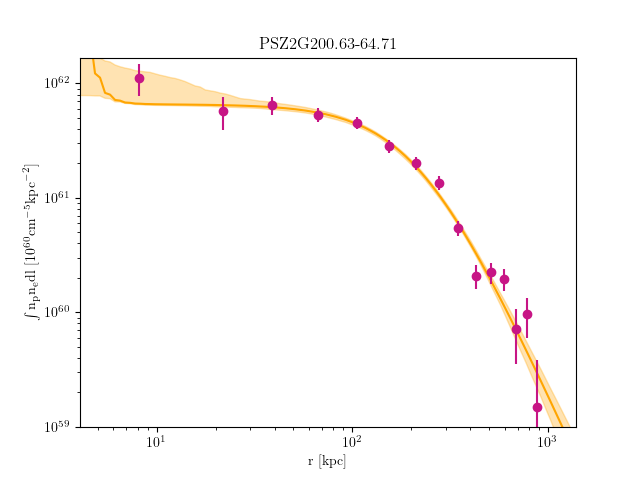

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G200.63-64.71_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 19.48971711149334 | 3.038273237 | 0.5034517776 | 5.123329854000267e-05 | 3.7297676310001944e-05 | 6.791765949000354e-05 |
| 19.48971711149334 | 32.81076213403655 | 3.038273237 | 0.5034517776 | 4.8505145470002835e-05 | 3.492590092000204e-05 | 6.48798582100038e-05 |
| 32.81076213403655 | 60.289908897834664 | 3.038273237 | 0.5034517776 | 0.0001978536844000034 | 0.00016863474960000286 | 0.00022992602490000394 |
| 60.289908897834664 | 100.88064962412435 | 3.073737043 | 0.5079526819 | 0.0004173822597000167 | 0.00037449166490001495 | 0.0004630480426000185 |
| 100.88064962412435 | 153.5364765341423 | 3.309071644 | 0.3649337023 | 0.0007275646350000405 | 0.0006697748723000371 | 0.0007881813401000438 |
| 153.5364765341423 | 217.21088184912503 | 3.368893237 | 0.248009991 | 0.0008006919069000437 | 0.00073392006470004 | 0.0008706826192000475 |
| 217.21088184912503 | 290.8573577903093 | 3.326552212 | 0.1474066056 | 0.0009023750691000513 | 0.0008230001544000467 | 0.000985510863300056 |
| 290.8573577903093 | 373.4293965789318 | 3.219854483 | 0.06503273206 | 0.000896684799100061 | 0.0008113599646000552 | 0.0009861686260000673 |
| 373.4293965789318 | 463.88049043622897 | 3.070671742 | 1 | 0.0004959058137000217 | 0.0004374447194000191 | 0.0005573929305000242 |
| 463.88049043622897 | 561.164131583438 | 2.895098999 | 1 | 0.0002504009758725912 | 0.0001981749070913653 | 0.0003058575052518655 |
| 561.164131583438 | 664.2338122417948 | 2.707520516 | 1 | 0.0003404797932771157 | 0.00027964927607100403 | 0.0004046963969807981 |
| 664.2338122417948 | 772.0430246325362 | 2.58490348 | 1 | 0.00036646734680269 | 0.00029468555990178253 | 0.00044237645165082174 |
| 772.0430246325362 | 883.5452609768994 | 2.58490348 | 1 | 0.00015759367285463305 | 8.255625652633743e-05 | 0.00023834454141018218 |
| 883.5452609768994 | 997.6940134961209 | 2.58490348 | 1 | 0.000247585857148616 | 0.0001582546904064668 | 0.00034328603989346363 |
| 997.6940134961209 | 1113.4427744114366 | 2.58490348 | 1 | 4.361965681837894e-05 | 0.0 | 0.00013901474394783706 |
Temperature Profiles

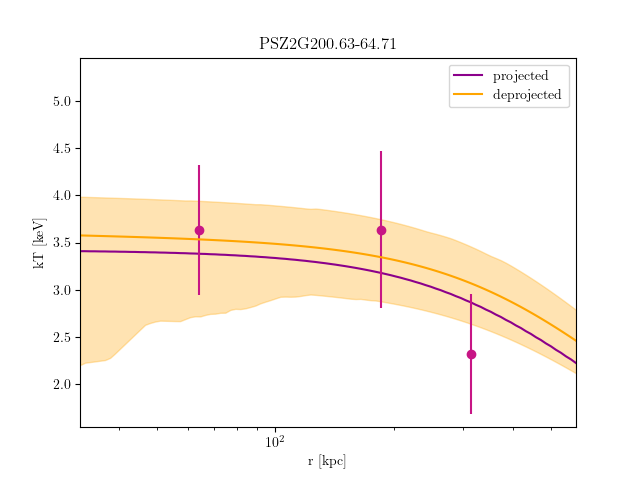

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G200.63-64.71_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 153.53647653413856 | 3.634057746 | 3.169753627 | 4.136578735 | 0.448129718 | 0.2165640519 | 0.780197018 | 0.001365274813 | 0.001206690461 | 0.001536121989 |
| 153.53647653413856 | 290.8573577903023 | 3.63823342 | 3.08764708 | 4.44261399 | 0.1397123038 | 0 | 0.3982773382 | 0.00168690417 | 0.001479473712 | 0.001926080087 |
| 290.8573577903023 | 463.88049043621766 | 2.320401832 | 1.973927594 | 2.783776038 | 6.428730567e-18 | 0 | 0.03183033788 | 0.002013019111 | 0.001749877974 | 0.002317243529 |
