Cluster
PSZ2G208.80-30.67
Emission Measure Profiles

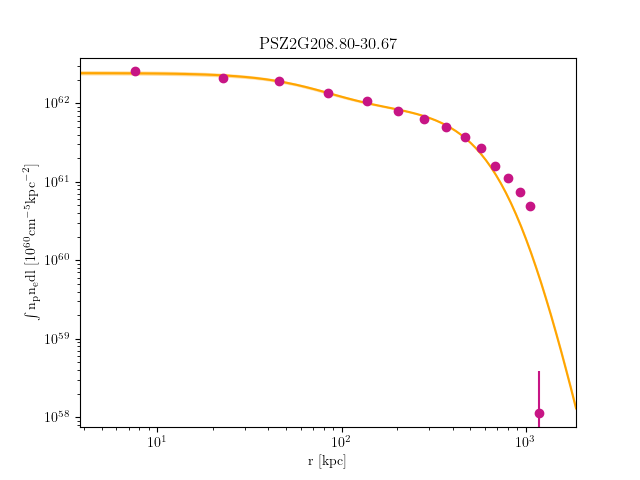

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G208.80-30.67_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.960220501549577 | 6.243230919 | 0.2394604689 | 1.5095370670000767e-05 | 1.3481448280000685e-05 | 1.6814985180000854e-05 |
| 7.960220501549577 | 15.820908373215012 | 6.243230919 | 0.2394604689 | 3.6187429100001656e-05 | 3.370785483000154e-05 | 3.877354420000177e-05 |
| 15.820908373215012 | 32.036227466000675 | 6.518826501 | 0.2125351706 | 0.00013870981160000624 | 0.00013346419740000598 | 0.00014408013690000648 |
| 32.036227466000675 | 55.988638315832446 | 7.605490588 | 0.1722808491 | 0.0002670183432000135 | 0.0002588035231000131 | 0.0002753890195000139 |
| 55.988638315832446 | 87.06060145863624 | 8.453584858 | 0.1391423799 | 0.00044783143570001425 | 0.0004372517912000139 | 0.0004585633462000146 |
| 87.06060145863624 | 124.63457743033786 | 8.31487069 | 0.1130085919 | 0.000585014898719668 | 0.0005738500619728767 | 0.0005963056342929592 |
| 124.63457743033786 | 168.0930267668633 | 7.763259969 | 0.09296996714 | 0.0007494971050623763 | 0.0007368866139485423 | 0.0007622908582623966 |
| 168.0930267668633 | 216.81841000413826 | 6.850591202 | 0.07501695339 | 0.0008838466046563947 | 0.0008697440031407063 | 0.0008981379584966411 |
| 216.81841000413826 | 270.1931876780887 | 5.637266976 | 0.05956397204 | 0.0008962022015037308 | 0.0008813841492269778 | 0.0009112170549119458 |
| 270.1931876780887 | 327.59982032464063 | 4.235126661 | 0.04606244583 | 0.0008601662822610378 | 0.0008446288933156791 | 0.000875917115362319 |
| 327.59982032464063 | 388.42076847971975 | 2.977742837 | 0.03310088084 | 0.0006377892531895566 | 0.0006213068965463664 | 0.0006544618210146684 |
| 388.42076847971975 | 452.038492679252 | 2.028643467 | 0.02117377487 | 0.0005579832561984868 | 0.0005397725411681195 | 0.0005764262100680505 |
| 452.038492679252 | 517.8354534591633 | 1.360601301 | 0.01212431634 | 0.0004395010897532819 | 0.00041862281223802625 | 0.0004606817199323255 |
| 517.8354534591633 | 585.1941113553796 | 0.9302131916 | 0.00299593623 | 0.00033900148284203953 | 0.00031118737937716357 | 0.00036727454012802 |
| 585.1941113553796 | 653.4969269038264 | 0.6352975596 | 1 | 8.823373648420377e-07 | 0.0 | 4.399707240902762e-06 |
Temperature Profiles

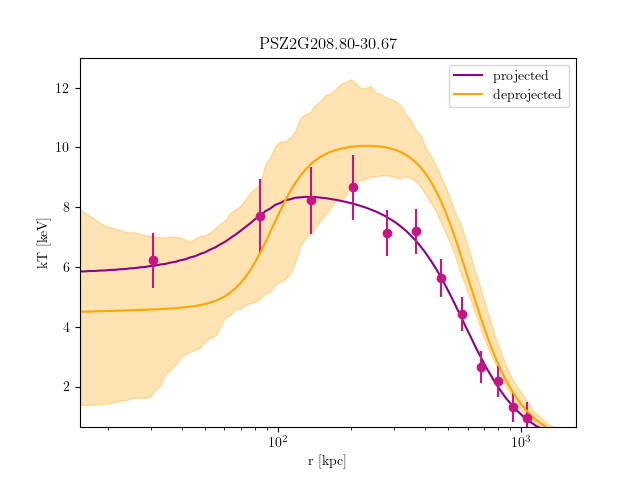

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G208.80-30.67_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 32.03622746599989 | 6.221613715 | 5.53587846 | 7.114368064 | 0.2797327426 | 0.1305011532 | 0.4576890386 | 0.0001938947309 | 0.0001840047903 | 0.0002036999057 |
| 32.03622746599989 | 55.98863831583109 | 7.703416509 | 6.753323256 | 9.016998845 | 0.1460761748 | 0 | 0.3481637876 | 0.0002682221173 | 0.0002548854594 | 0.0002812370139 |
| 55.98863831583109 | 87.06060145863412 | 8.22743232 | 7.261433742 | 9.257856951 | 7.413053949e-05 | 0 | 0.1254847854 | 0.0004610835937 | 0.000446176182 | 0.0004727067234 |
| 87.06060145863412 | 124.63457743033482 | 8.671313805 | 7.771784101 | 9.713380022 | 0.1307182615 | 0.004573268168 | 0.2654332531 | 0.0005799714402 | 0.0005619788475 | 0.0005977313678 |
| 124.63457743033482 | 168.0930267668592 | 7.127245852 | 6.590842762 | 7.780511398 | 0.1274581126 | 0.03475209649 | 0.2287061275 | 0.0007486976345 | 0.0007280551036 | 0.0007689190607 |
| 168.0930267668592 | 216.81841000413294 | 7.196589421 | 6.66364392 | 7.809382689 | 0.07140064694 | 0 | 0.1661021854 | 0.0008794811334 | 0.0008571713269 | 0.0009014342485 |
| 216.81841000413294 | 270.1931876780821 | 5.645408776 | 5.258335236 | 6.06634575 | 0.01192502469 | 0 | 0.09576532549 | 0.0008956160689 | 0.0008707158357 | 0.0009149234261 |
| 270.1931876780821 | 327.5998203246327 | 4.427228628 | 4.137173809 | 4.674581903 | 2.575796987e-15 | 0 | 0.03004644498 | 0.0008559097152 | 0.000835663616 | 0.0008748163761 |
| 327.5998203246327 | 388.4207684797103 | 2.669219283 | 2.451047322 | 2.903621831 | 0.08128890867 | 0 | 0.1798759524 | 0.0006315103881 | 0.0005875062331 | 0.0006796006091 |
| 388.4207684797103 | 452.0384926792409 | 2.173409836 | 2.011151995 | 2.408169148 | 0.01172352798 | 0 | 0.08669165965 | 0.000541300411 | 0.0004929585349 | 0.0005731779029 |
| 452.0384926792409 | 517.8354534591507 | 1.311638484 | 1.214677019 | 1.450309692 | 2.85912568e-12 | 0 | 0.01110462303 | 0.0004650738983 | 0.0004214617132 | 0.0005005170985 |
| 517.8354534591507 | 585.1941113553654 | 0.9666198003 | 0.8900518348 | 1.150309315 | 1.078423488e-05 | 0 | 0.03697434992 | 0.0003312298185 | 0.0002382747399 | 0.0003882831493 |
